Pressure relief valves Walvoil VMD

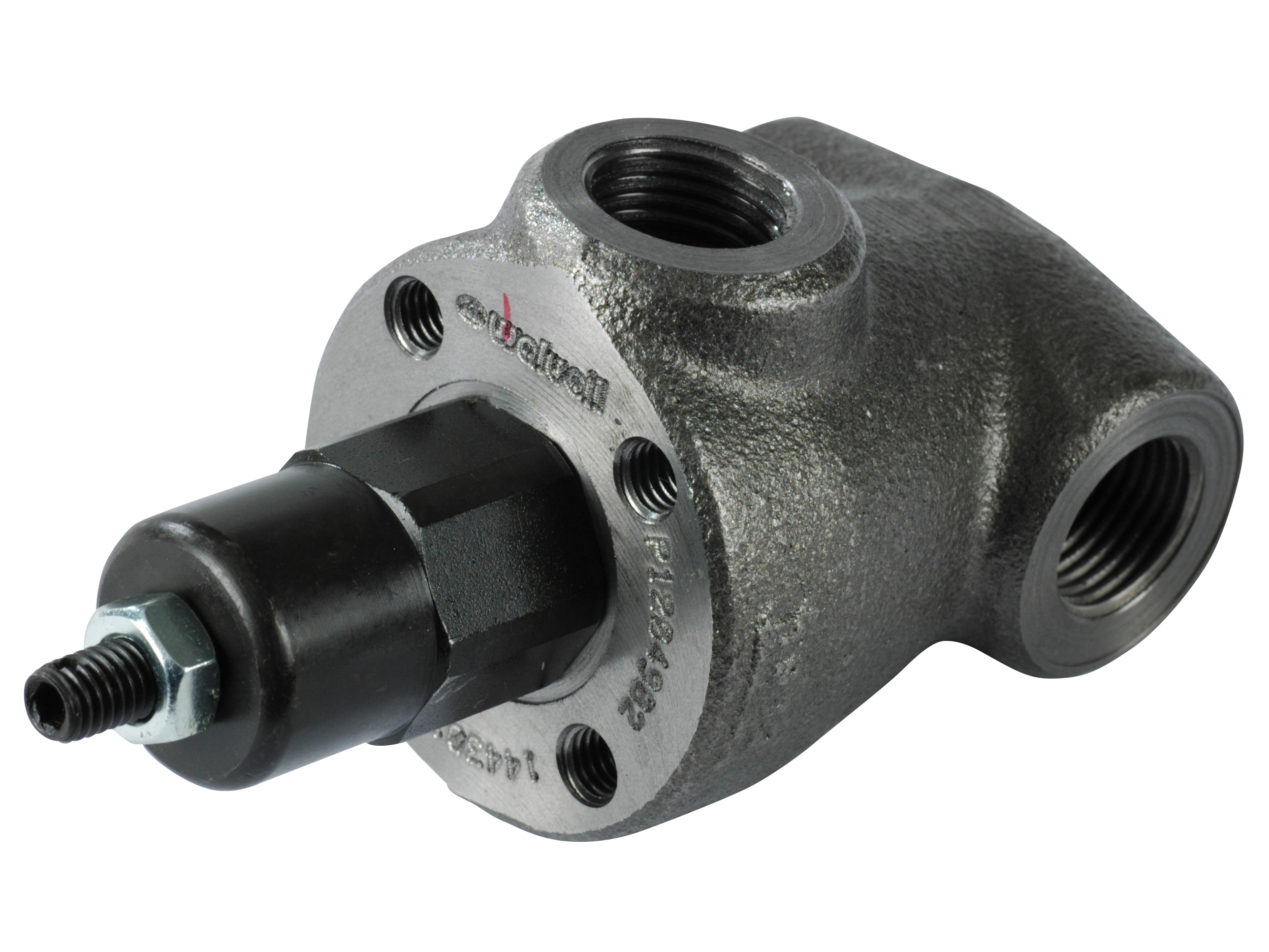

VMD5/3(KG2) 3/8" Walvoil 40-80 bar

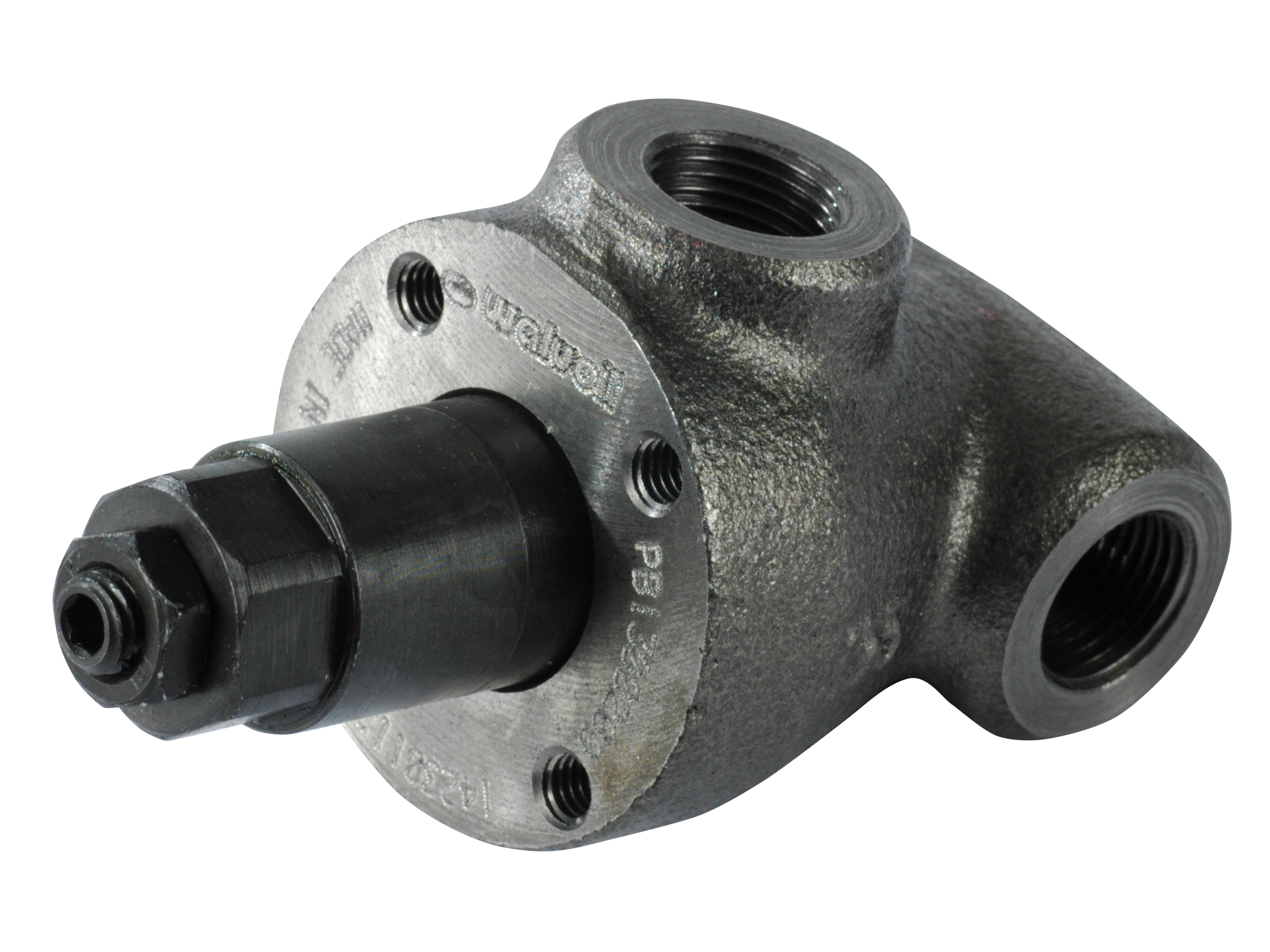

VMD5/3(KG3-120)-<CVN> 3/8 63-200 bar

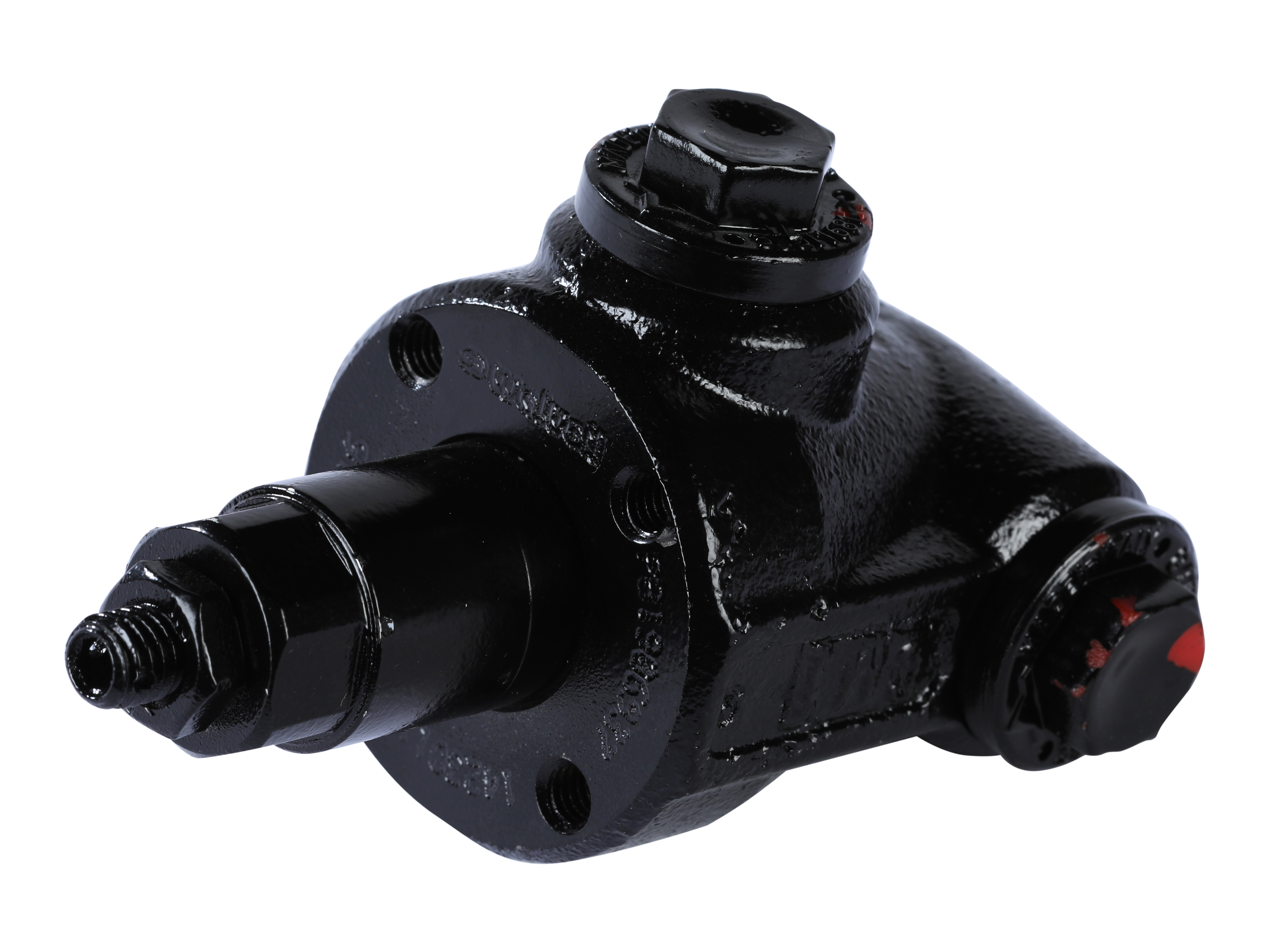

VMD5/3(KG3-120)-<CVN> 3/8"- Z= 180 bar

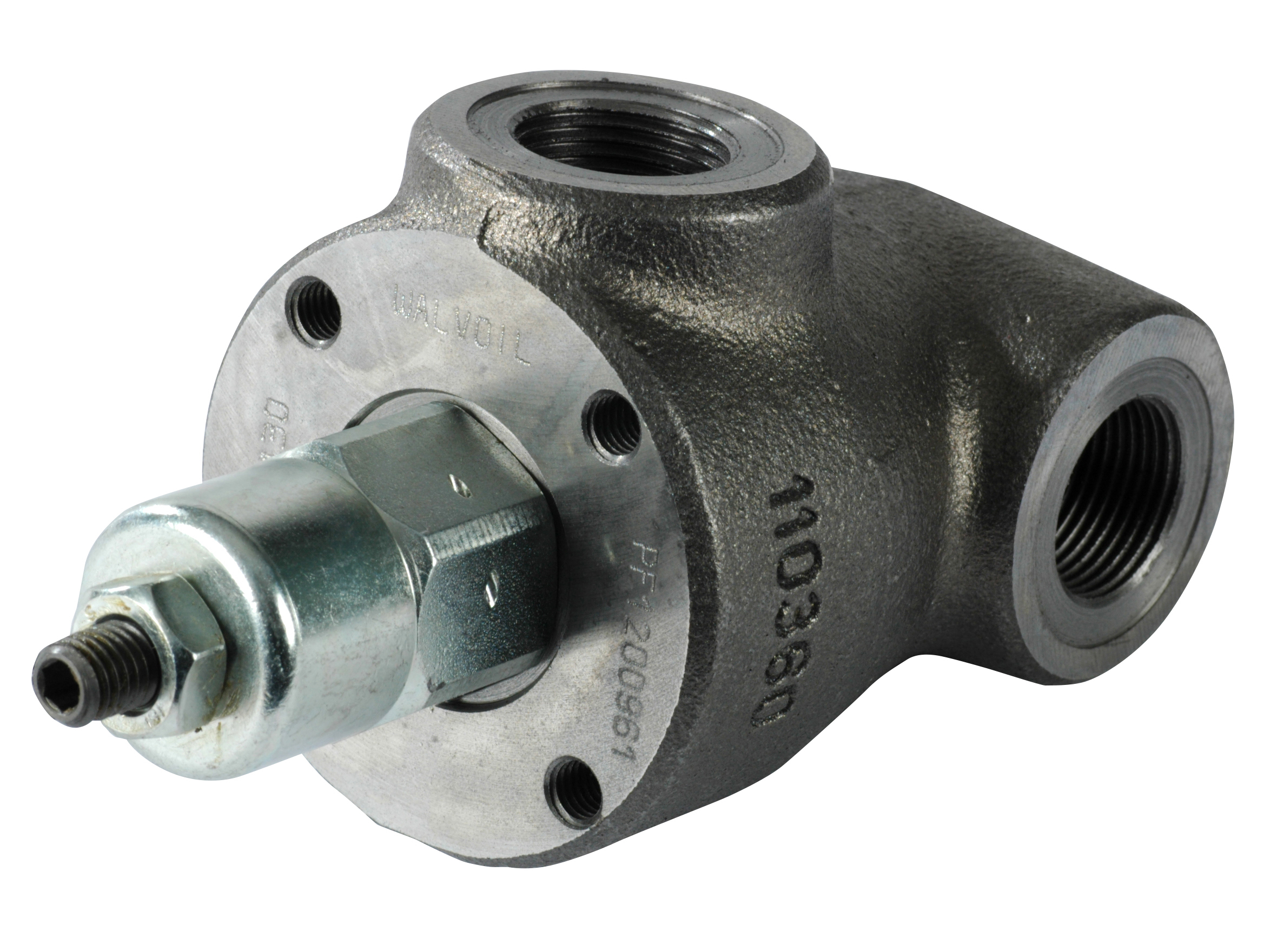

VMD10/3(KG3-120) 1/2 BSP 63-200 bar Walvoil

VMD20/3(KG3-120) 3/4 BSP 63-200 bar Walvoil

VMD25/3(YG3-120) 1 BSP 125-220 bar Walvoil

SELECT VARIANT

Partnumber	Description	Flow rate nominal LMin	Pressure setting min.	Pressure setting max.	Pressure max.
142301120	VMD5/3(KG2) 3/8" Walvoil 40-80 bar	35 lpm	40 bar	80 bar	350 bar
142301131	VMD5/3(KG3-120)-<CVN> 3/8 63-200 bar	35 lpm	63 bar	200 bar	350 bar
142301135	VMD5/3(KG3-120)-<CVN> 3/8"- Z= 180 bar	35 lpm			120 bar
144301130	VMD10/3(KG3-120) 1/2 BSP 63-200 bar Walvoil	60 lpm	63 bar	200 bar	350 bar
146301130	VMD20/3(KG3-120) 3/4 BSP 63-200 bar Walvoil	100 lpm	63 bar	200 bar	350 bar
147302130	VMD25/3(YG3-120) 1 BSP 125-220 bar Walvoil	240 lpm	125 bar	220 bar	200 bar

Brand Name

Walvoil

Contamination level max.

18/16/13 - ISO 4406

Material

Steel

Oil viscocity recommended

12 - 400
