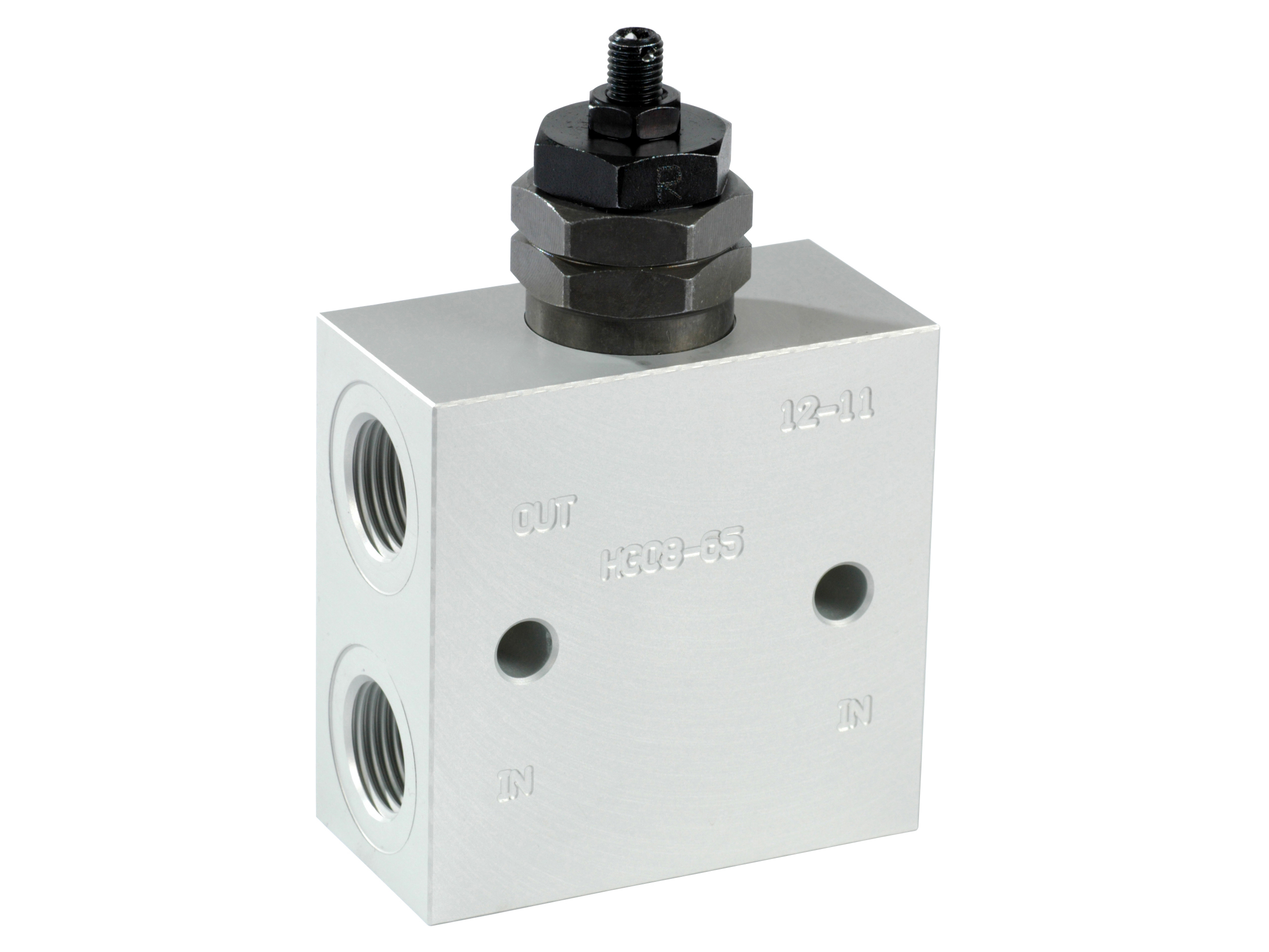

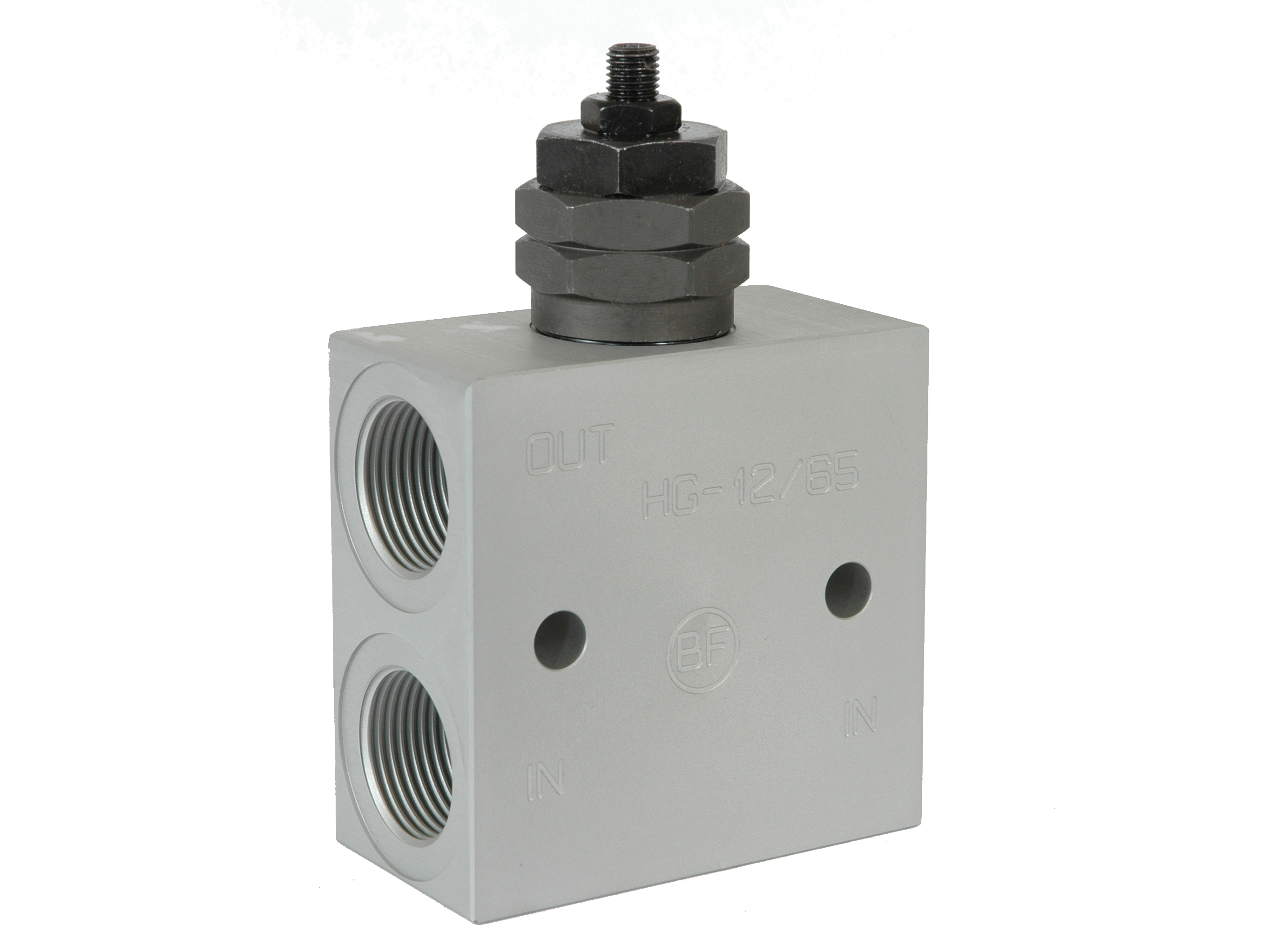

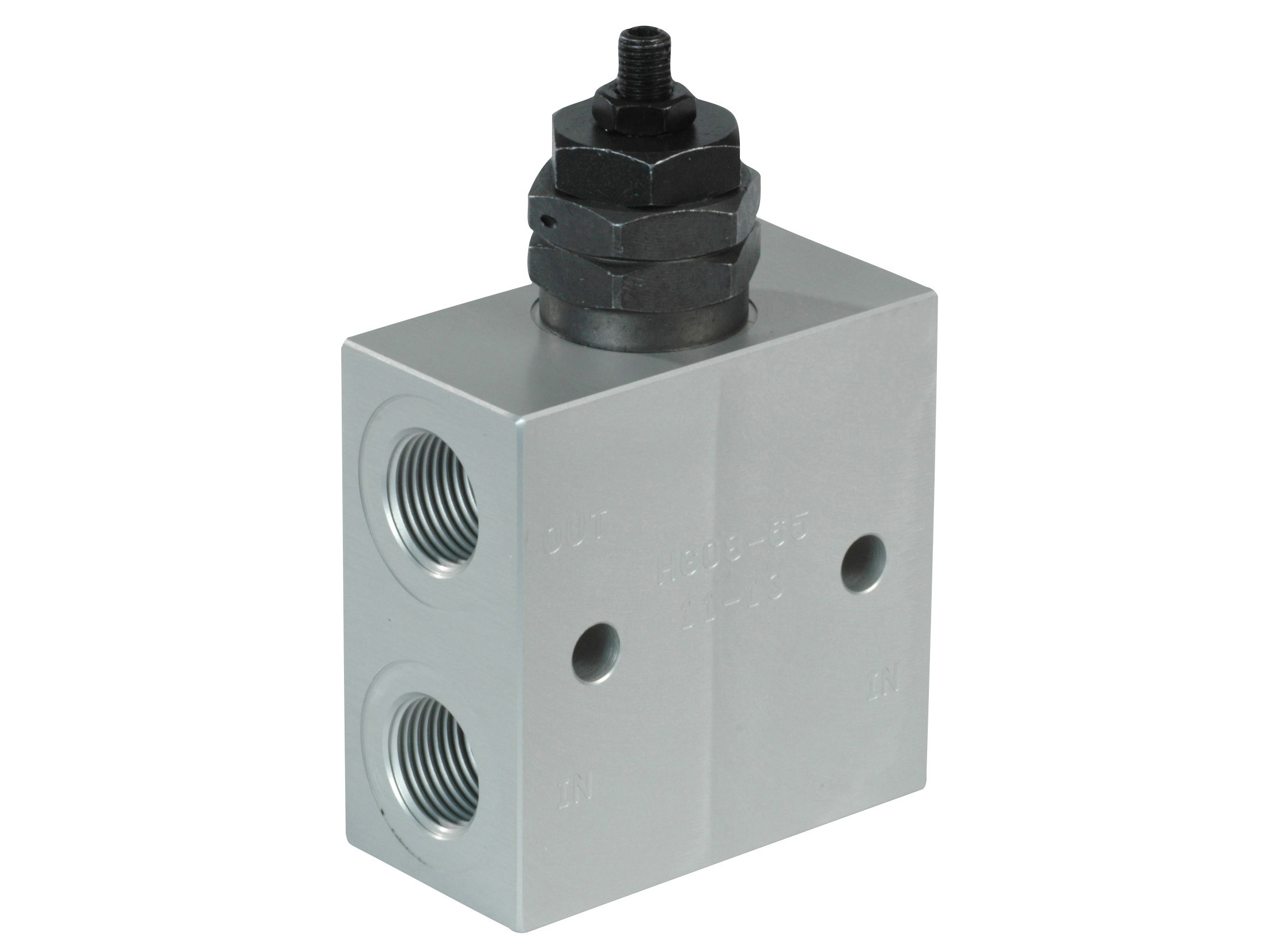

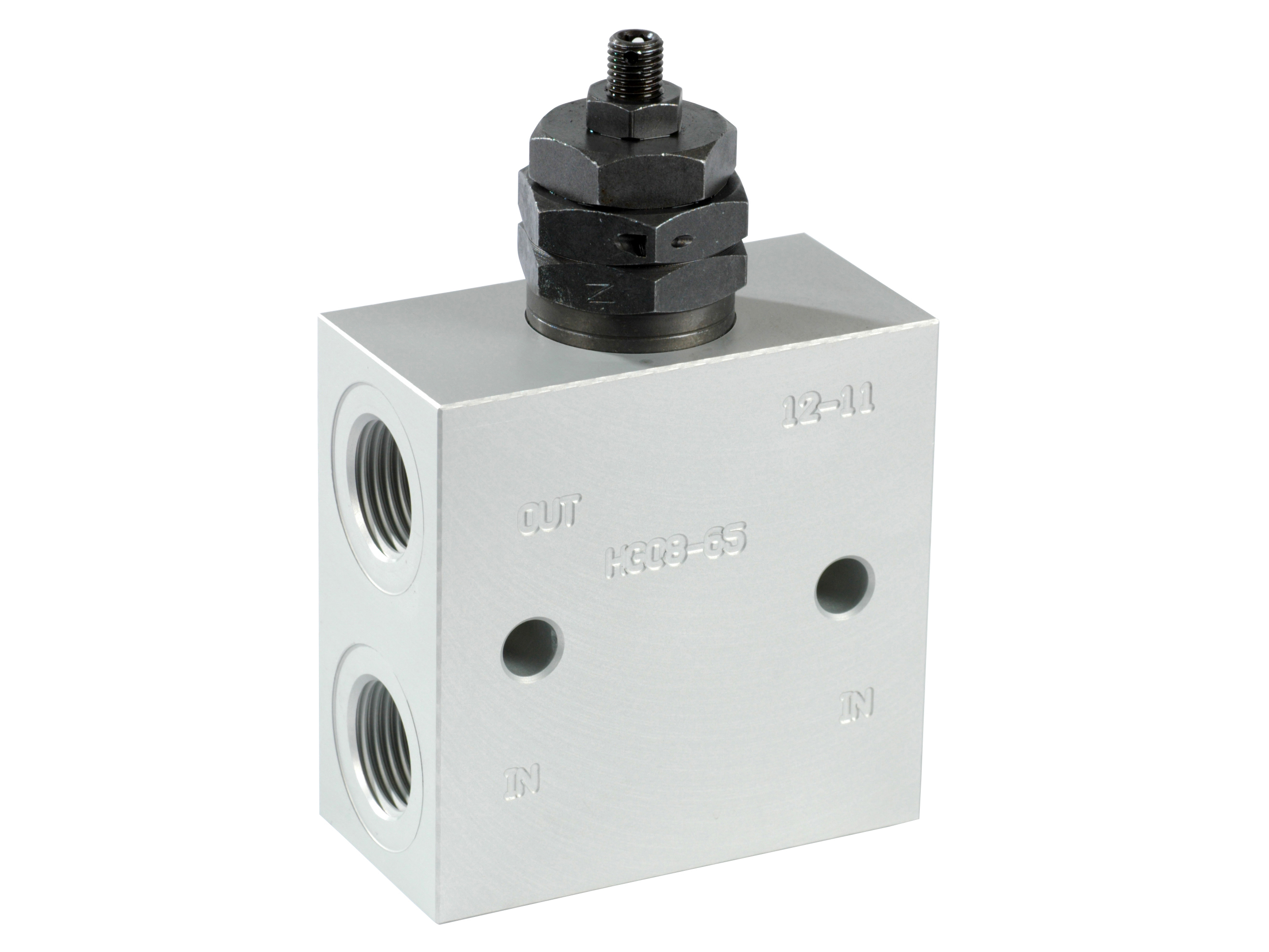

Pressure relief valves block type HG

SELECT VARIANT
Partnumber Description Flödeshastighet nominell LMin Tryckinställning min. Tryckinställning max. Tryck max.
HG06-35B 3/8 relief valve Block With VLP35S-B, 15-100 bar 35 lpm 15 bar 100 bar 210 bar
HG06-35N 3/8 relief valve Block With VLP35S-N, 30-280 bar 35 lpm 30 bar 280 bar 210 bar
HG06-35R 3/8 relief valve Block With VLP35S-R, 80-380 bar 35 lpm 80 bar 380 bar 210 bar
HG08-35B 1/2 relief valve Block With VLP35S-BZ, 15-100 bar 35 lpm 15 bar 100 bar 210 bar
HG08-35N 1/2 relief valve Block With VLP35S-NZ, 30-280 bar 35 lpm 30 bar 280 bar 210 bar
HG08-35R 1/2 relief valve Block With VLP35S-RZ, 80-380 bar 35 lpm 80 bar 380 bar 210 bar
HG08-65B Pressure relief valve 1/2 With VLP65S-B, 15-100 bar 65 lpm 15 bar 100 bar 210 bar
HG08-65N Pressure relief valve 1/2 With VLP65S-N, 30-280 bar 65 lpm 30 bar 280 bar 210 bar
HG08-65R Pressure relief valve 1/2 With VLP65S-R, 80-380 bar 65 lpm 80 bar 380 bar 210 bar
HG12-65B 3/4 pressure relief valve With VLP65S-B, 15-100 bar 65 lpm 15 bar 100 bar 210 bar
HG12-65N 3/4 pressure relief valve With VLP65S-N, 30-280 bar 65 lpm 30 bar 280 bar 210 bar
HG12-65R 3/4 pressure relief valve With VLP65S-R, 80-380 bar 65 lpm 80 bar 380 bar 210 bar
Märke namn
Walvoil

Tillverkningsmaterial
Aluminium

Tryck max.
210
