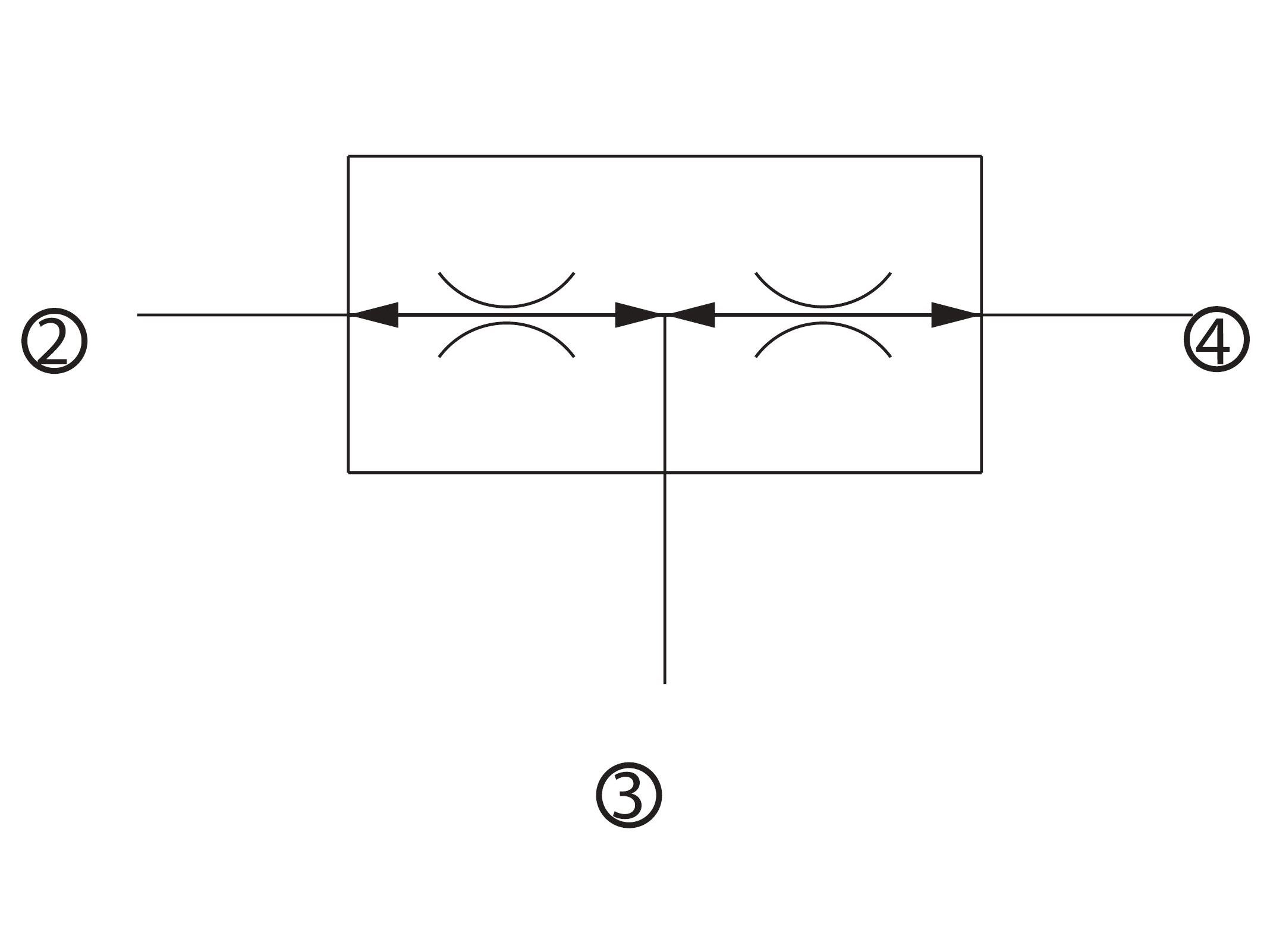

Flow divider valves Danfoss CP341

Flow Divider ventil 45l/m 1:1 CP341-1-B-0-0707

Flow Divider ventil 76l/m 1:1 CP341-1-B-0-1010

Flow Divider ventil 57l/m 1:2 CP341-1-B-0-0510

Flow Divider ventil 38l/m 1:1 CP341-1-B-0-0505

SELECT VARIANT

Partnumber	Description	Pressure max.	Flow min. regulated	Flow max. regulated	Cavity
131170	Flow Divider ventil 45l/m 1:1 CP341-1-B-0-0707	210 bar	45 lpm	45 lpm	CP12-4
131171	Flow Divider ventil 76l/m 1:1 CP341-1-B-0-1010	210 bar	76 lpm	76 lpm	CP12-4
133037	Flow Divider ventil 57l/m 1:2 CP341-1-B-0-0510	210 bar	57 lpm	57 lpm	CP12-4
83010220	Flow Divider ventil 38l/m 1:1 CP341-1-B-0-0505	210 bar	38 lpm	38 lpm	CP12-4

Brand Name

Danfoss

Cavity

CP12-4

Contamination level max.

20/18/14 - ISO 4406

Flow rate nominal LMin

Oil viscocity recommended

12 - 54

Pressure compensated

Yes

Pressure max.

210

Sealing material

NBR

Temperature max.

+100

Temperature min.

-40

Torque tightening

68 - 75
