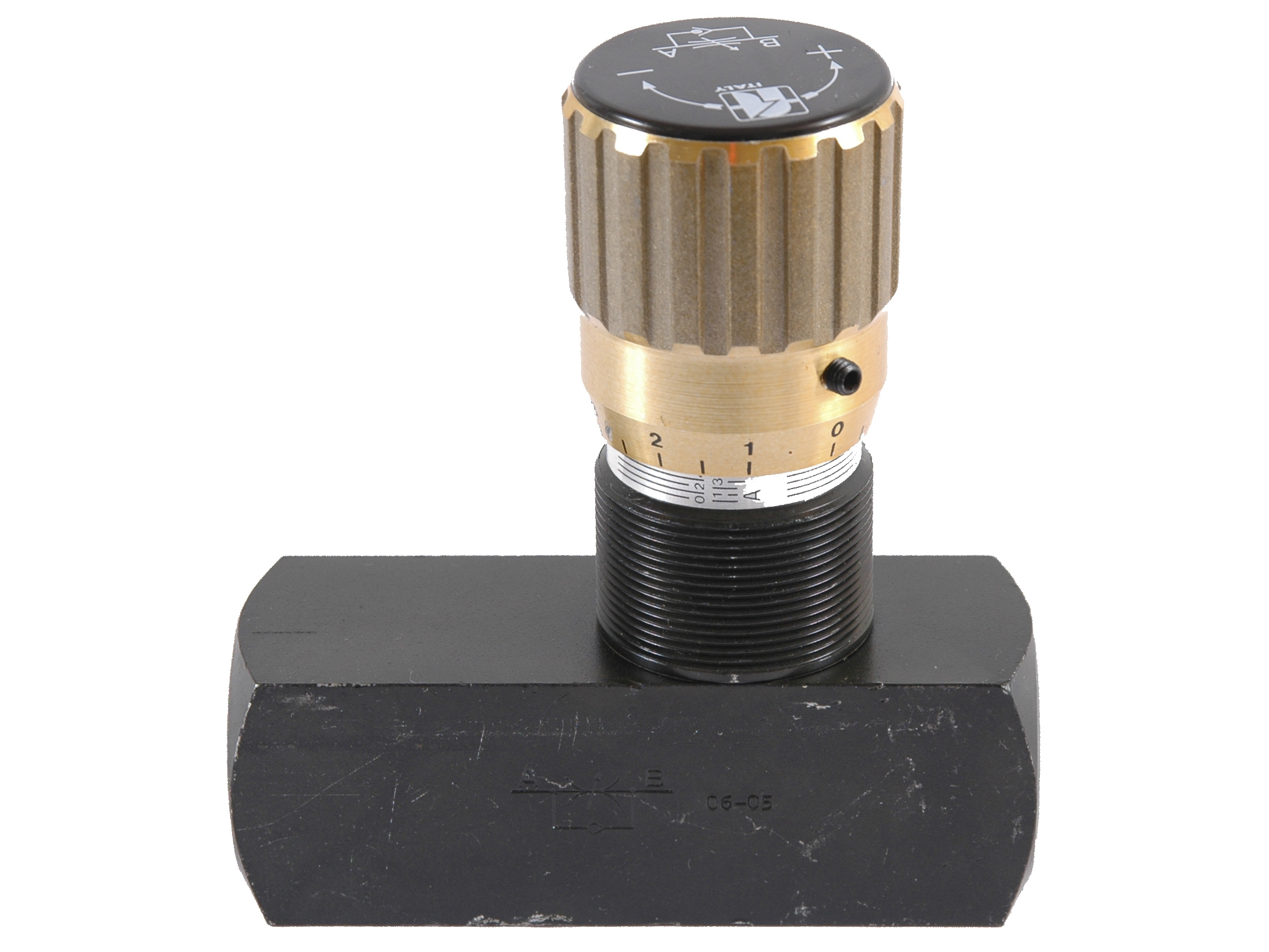

Throttle-/check valves Tognella FT257/5

1 flow control valve, Togne

1/2 flow control valve, Tognell

1/4 flow control valve, tog

1/8 flow control valve, tog

3/4 flow control valve, tog

3/8 flow control valve, tog

SELECT VARIANT

Partnumber	Description	Thread	Flow rate nominal LMin	Pressure max.
FT257/5-1	1 flow control valve, Togne	G 1 BSP	150 lpm	320 bar
FT257/5-1/2	1/2 flow control valve, Tognell	G 1/2 BSP	70 lpm	400 bar
FT257/5-1/4	1/4 flow control valve, tog	G 1/4 BSP	20 lpm	400 bar
FT257/5-1/8	1/8 flow control valve, tog	G 1/8 BSP	10 lpm	400 bar
FT257/5-3/4	3/4 flow control valve, tog	G 3/4 BSP	110 lpm	400 bar
FT257/5-3/8	3/8 flow control valve, tog	G 3/8 BSP	40 lpm	400 bar

Brand Name

Tognella

Material

Steel

Pressure compensated

Temperature max.

+100

Temperature min.

-20

Valve type

Throttle/checkvalve
