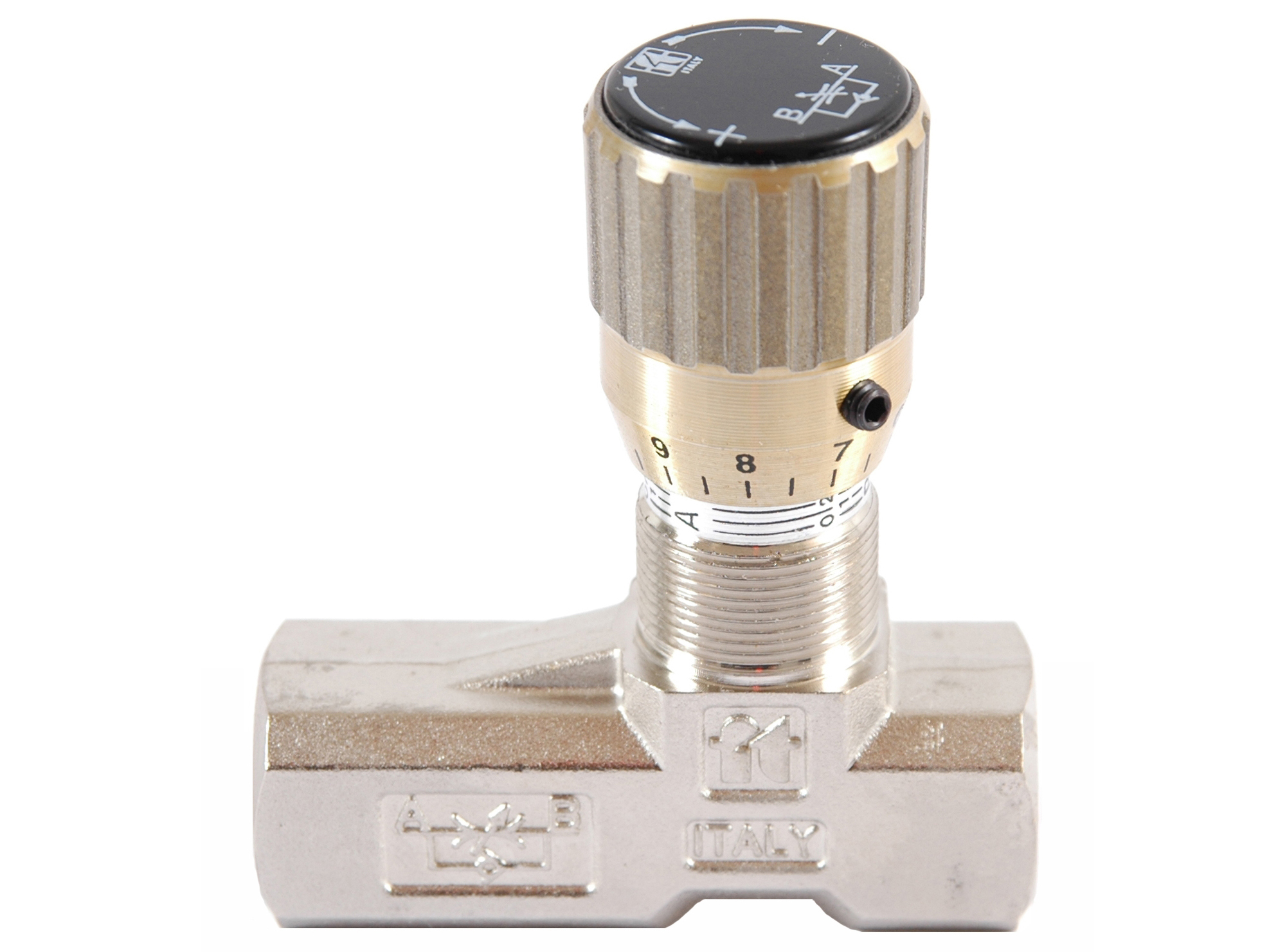

Throttle-/check valves Tognella FT1251/5

Throttle-/check valves Tognella FT1251/5

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Flow rate nominal LMin Pressure max.
FT1251/5-12 Flow control valve 1/2 BSP female Tognella maks. 210 bar G 1/2 BSP 60 lpm 210 bar
FT1251/5-14 1/4 flow control valve, tog FT1251/5-01-14 G 1/4 BSP 15 lpm 210 bar
FT1251/5-38 3/8 flow control valve, tog FT1251/5-01-38 G 3/8 BSP 30 lpm 210 bar
Brand Name
Tognella
Material
Brass
Pressure compensated
No
Pressure max.
210
Sealing material
NBR
Surface treatment
Nickel-plated
Temperature max.
+100
Temperature min.
-20
Valve type
Throttle/checkvalve
