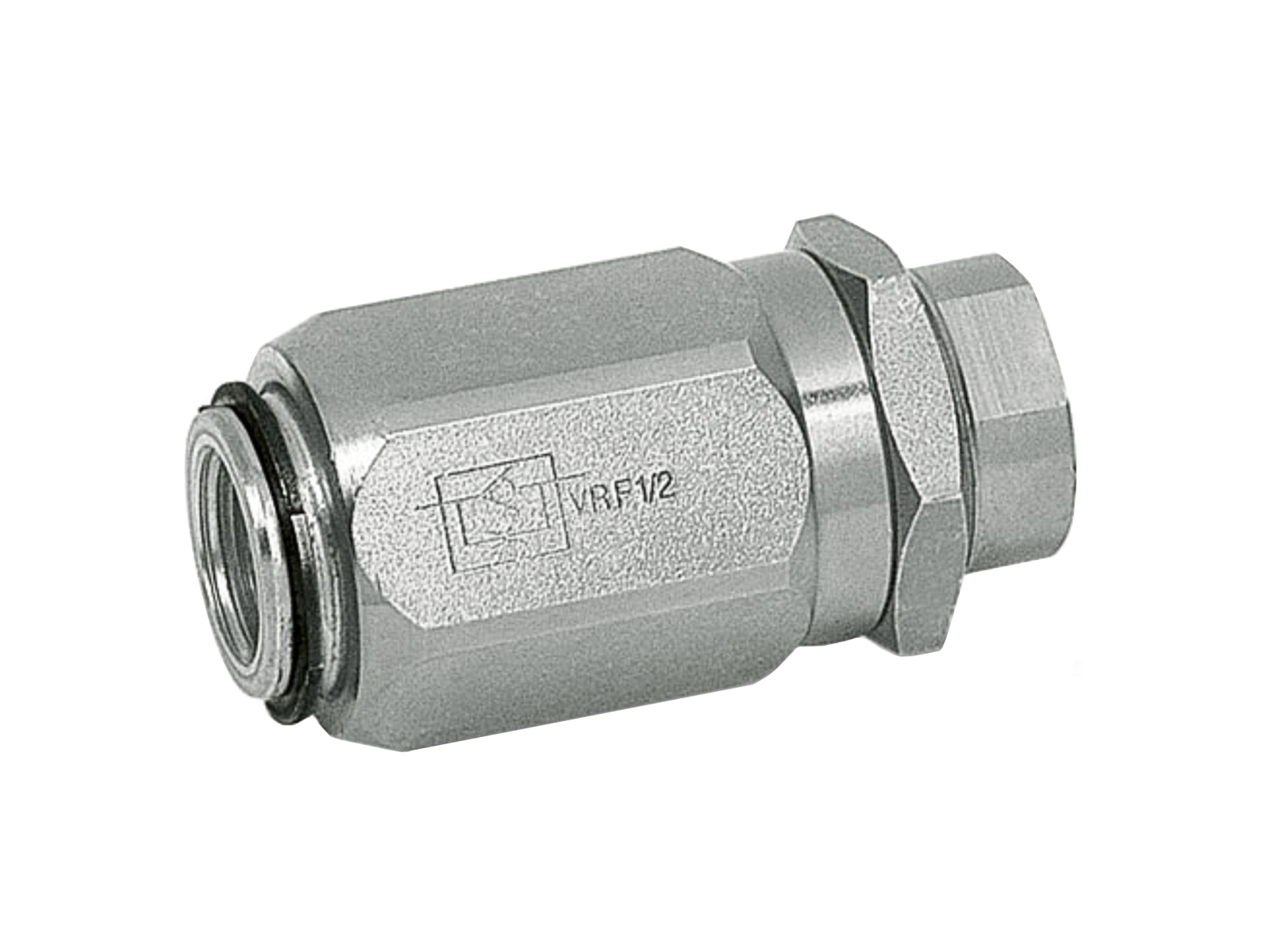

Throttle-/check valves OM VRF

Throttle-/check valves OM VRF

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Flow rate nominal LMin Pressure max.
VRF-12 1/2" Throttle/Check valve G 1/2 BSP 70 lpm 300 bar
VRF-34 3/4" Throttle/Check valve G 3/4 BSP 110 lpm 250 bar
VRF-38 3/8" Throttle/Check valve G 3/8 BSP 45 lpm 300 bar
Brand Name
OM Oleodinamica Marchesini
Material
Steel
Oil Temperature Recommended
50
Oil viscocity recommended
30
Pressure compensated
No
Pressure opening
0.5
Sealing material
NBR
Surface treatment
Zinc-plated
Temperature max.
+100
Temperature min.
-30
Valve type
Throttle/checkvalve
