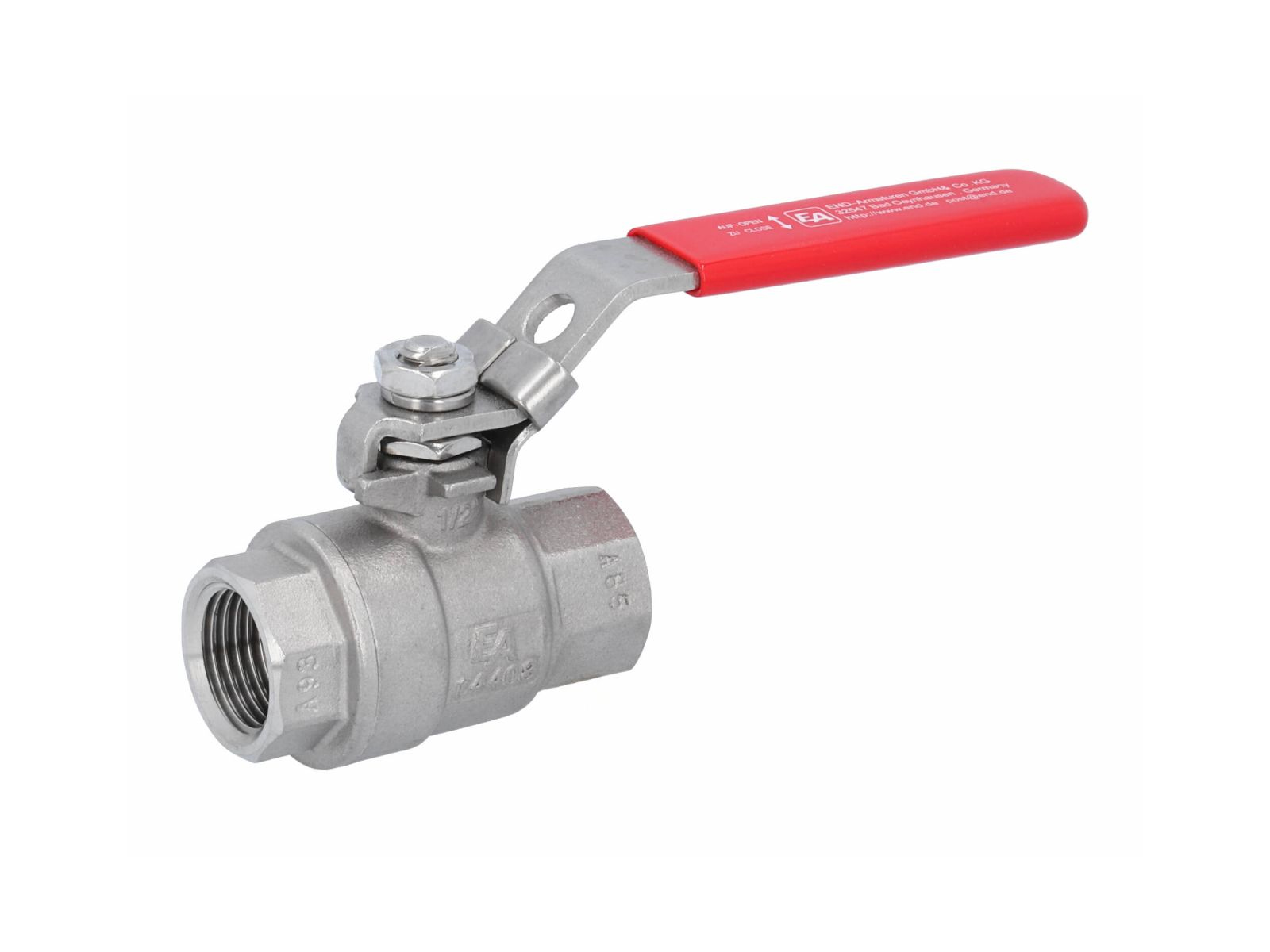

Ball valve 2 way - stainless 70 bar - KH2600 / 9320-SY

SELECT VARIANT
Partnumber Description Thread Pressure max. Diameter inner Material
KH260008 1/4 PN70 ball valve AISI 3 PTFE seating full flow G 1/4 BSP 64 bar 11 mm Stainless steel
KH260010 3/8 PN70 ball valve AISI 3 PTFE seating full flow G 3/8 BSP 64 bar 11.6 mm Stainless steel
KH260015 1/2" PN70 ball valve AISI 3 PTFE seating full flow G 1/2 BSP 64 bar 14.5 mm Stainless steel
KH260020 3/4 PN70 ball valve AISI 3 PTFE seating full flow G 3/4 BSP 64 bar 20 mm Stainless steel
KH260025 1 PN70 ball valve AISI 3 PTFE seating full flow G 1 BSP 64 bar 25 mm Stainless steel
KH260032 1 1/4 PN70 ball valve AISI 3 PTFE seating full flow G 1.1/4 BSP 40 bar 32 mm Stainless steel
KH260040 1 1/2 PN70 ball valve AISI 3 PTFE seating full flow G 1.1/2 BSP 40 bar 38 mm Stainless steel
KH260050 2" PN70 ball valve AISI 3 PTFE seating - full flow G 2 BSP 40 bar 50 mm Stainless steel
KH260065 21/2 PN70 ball valve AISI 3 PTFE seating full flow G 2.1/2 BSP 40 bar 64 mm Stainless steel
KH260080 3 PN70 ball valve AISI 316 PTFE seating full flow G 3 BSP 40 bar 76.5 mm Stainless steel
Activation
Manual

Brand Name
Hydraspecma

Lever
Inclusive

Lever type
Angled

Material
Stainless steel

Material quality
1.4408 / AISI316L

Number of ways/positions
2/2

Sealing material
PTFE (Teflon®)

Temperature max.
+180

Temperature min.
-30

Thread ISO standard
ISO 2999
