    • Ø100 mm pressure gauge with rear connection

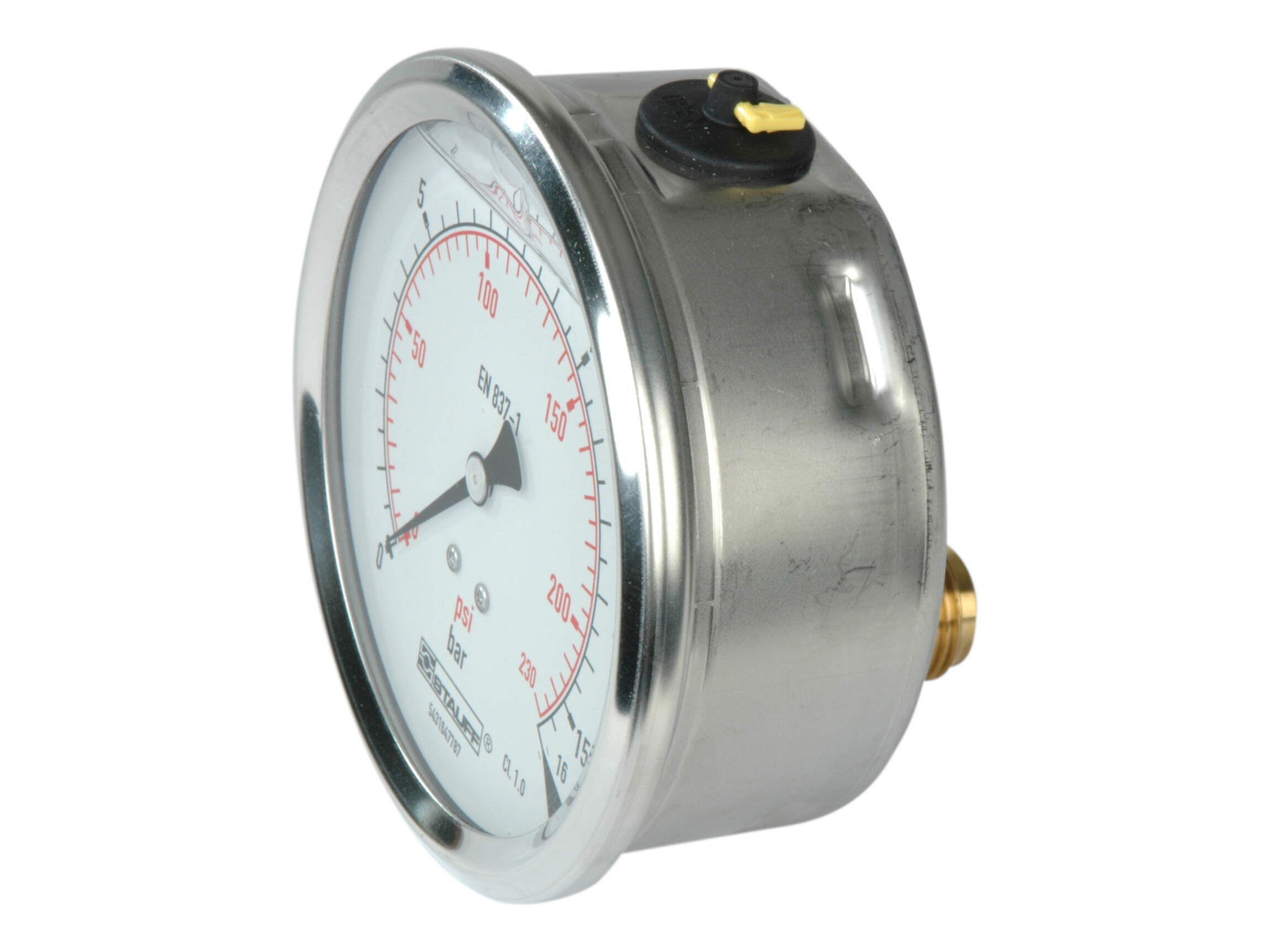

    Ø100 mm pressure gauge with rear connection

    Select variant
    SELECT VARIANT
    SELECT VARIANT
    Partnumber Description Pressure setting min. Pressure setting max. Pressure measurement accuracy Thread
    SPG100-004RB 1/2" pressure gauge. Rear mount. Scale 0-4 bar 0 bar 4 bar ±1,0% FS G 1/2 BSP
    SPG100-010RB 1/2" pressure gauge. Rear mount. Scale 0-10 bar 0 bar 10 bar ±1,0% FS G 1/2 BSP
    SPG100-016RB 1/2" pressure gauge. Rear mount. Scale 0-16 bar 0 bar 16 bar ±1,0% FS G 1/2 BSP
    SPG100-025RB 1/2" pressure gauge. Rear mount. Scale 0-25 bar 0 bar 25 bar ±1,0% FS G 1/2 BSP
    SPG100-040RB 1/2" pressure gauge. Rear mount. Scale 0-40 bar 0 bar 40 bar ±1,0% FS G 1/2 BSP
    SPG100-060RB 1/2" pressure gauge. Rear mount. Scale 0-60 bar 0 bar 60 bar ±1,0% FS G 1/2 BSP
    SPG100-100RB 1/2" pressure gauge. Rear mount. Scale 0-100 bar 0 bar 100 bar ±1,0% FS G 1/2 BSP
    SPG100-160RB 1/2" pressure gauge. Rear mount. Scale 0-160 bar 0 bar 160 bar ±1,0% FS G 1/2 BSP
    SPG100-250RB 1/2" pressure gauge. Rear mount. Scale 0-250 bar 0 bar 250 bar ±1,0% FS G 1/2 BSP
    SPG100-400RB 1/2" pressure gauge. Rear mount. Scale 0-400 bar 0 bar 400 bar ±1,0% FS G 1/2 BSP
    SPG100-600RB 1/2" pressure gauge. Rear mount. Scale 0-600 bar 0 bar 600 bar ±1,0% FS G 1/2 BSP
    SPG100-700RB 1/2" pressure gauge. Rear mount. Scale 0-700 bar 0 bar 700 bar ±1,0% FS G 1/2 BSP
    SPG1001000RB 1/2" pressure gauge. Rear mount. Scale 0-1000 bar 0 bar 1000 bar ±1,0% FS G 1/2 BSP
    SPG100M1-1.5RB 1/2" pressure gauge,rear,-1+1,5 - REPLACED BY SPG100+1.5R 0 bar 1.5 bar ±1,0% FS G 1/2 BSP
    SPG100M1-3RB 1/2" pressure gauge. Rear mount. Scale -1+3 bar 0 bar 3 bar ±1,0% FS G 1/2 BSP
    Brand Name
    Stauff
    Diameter
    100
    Glass type
    Acrylic glass
    Material quality
    1.4301 / AISI304
    Port position
    Rear
    Pressure measurement accuracy
    ±1,0% FS
    Pressure setting min.
    0
    Thread
    G 1/2
