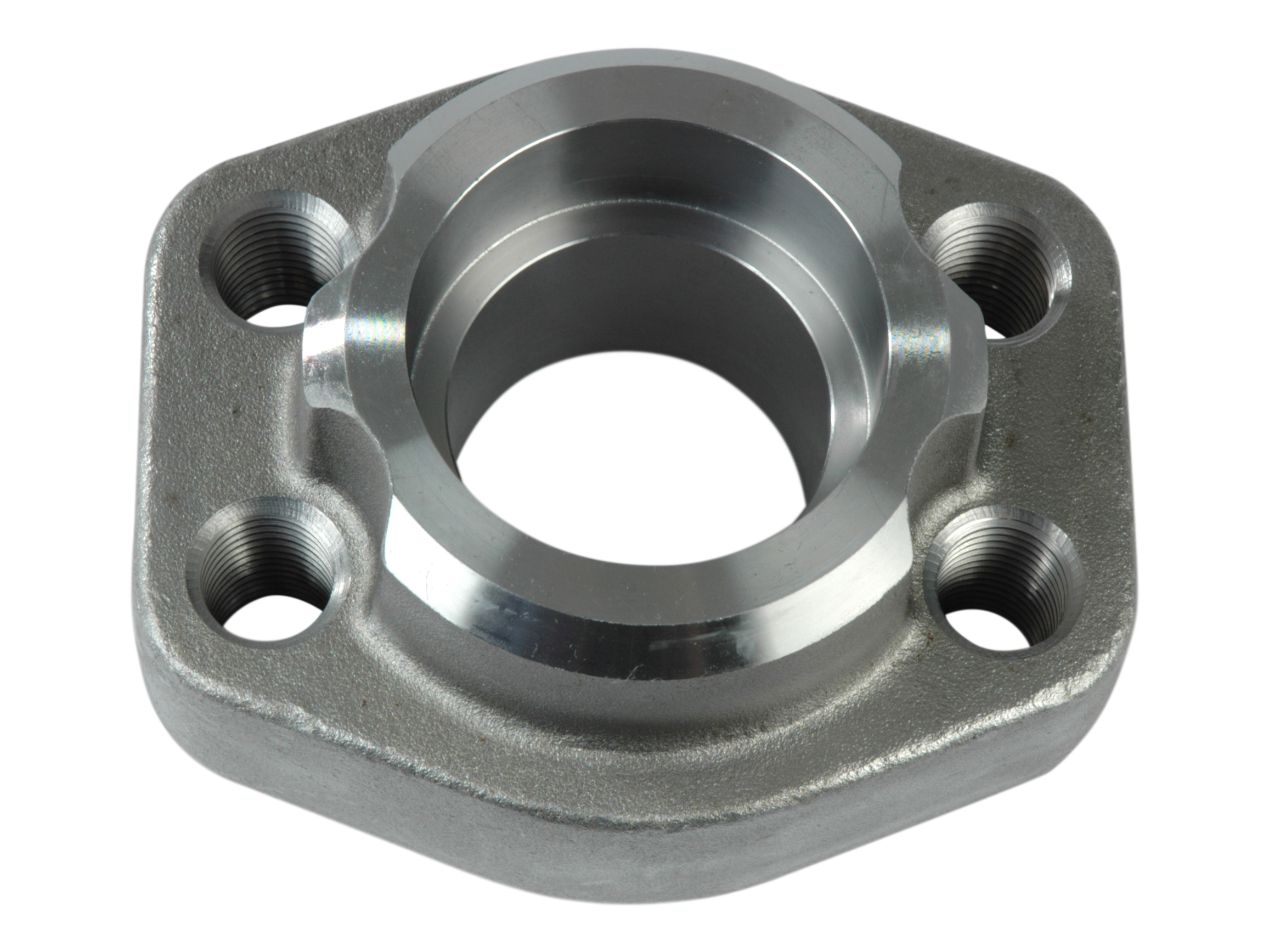

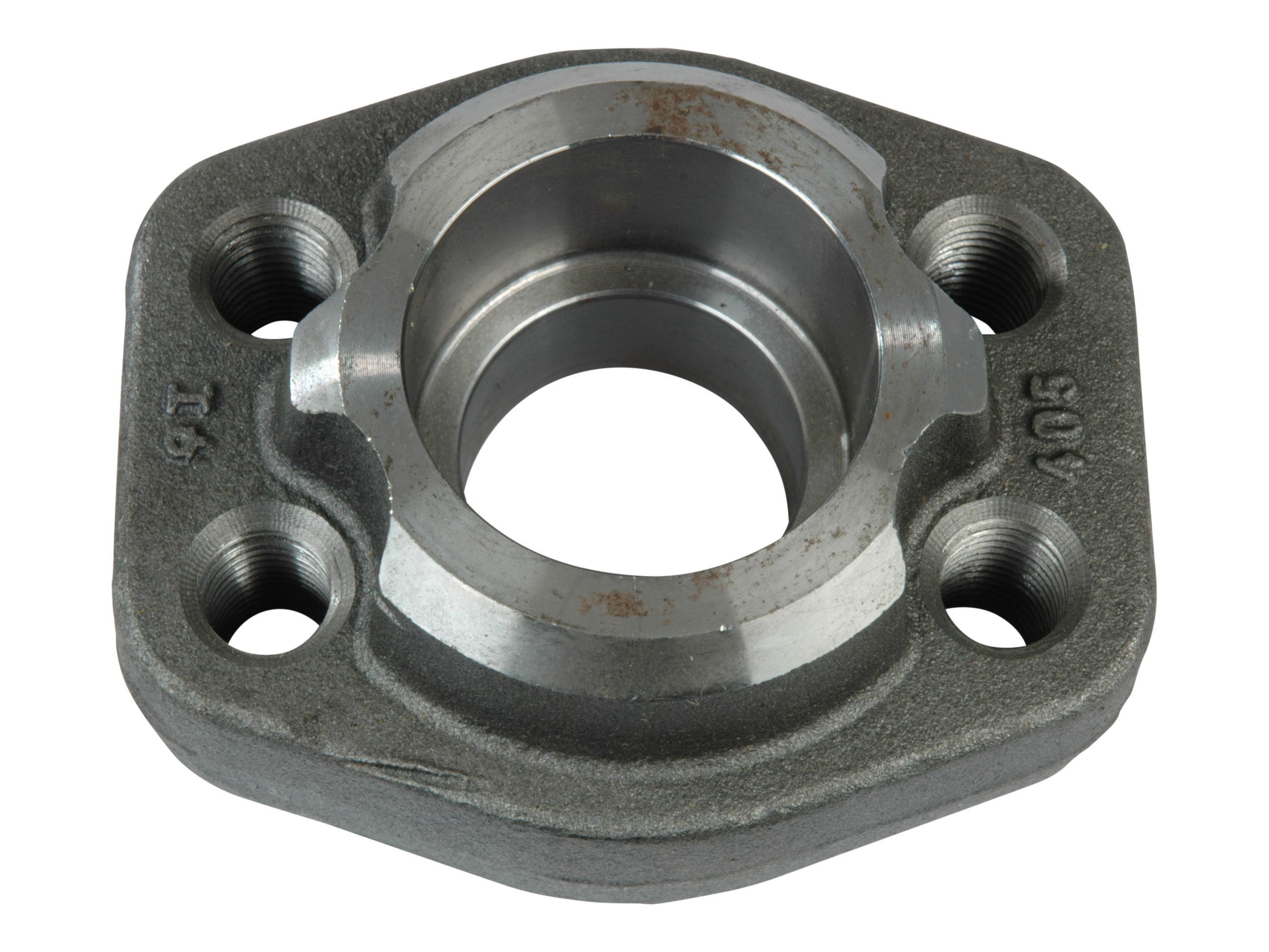

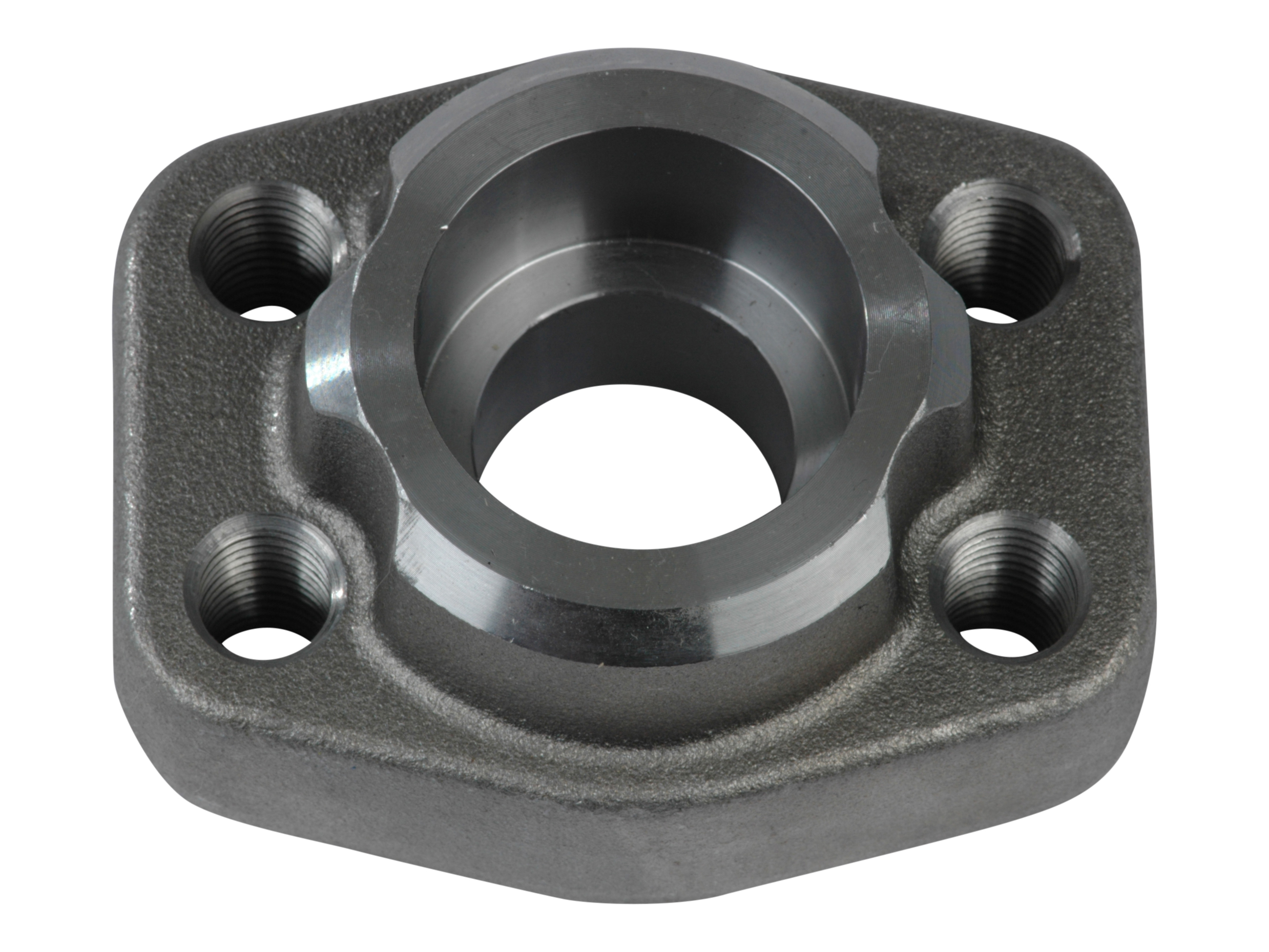

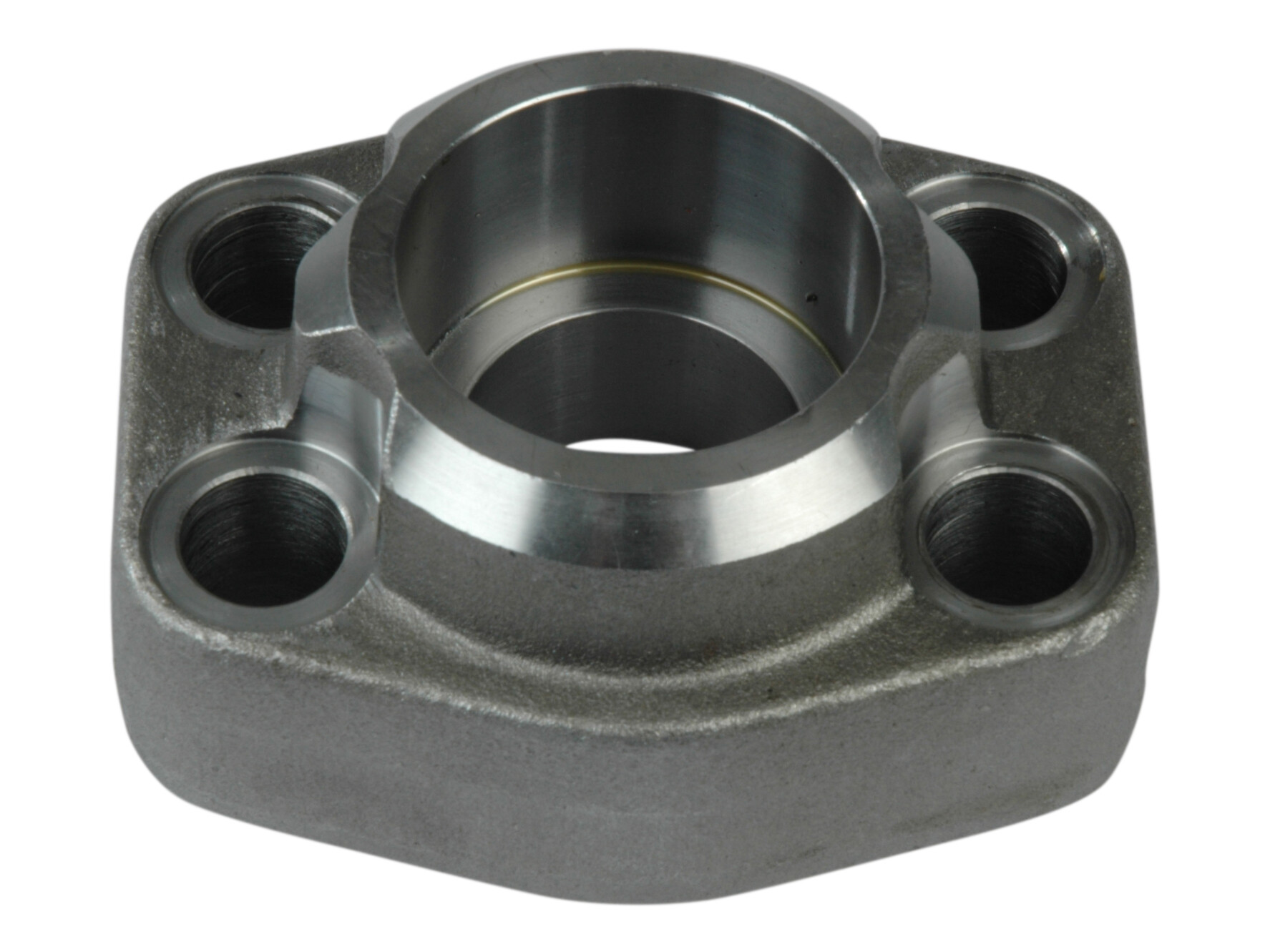

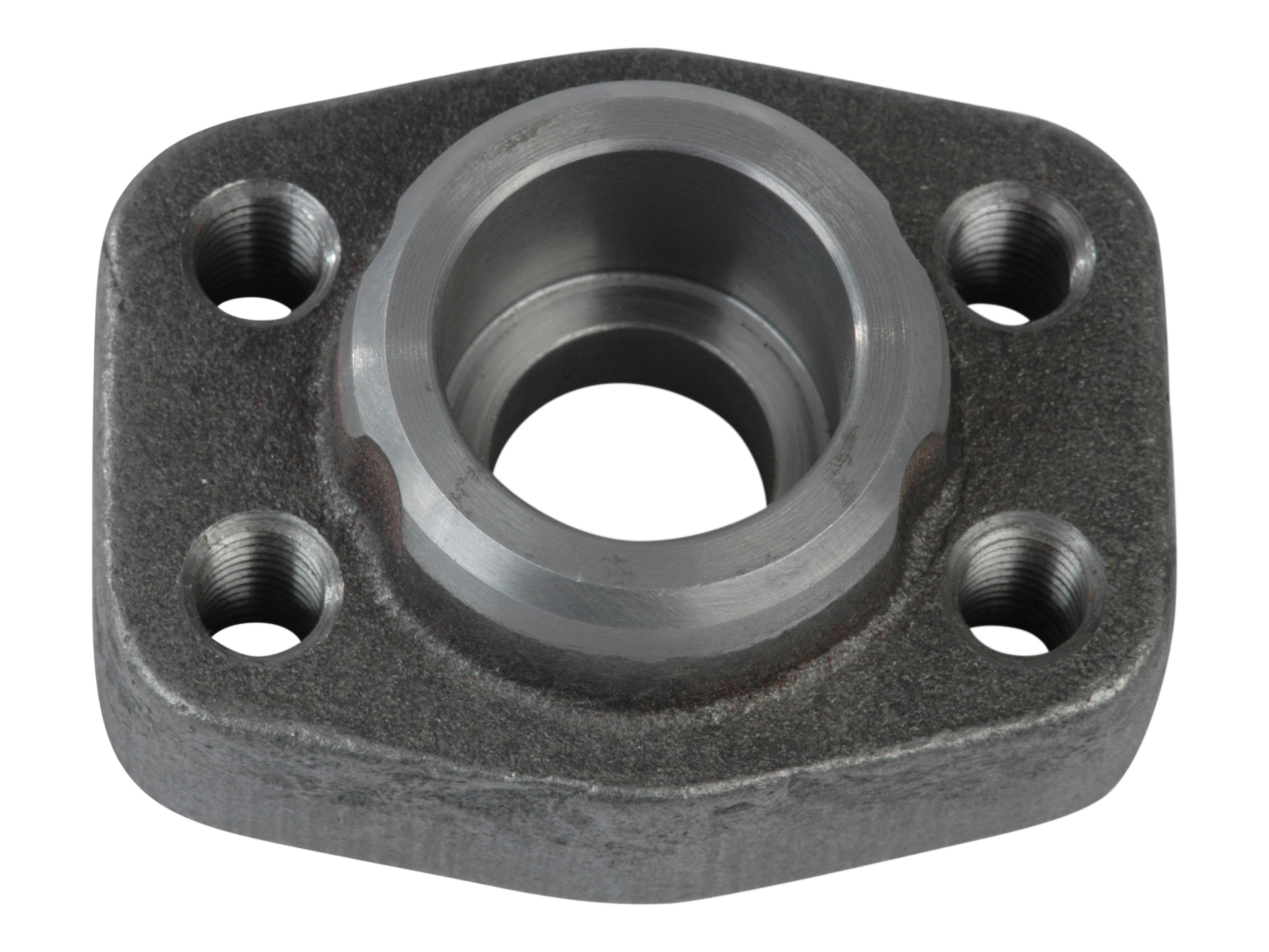

Socket weld flange 0° SAE 6000 PSI - GFS4-S / 0556

Socket weld flange 0° SAE 6000 PSI - GFS4-S / 0556

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange SAE/DIN Flange
GFS402S Socket weld flange 3/4" SAE6000 6000 PSI 3/4 "
GFS403S Socket weld flange 1" SAE6000 6000 PSI 1 "
GFS404S Socket weld flange 1.1/4" SAE6000 6000 PSI 1.1/4 "
GFS405S Socket weld flange 1.1/2" SAE6000 6000 PSI 1.1/2 "
GFS406S Socket weld flange 2" SAE6000 6000 PSI 2 "
Brand Name
Havit
Flange SAE/DIN
6000 PSI
Material
Stainless steel
Pressure max.
420
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Temperature max.
+90
Temperature min.
-40
