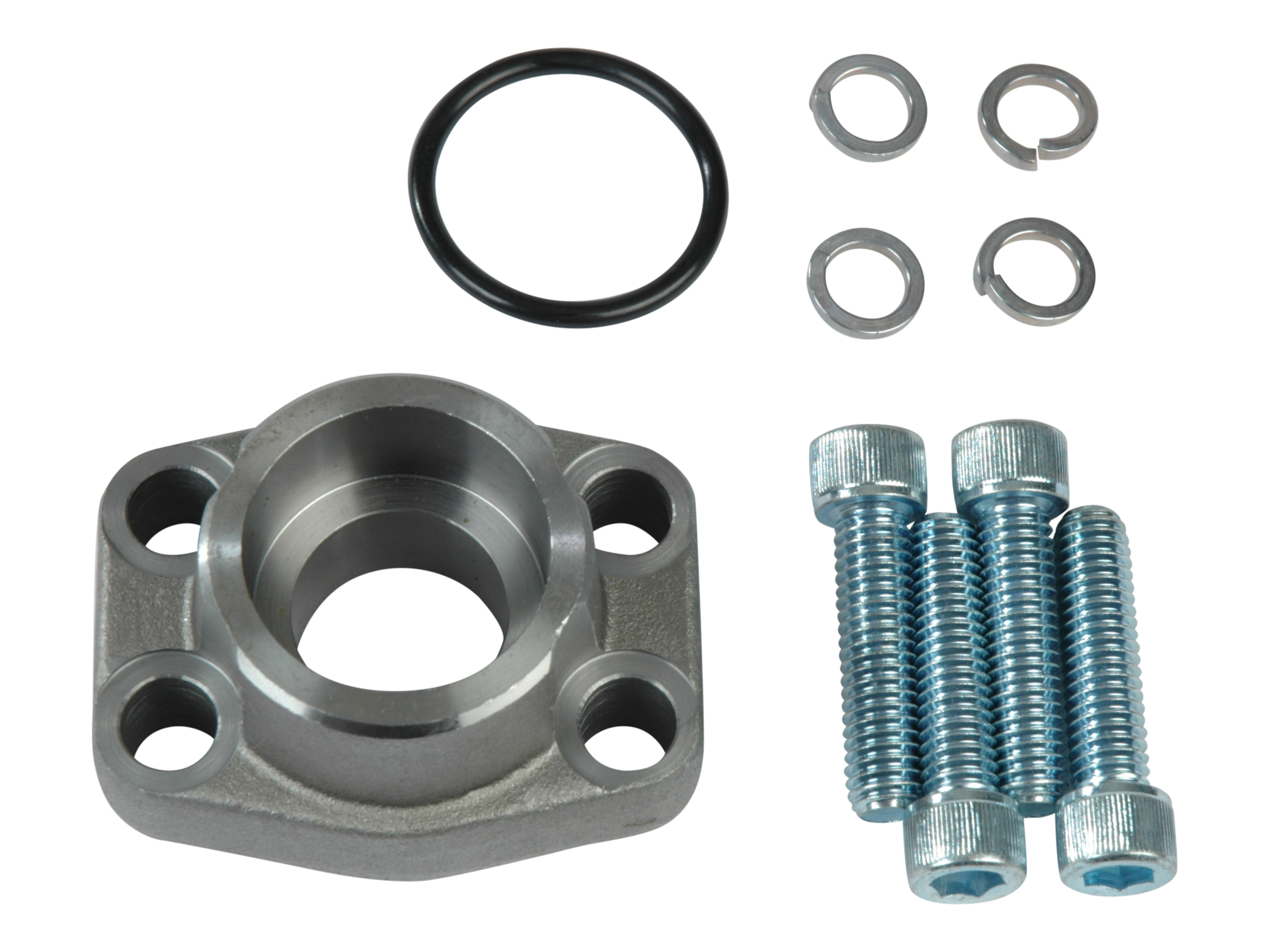

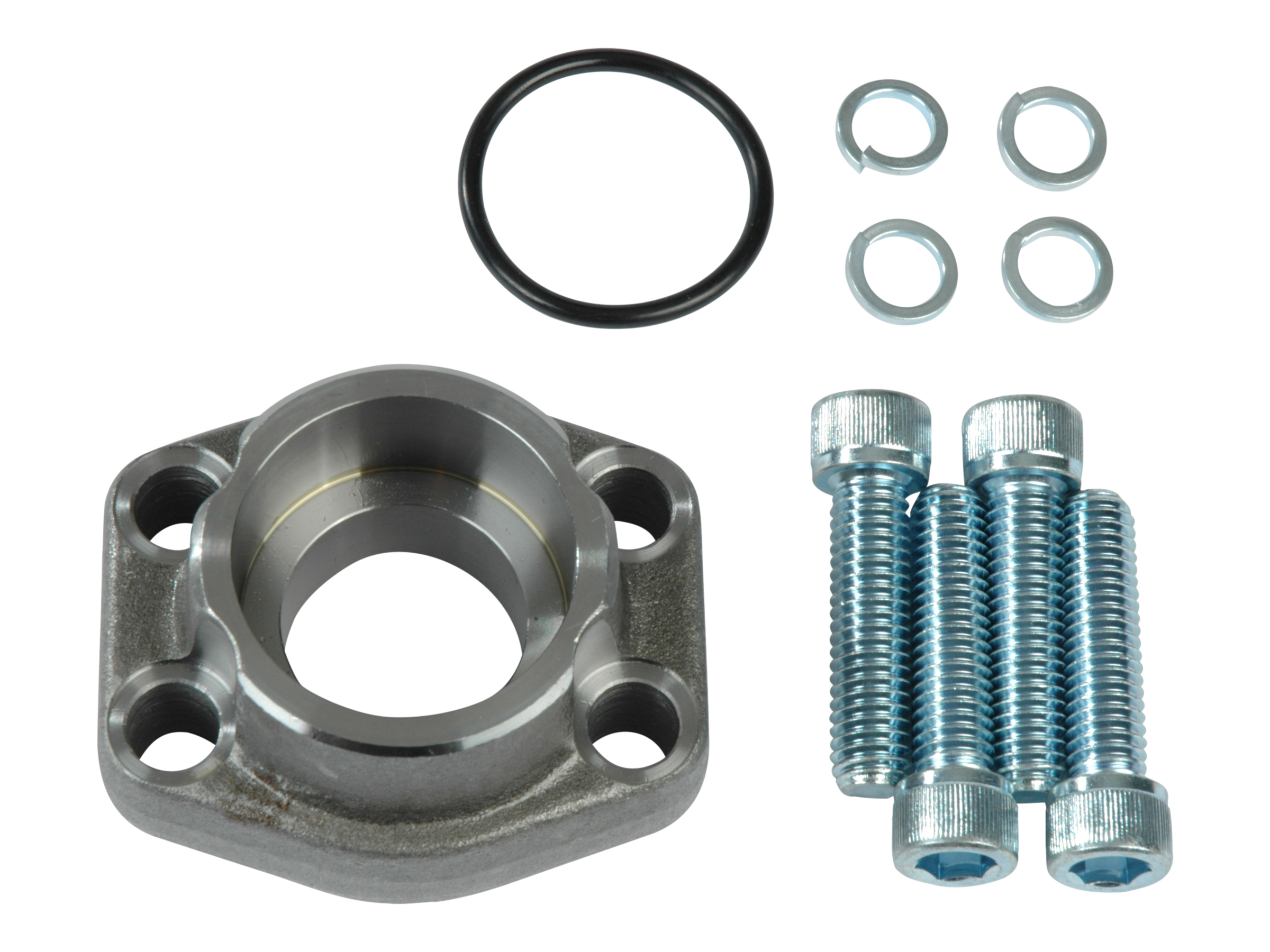

Socket weld flange 0° SAE 3000 PSI with O-ring and UNC bolts - AFS-S/U

Socket weld flange 0° SAE 3000 PSI with O-ring and UNC bolts - AFS-S/U

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange SAE/DIN Flange
AFS102S/U Socket weld flange 1" SAE3000 - complete UNC 3000 PSI 1 "
AFS106S/U Socket weld flange 1.1/2" SAE3000 - complete UNC 3000 PSI 1.1/2 "
Brand Name
Havit
Flange SAE/DIN
3000 PSI
Material
Steel
Number of bolts
4
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90
Temperature min.
-40
