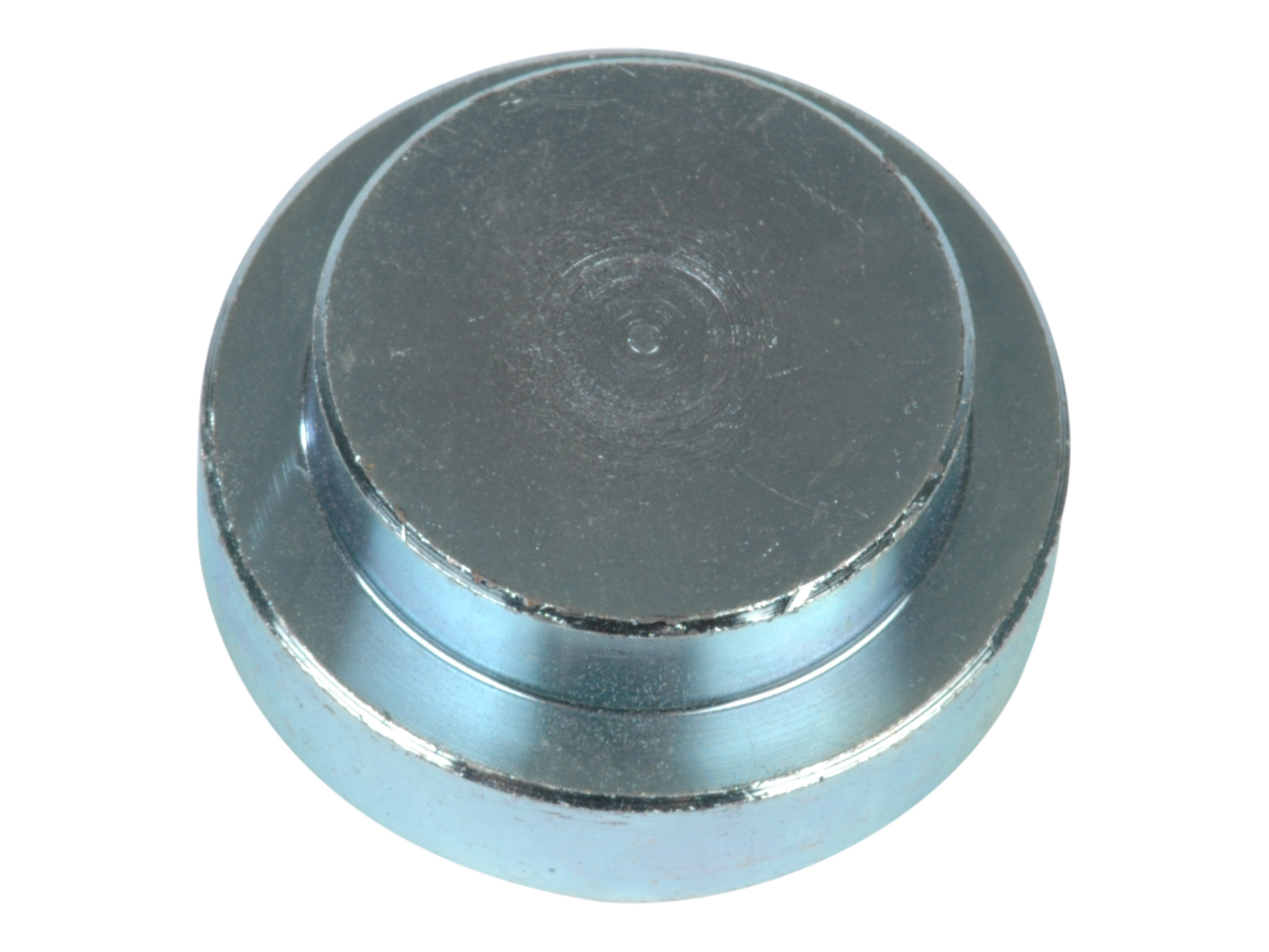

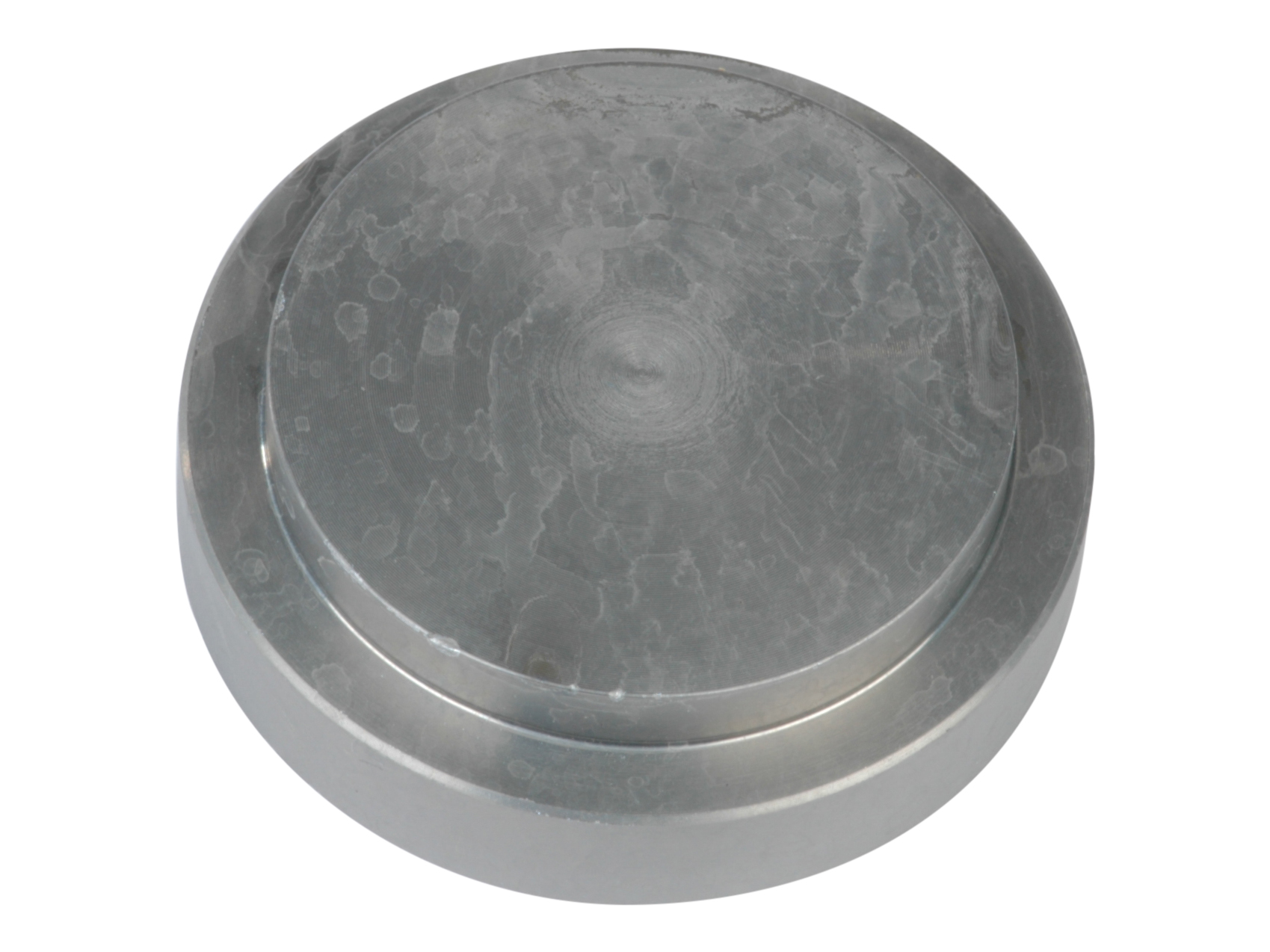

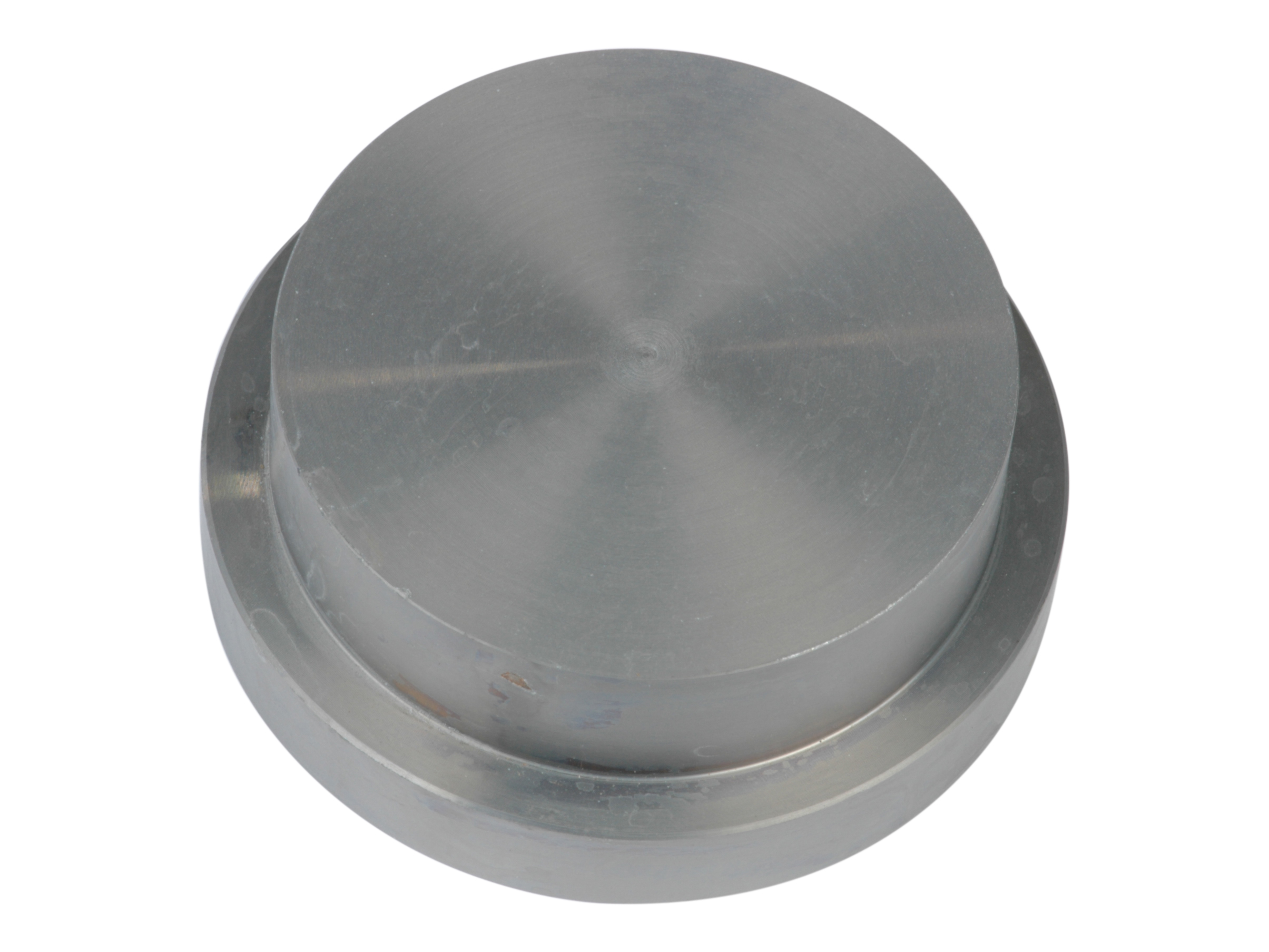

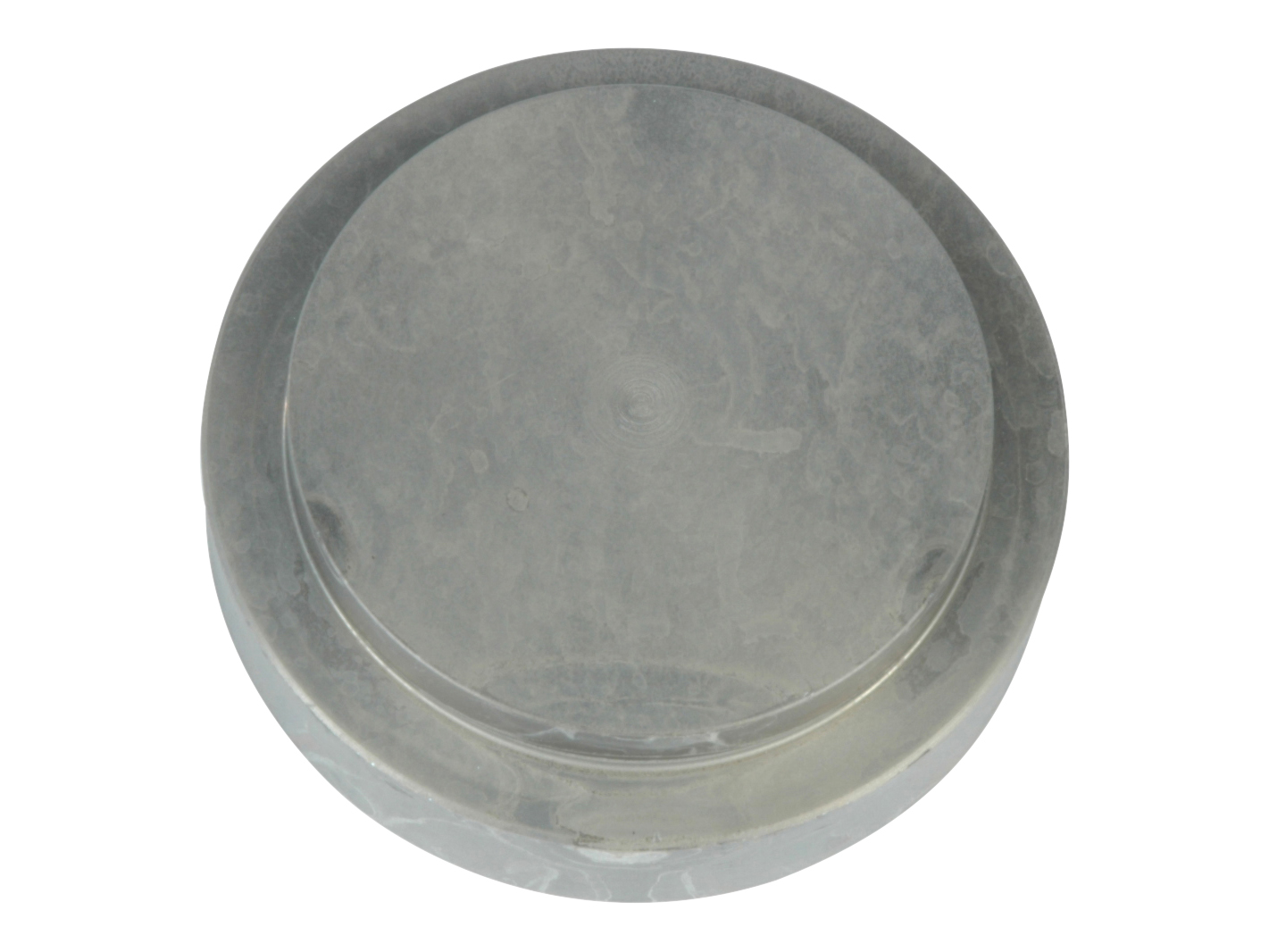

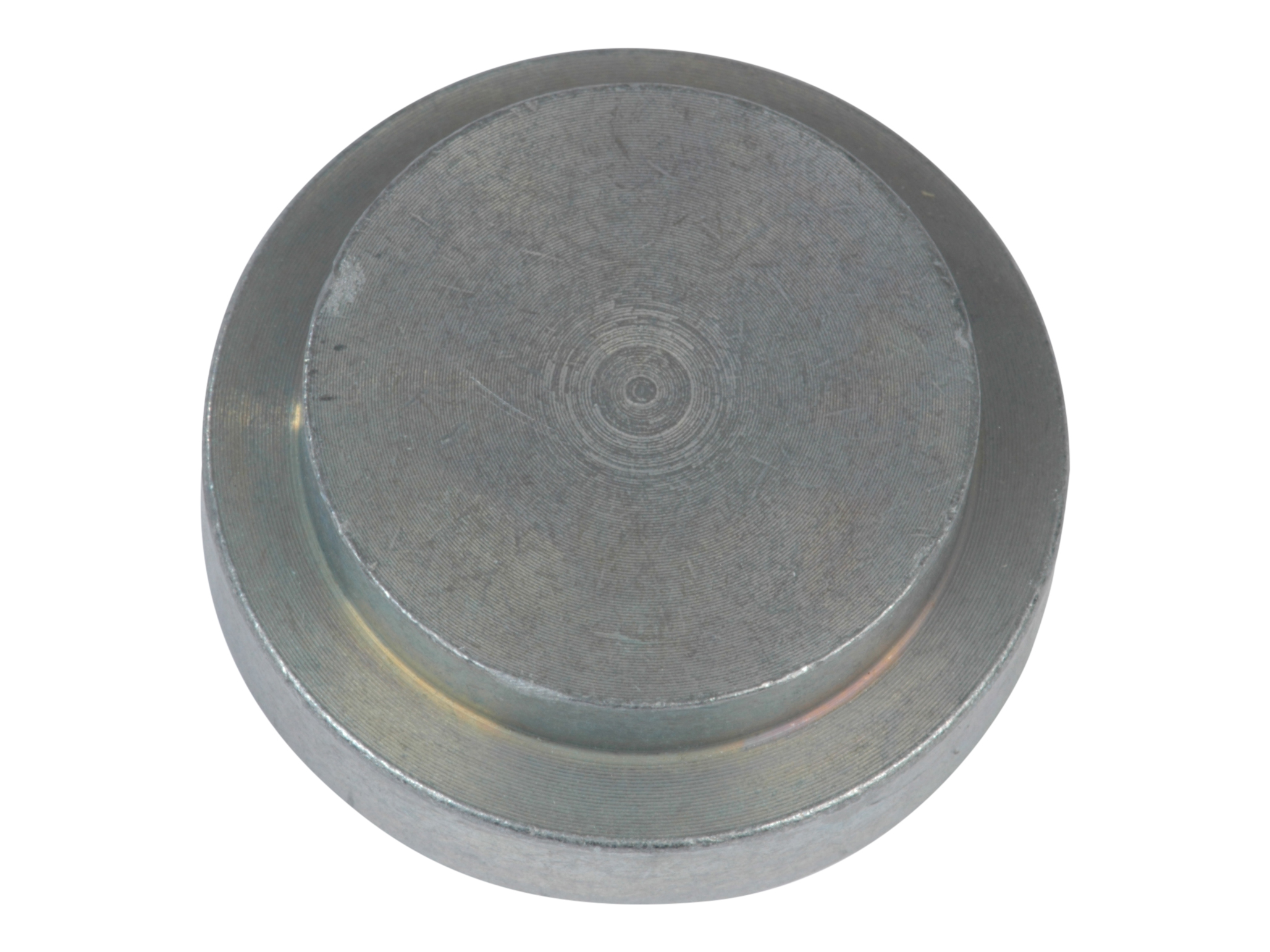

Blind plugs for o-ring BS - SAE 6000 PSI - BS6 / 8639

Flange plug 1/2" SAE6000

Flange plug 3/4" SAE6000

Flange plug 1" SAE6000

Flange plug 1.1/4" SAE6000

Flange plug 1.1/2" SAE6000

Flange plug 2" SAE6000

SELECT VARIANT

Partnumber	Description	Flange	O-ring	Pressure max.
BS6001	Flange plug 1/2" SAE6000	1/2 "	18.64X3.53 mm	420 bar
BS6002	Flange plug 3/4" SAE6000	3/4 "	24.99X3.53 mm	420 bar
BS6003	Flange plug 1" SAE6000	1 "	32.93X3.53 mm	420 bar
BS6004	Flange plug 1.1/4" SAE6000	1.1/4 "	37.69X3.53 mm	420 bar
BS6005	Flange plug 1.1/2" SAE6000	1.1/2 "	47.22X3.53 mm	420 bar
BS6006	Flange plug 2" SAE6000	2 "	56.75X3.53 mm	420 bar

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

6000 PSI

Material

Steel

Pressure max.

420

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

Zinc-Nickel plated
