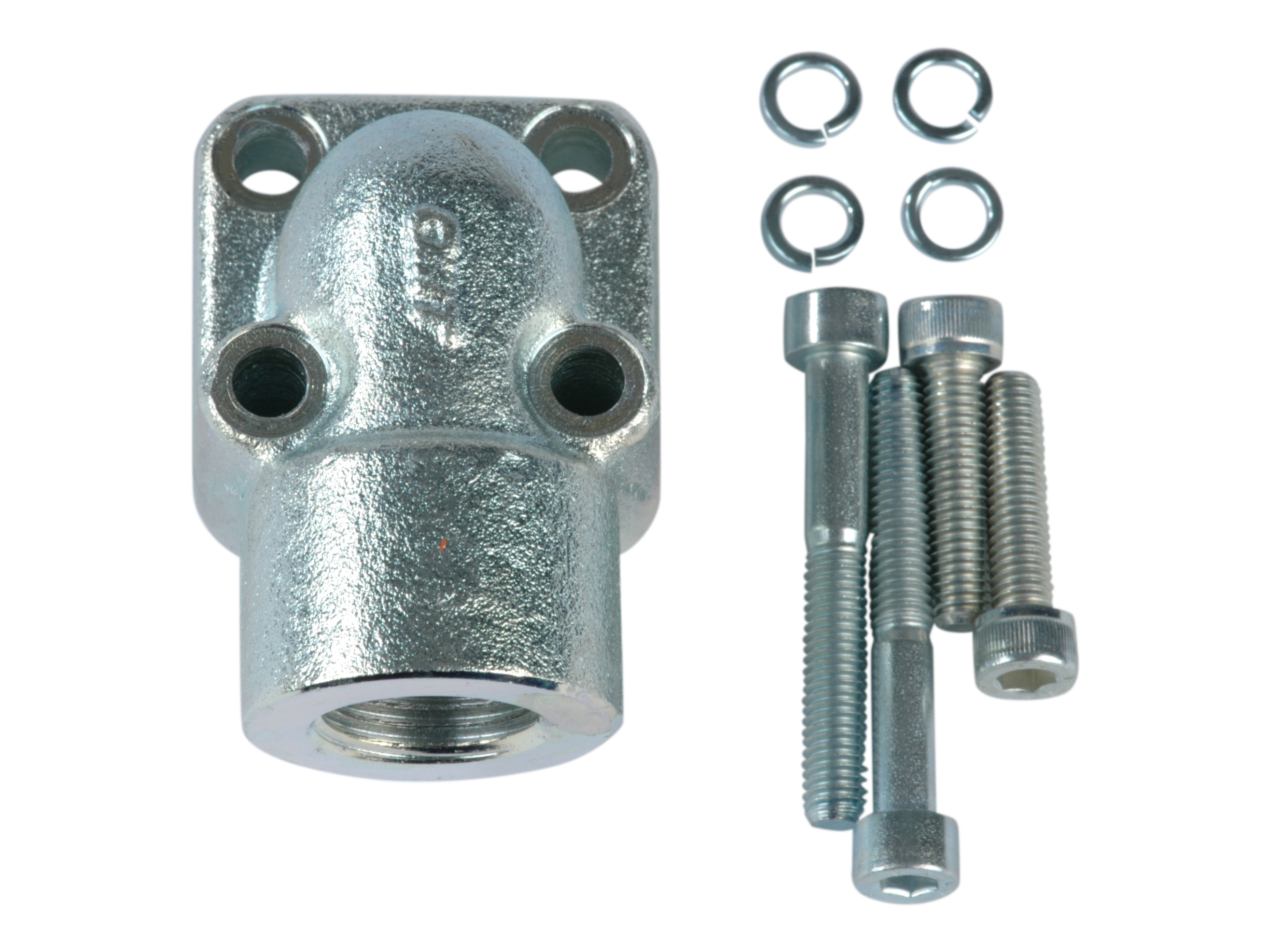

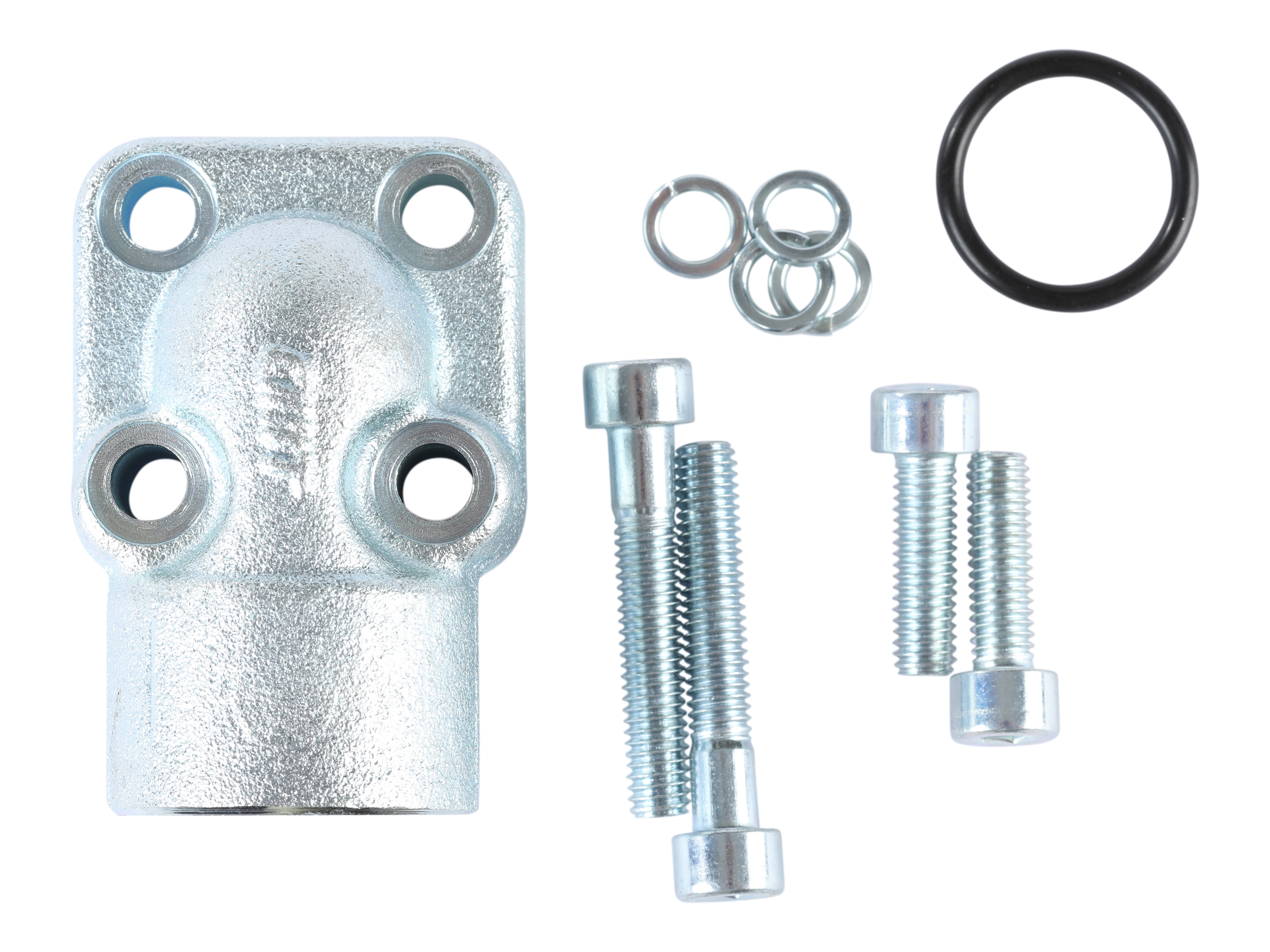

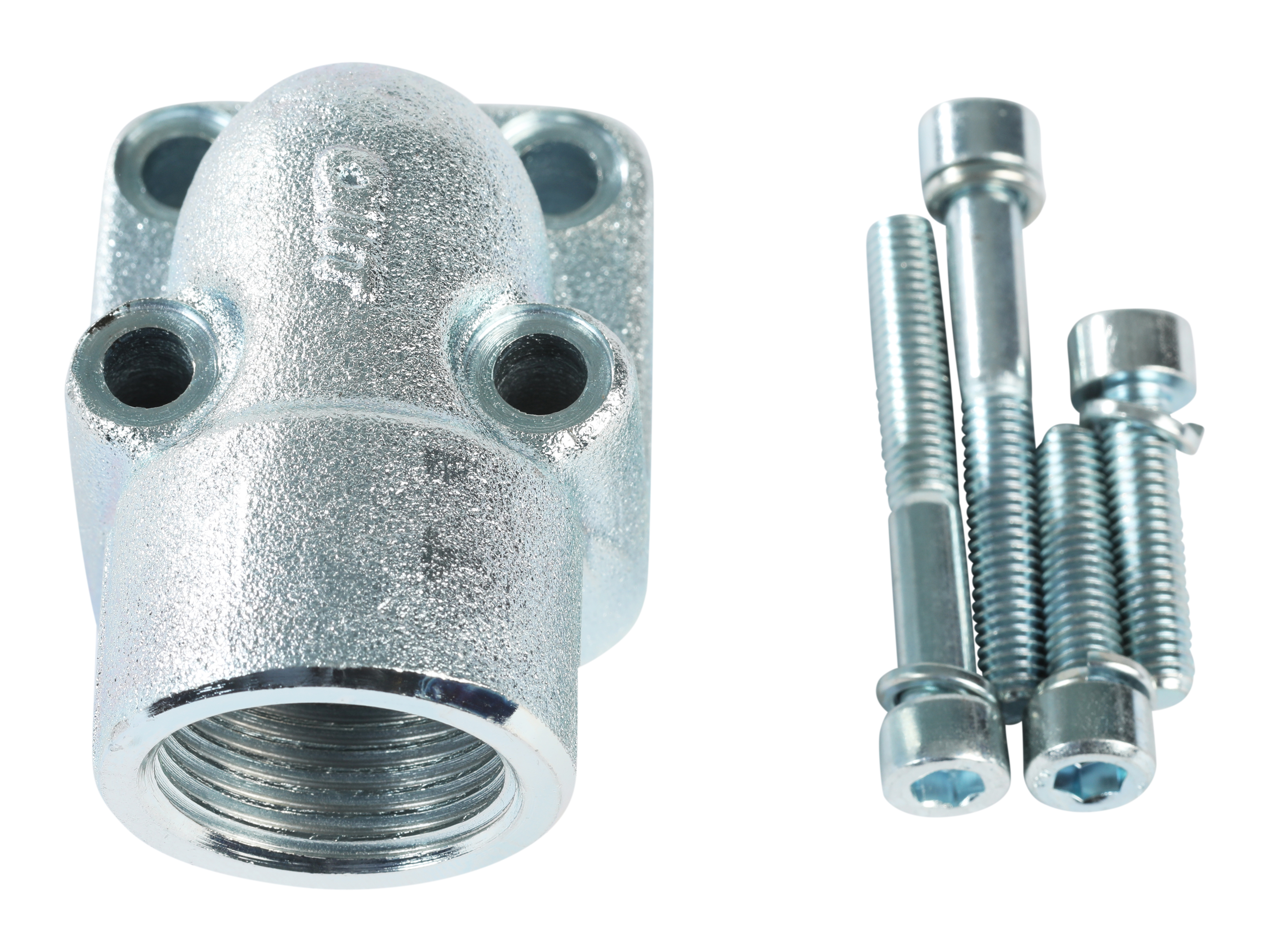

Flange elbow - BSP female - RIA

Flange 90° 1/2" BSP - (4) 30mm

Flange 90° 1/2" BSP - (4) 35mm

Flange 90° 3/8" BSP - (4) 30mm

Flange 90° 1/2" BSP - (4) 40mm

Flange 90° 3/4" BSP - (4) 40mm

SELECT VARIANT

Partnumber	Description	Pressure max.	Thread inner	Holes circle	Material
1BKA1/2X30	Flange 90° 1/2" BSP - (4) 30mm	315 bar	G 1/2 BSP	30 mm	Aluminium
1BKA1/2X35	Flange 90° 1/2" BSP - (4) 35mm	315 bar	G 1/2 BSP	35 mm	Aluminium
1BKA3/8X30	Flange 90° 3/8" BSP - (4) 30mm	315 bar	G 3/8 BSP	30 mm	Aluminium
2BKA1/2X40	Flange 90° 1/2" BSP - (4) 40mm	315 bar	G 1/2 BSP	40 mm	Aluminium
2BKA3/4X40	Flange 90° 3/4" BSP - (4) 40mm	315 bar	G 3/4 BSP	40 mm	Aluminium

Angle

Material

Aluminium

Number of bolts

Pressure max.

315

Sealing material

NBR

Surface treatment

White zinc plated
