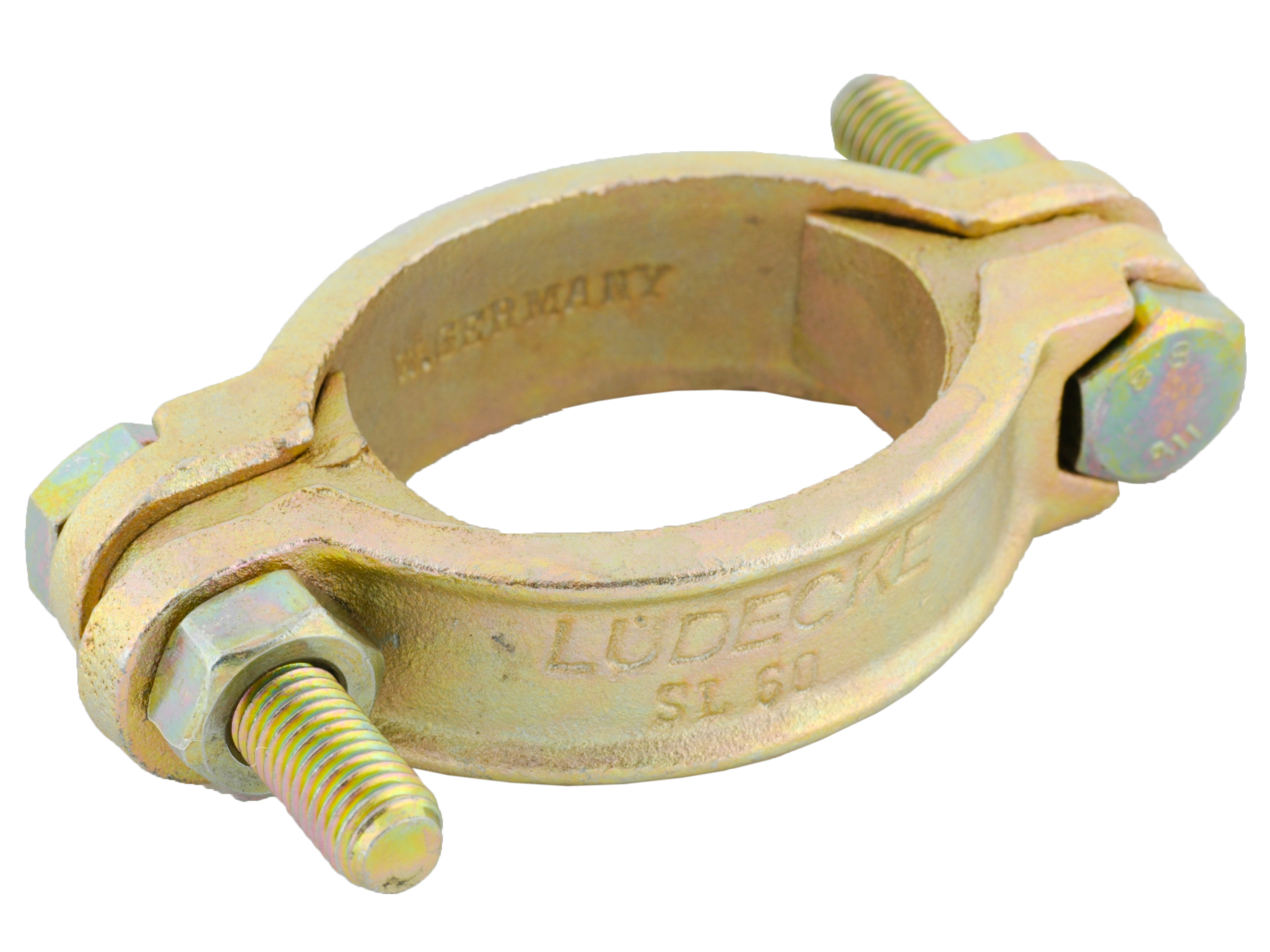

Steel clamps two-piece SL

Two part clamp Type S 22 Dim. 17-22mm (hose OD)

Two part clamp Type SL 29 Dim. 22-29mm (hose OD)

2-piece steel compression ring sl. 034.

2-piece steel compression ring sl. 040.

2-piece steel compression ring sl. 049.

Two part clamp Type SL 076 Dim. 60-76mm (hose OD)

SELECT VARIANT

Partnumber	Description	Diameter min.	Diameter max.	Diameter hose outer min.	Diameter hose outer max.
0116064022	Two part clamp Type S 22 Dim. 17-22mm (hose OD)	17 mm	22 mm	17 mm
0116064029	Two part clamp Type SL 29 Dim. 22-29mm (hose OD)	22 mm	29 mm	22 mm	29 mm
0116064035	2-piece steel compression ring sl. 034.	28 mm	34 mm	28 mm	34 mm
0116064040	2-piece steel compression ring sl. 040.	32 mm	40 mm	32 mm	40 mm
0116064049	2-piece steel compression ring sl. 049.	39 mm	49 mm	39 mm	49 mm
0116064076	Two part clamp Type SL 076 Dim. 60-76mm (hose OD)	60 mm	76 mm	60 mm	76 mm

Brand Name

Ludecke

Material

Cast iron

Standard DIN

DIN 20039A, DIN 20039B

Surface treatment

Zinc-plated
