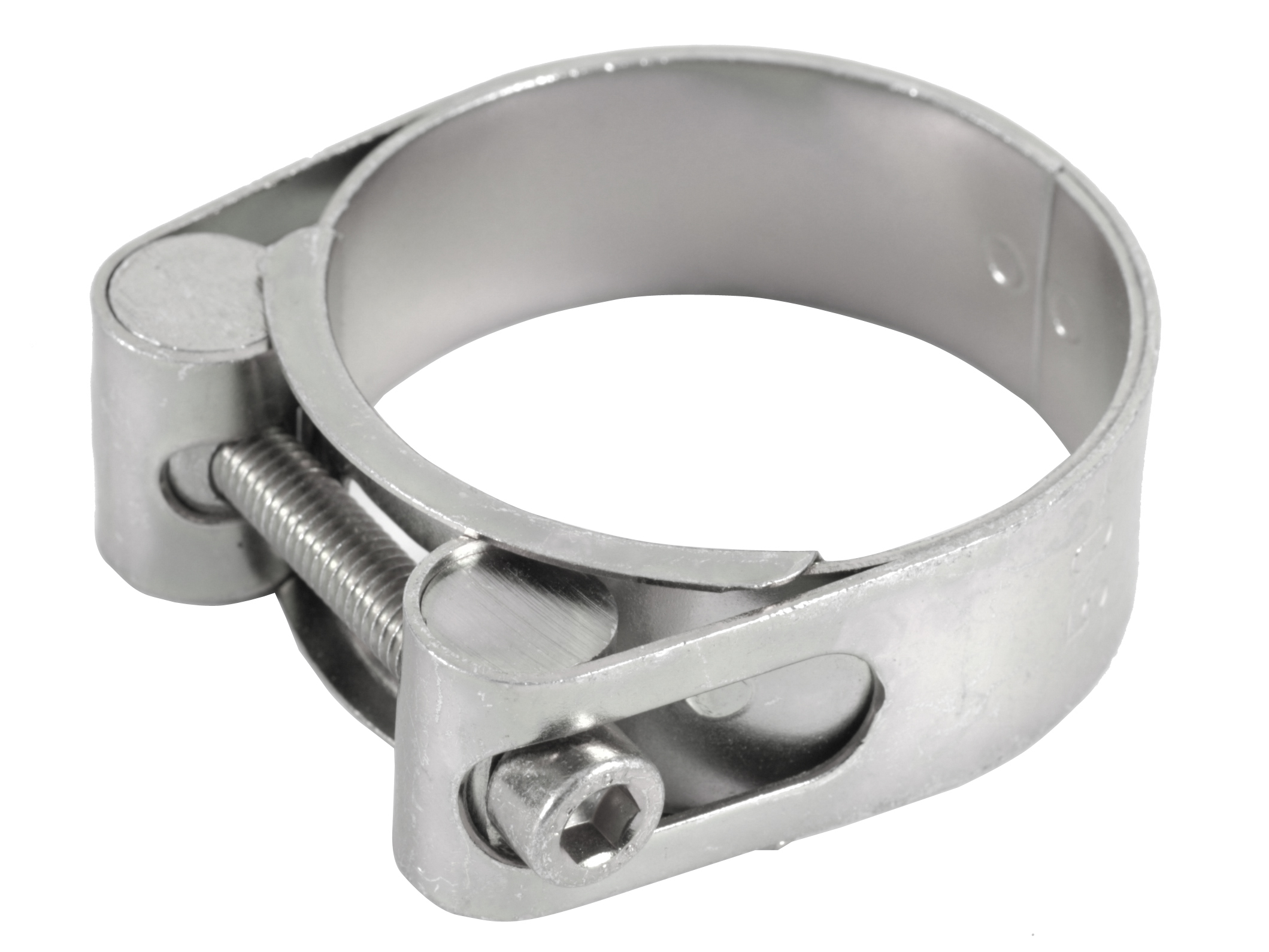

Powerclamps SK1

SELECT VARIANT

Partnumber	Description	Width	Diameter min.	Diameter max.
0116008035	Single clamp 31-35mm band width: 20x1mm Screw: M6	20 mm	31 mm	35 mm
0116008040	Pari clamp 35-40mm - 20x1.0mm - 1 bolt	20 mm	35 mm	40 mm
0116008045	Pari clamp 39-45mm - 20x1.0mm - 1 bolt	20 mm	40 mm	45 mm
0116008050	Pari clamp 44-50mm - 20x1.0mm - 1 bolt	20 mm	44 mm	50 mm
0116008055	Pari clamp 50-55mm - 20x1.0mm - 1 bolt	20 mm	49 mm	55 mm
0116008060	Pari clamp 55-60mm - 20x1.0mm - 1 bolt	20 mm	54 mm	60 mm
0116008065	Pari clamp 60-65mm - 20x1.0mm - 1 bolt	20 mm	59 mm	65 mm
0116008070	Pari clamp 65-70mm - 20x1.0mm - 1 bolt	20 mm	64 mm	70 mm
0116008075	Pari clamp 70-75mm - 20x1.0mm - 1 bolt	20 mm	69 mm	75 mm
0116008080	Pari clamp 75-80mm - 20x1.0mm - 1 bolt	20 mm	74 mm	80 mm
0116008085	Pari clamp 80-85mm - 20x1.0mm - 1 bolt	20 mm	79 mm	85 mm
0116008090	Pari clamp 85-90mm - 20x1.0mm - 1 bolt	20 mm	84 mm	90 mm
0116008095	Pari clamp 90-95mm - 20x1.0mm - 1 bolt	20 mm	89 mm	95 mm
0116008100	Pari clamp 95-100mm - 20x1.0mm - 1 bolt	20 mm	94 mm	100 mm
0116008105	Pari clamp 100-105mm - 20x1.0mm - 1 bolt	20 mm	99 mm	105 mm
0116008110	Pari clamp 105-110mm - 20x1.0mm - 1 bolt	20 mm	104 mm	110 mm
0116008115	Pari clamp 110-115mm - 20x1.0mm - 1 bolt	20 mm	109 mm	115 mm
0116008120	Pari clamp 115-120mm - 20x1.0mm - 1 bolt	20 mm	114 mm	120 mm
0116008125	Pari clamp 120-125mm - 20x1.0mm - 1 bolt	20 mm	119 mm	125 mm
0116008130	Pari clamp 125-130mm - 20x1.0mm - 1 bolt	20 mm	124 mm	130 mm
0116008135	Pari clamp 130-135mm - 20x1.0mm - 1 bolt	20 mm	129 mm	134 mm

Brand Name

Power-Flex APS

Hexagon

Material

Steel

Material quality band

St. 12.03

Material quality bolt

St. 8.8

REACH compliant

Yes

RoHs compliant

Yes

Standard DIN

DIN 1623

Standard EN

EN 10130DC01

Surface treatment

Zinc coating (CR III)

Thread of bolt metric

Width
