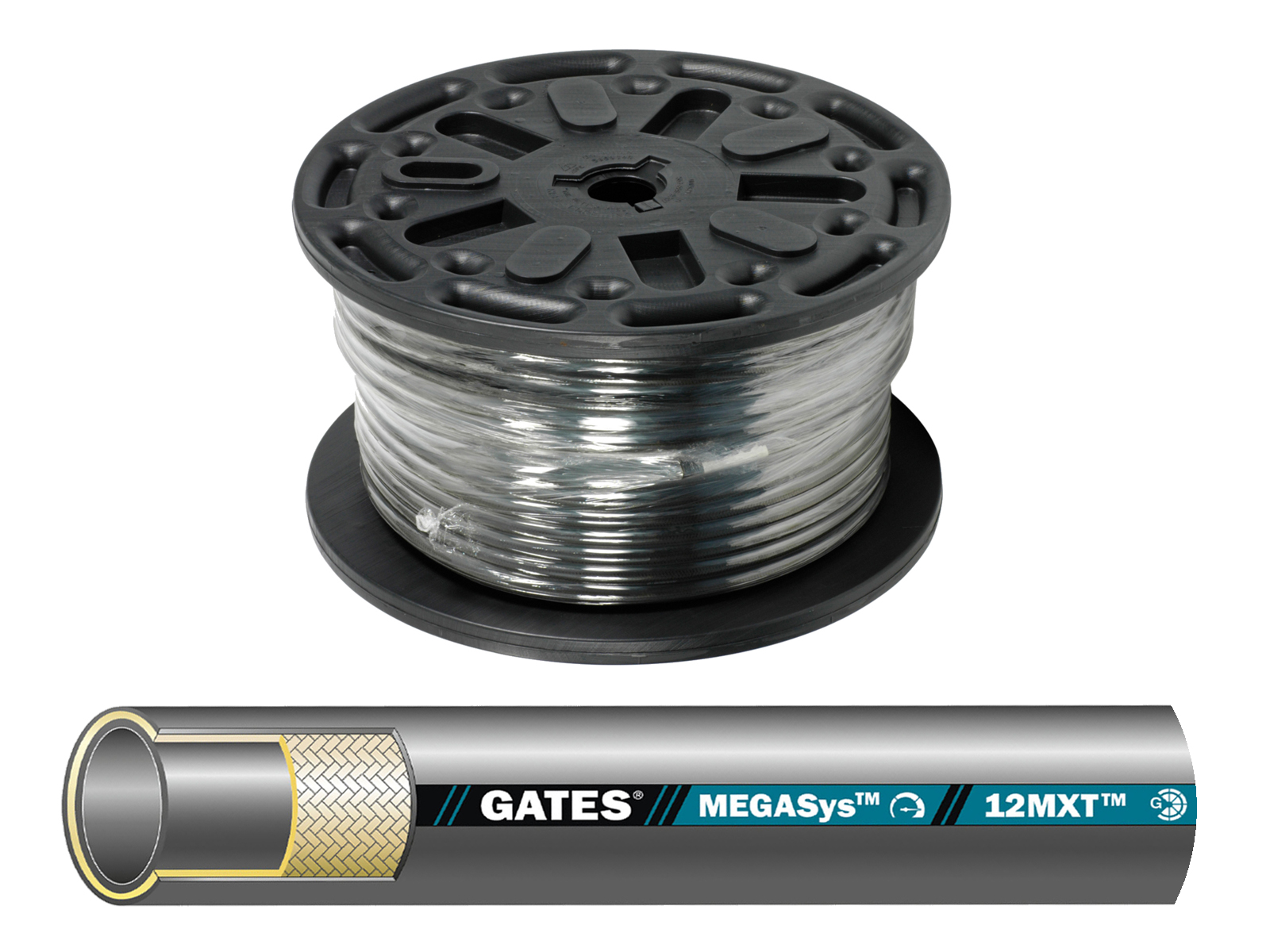

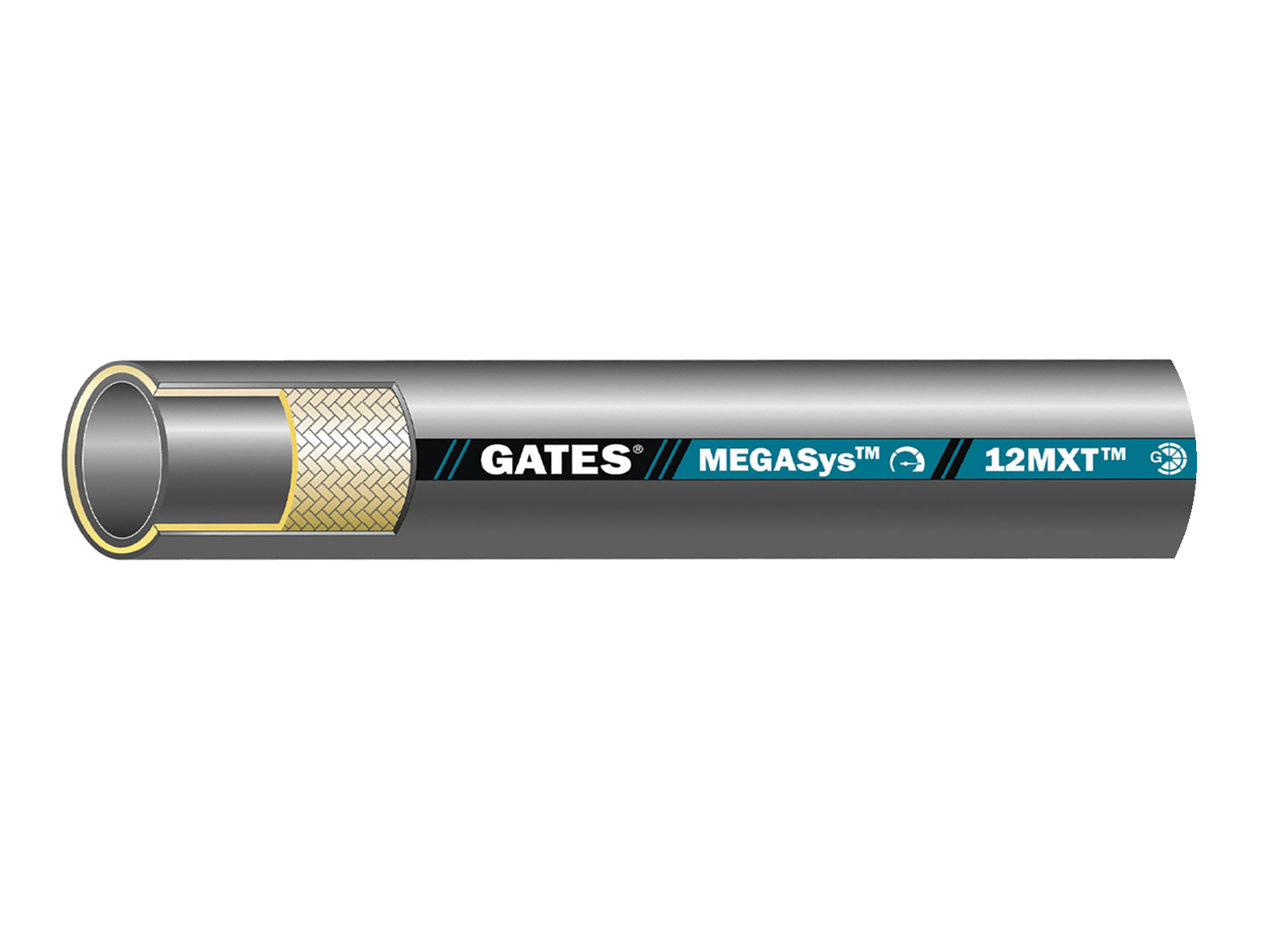

MXT hydraulic hoses

1/4" Hydraulic hose MxT - 400 bar

3/8" Hydraulic hose MxT - 330 bar

1/2" Hydraulic hose MxT - 275 bar - 75 mtr plastreel

5/8" Hydraulic hose MxT - 250 bar

1" Hydraulic hose MxT - 165 bar

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Hose type	Bend radius
04MXT	1/4" Hydraulic hose MxT - 400 bar	1/4 "	400 bar	MXT	50 mm
06MXT	3/8" Hydraulic hose MxT - 330 bar	3/8 "	330 bar	MXT	65 mm
08MXT-RL75	1/2" Hydraulic hose MxT - 275 bar - 75 mtr plastreel	1/2 "	275 bar	MXT	70 mm
10MXT	5/8" Hydraulic hose MxT - 250 bar	5/8 "	250 bar	MXT	75 mm
16MXT	1" Hydraulic hose MxT - 165 bar	1 "	165 bar	MXT	150 mm

Brand Name

Gates

Comment

Use G-couplings only

Flameresistant

Yes

Hose type

MXT

Hoseapprovals

MSHA

REACH compliant

Yes

RoHs compliant

Yes

Standard EN

EN 853 2SN, EN 857 2SC

Standard ISO

ISO 11237 2SC R16S, ISO 11237 R17, ISO 11237 R19, ISO 1436 2SN R2

Standard SAE

SAE 100R2

Temperature max.

+100

Temperature min.

-40
