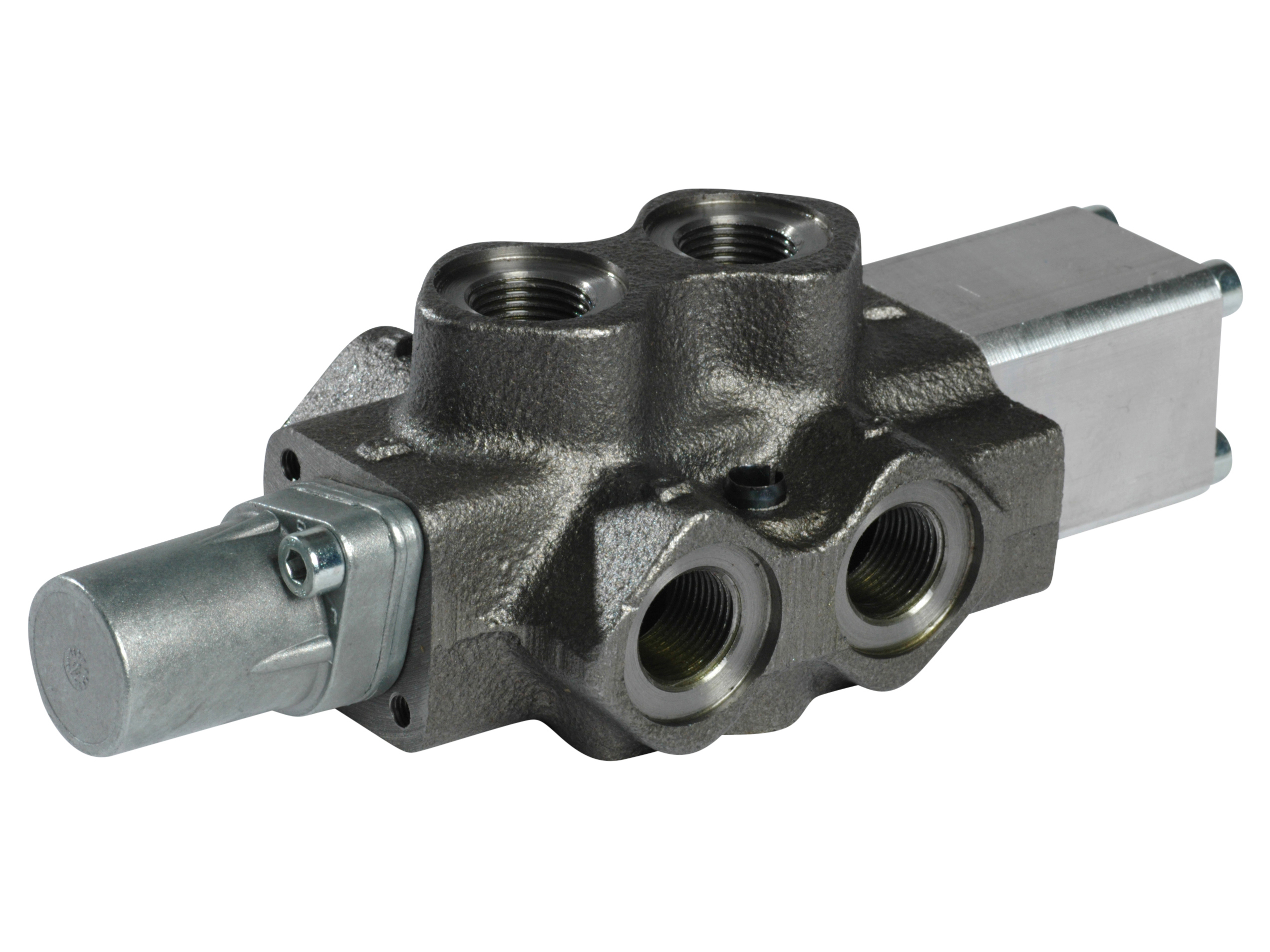

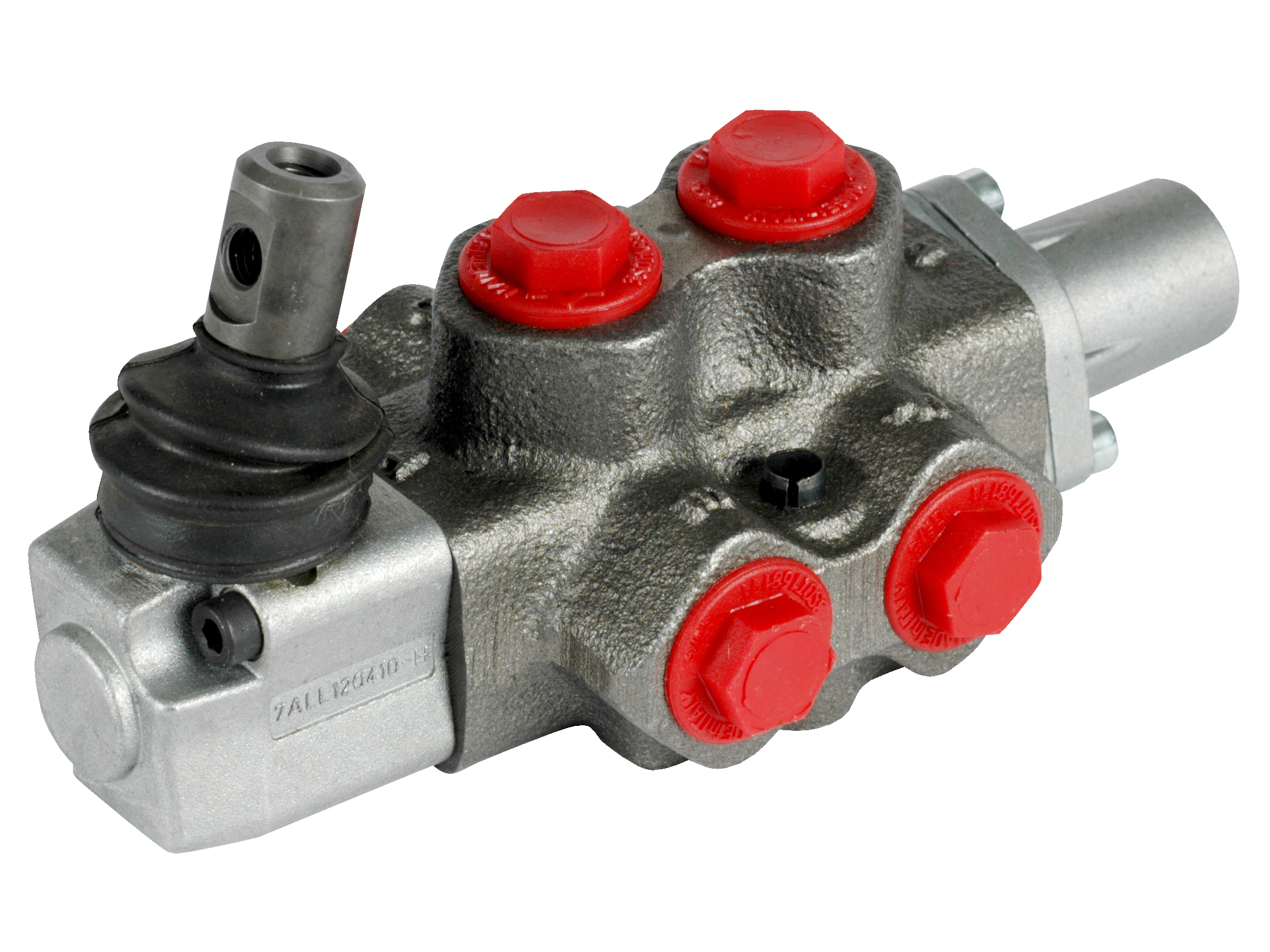

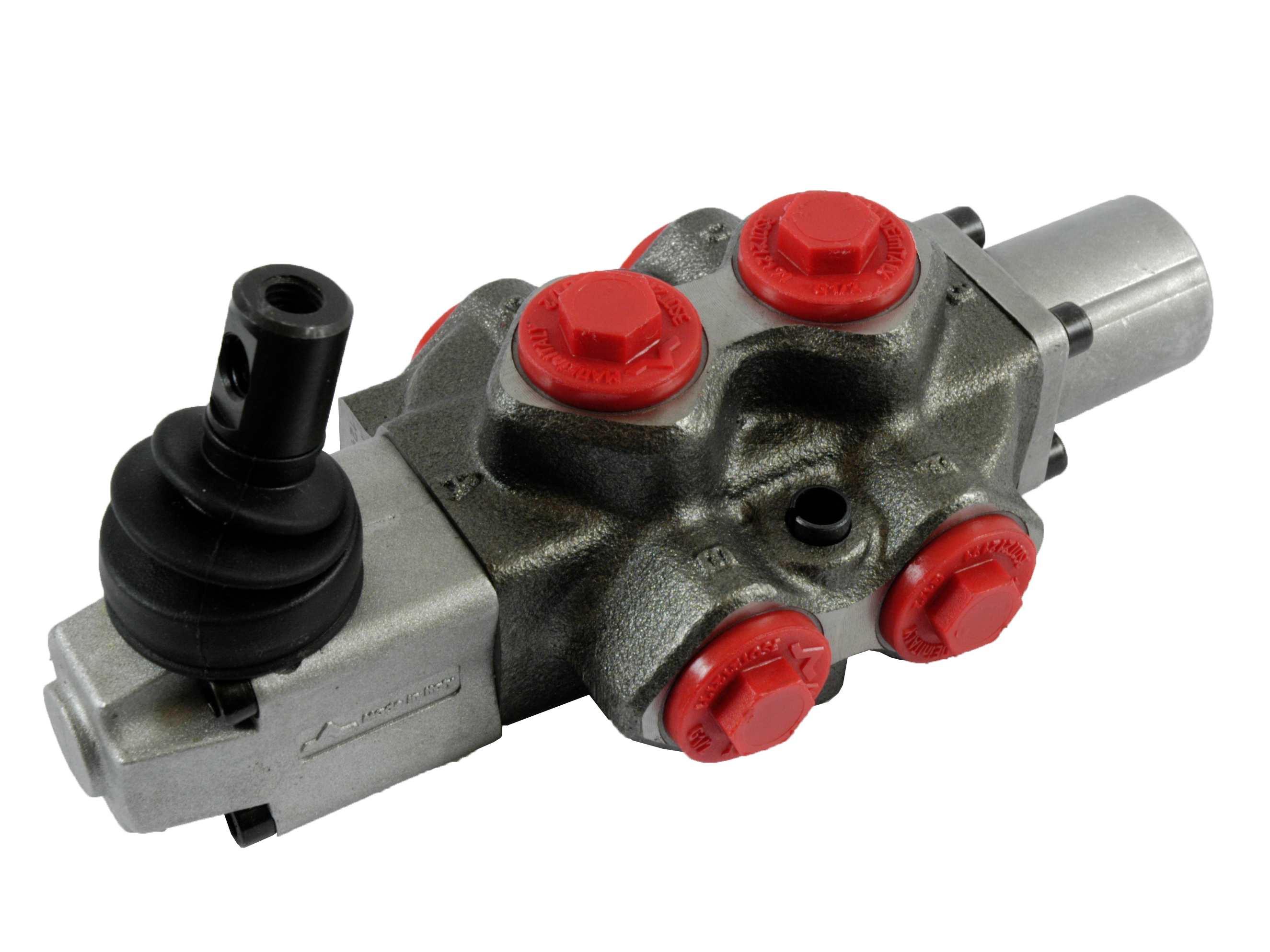

6 way diverter valves manual, Walvoil DF

DF5/6A12L,3/8 diverter valve Detend pos. 1+2, with lever

DF5/6A17L,diverter valve,

DF5/6A17MEIB2,diverter valve,

DF5/6B17C,3/8 6/2 valve Spring return pos.1cam contro

DF10/6A12L, 6/2 div.valve detent pos.1+2 std. lever box

DF20/6A12L, 6way sel. valve detend pos.1+2, std. Lever

SELECT VARIANT

Partnumber	Description	Flow rate nominal LMin	Pressure max.
122082040	DF5/6A12L,3/8 diverter valve Detend pos. 1+2, with lever	60 lpm	315 bar
122084040	DF5/6A17L,diverter valve,	60 lpm	315 bar
122084090	DF5/6A17MEIB2,diverter valve,	60 lpm	315 bar
122094050	DF5/6B17C,3/8 6/2 valve Spring return pos.1cam contro	60 lpm	315 bar
124082040	DF10/6A12L, 6/2 div.valve detent pos.1+2 std. lever box	90 lpm	315 bar
126082040	DF20/6A12L, 6way sel. valve detend pos.1+2, std. Lever	140 lpm	315 bar

Brand Name

Walvoil

Number of ways/positions

6/2

Pressure max.

315
