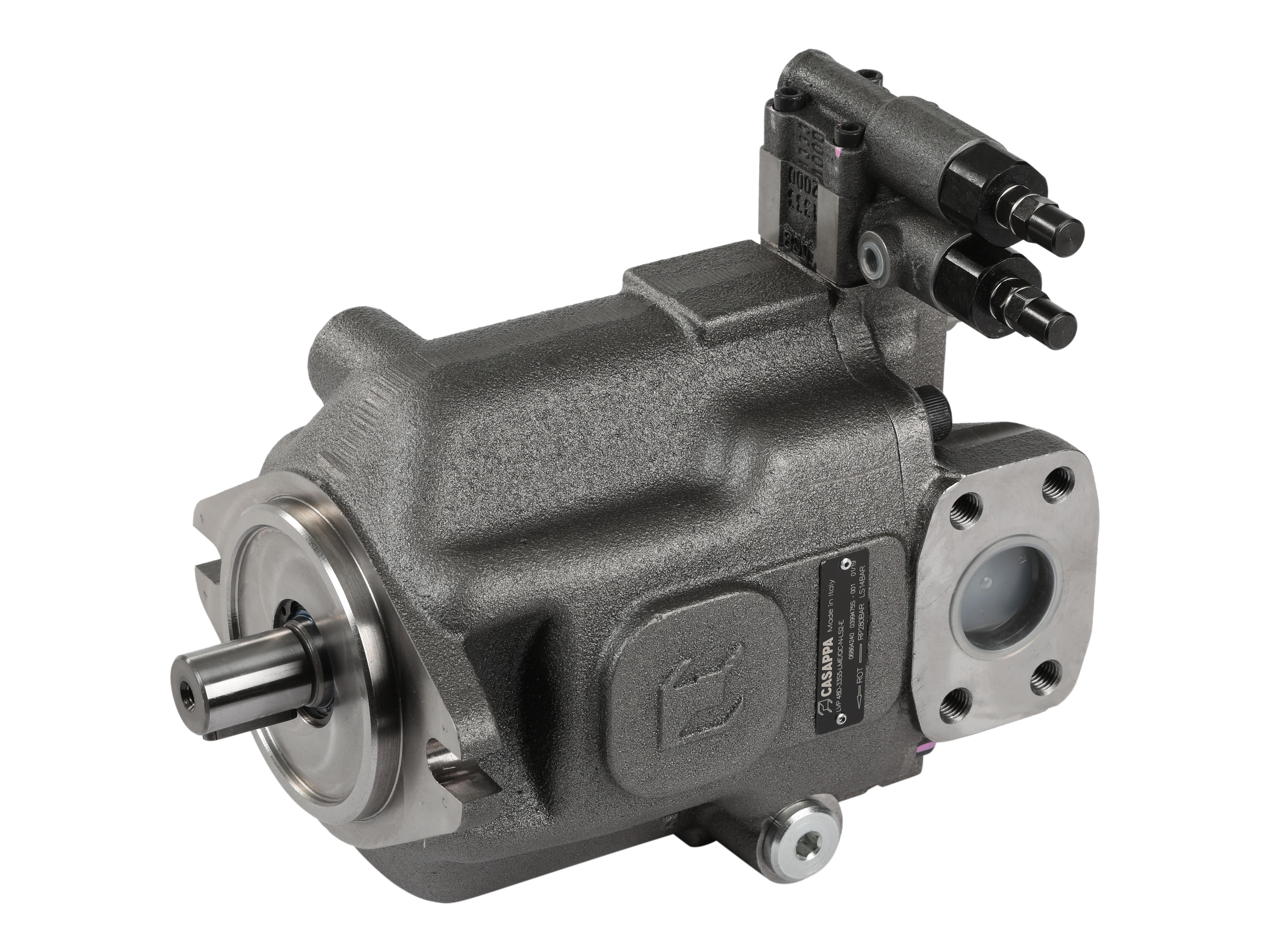

Piston pump, Casappa LVP

LVP30D-32S5-LMD/QB-N-LS0 Plata pump, Casappa

LVP30D-32S5-LMD/QB-N-LS2-E Plata pump, Casappa

LVP30D-04S5-LMD/QB-N-LS2-AS103 Plata pump, Casappa

LVP75D-06S7-LMF/QD-N-LS2-E

LVP75D-06S7-LMF/QD-N-RN0-AS504 25kw-2000rpm-240bar

SELECT VARIANT

Partnumber	Description	Displacement	Rotational speed max.	Pressure continous max.	Rotation direction
LVP30D1LS0-1	LVP30D-32S5-LMD/QB-N-LS0 Plata pump, Casappa	29 cm3	3000 rpm	280 bar	Right (CW)
LVP30D1LS2-1	LVP30D-32S5-LMD/QB-N-LS2-E Plata pump, Casappa	29 cm3	3000 rpm	280 bar	Right (CW)
LVP30D5LS2-1	LVP30D-04S5-LMD/QB-N-LS2-AS103 Plata pump, Casappa	29 cm3	3000 rpm	280 bar	Right (CW)
LVP75D5LS2-1	LVP75D-06S7-LMF/QD-N-LS2-E	73 cm3	2200 rpm	280 bar	Right (CW)
LVP75D5RN0B1	LVP75D-06S7-LMF/QD-N-RN0-AS504 25kw-2000rpm-240bar	73 cm3	2200 rpm	280 bar	Right (CW)

Brand Name

Casappa

Contamination level max.

18/16/13 - ISO 4406

Number of mounting holes

Oil viscocity recommended

15 - 35

Port position

Side

Pressure continous max.

280

Pressure intermittent max.

315

Pressure peak max.

350

Rotation direction

Right (CW)
