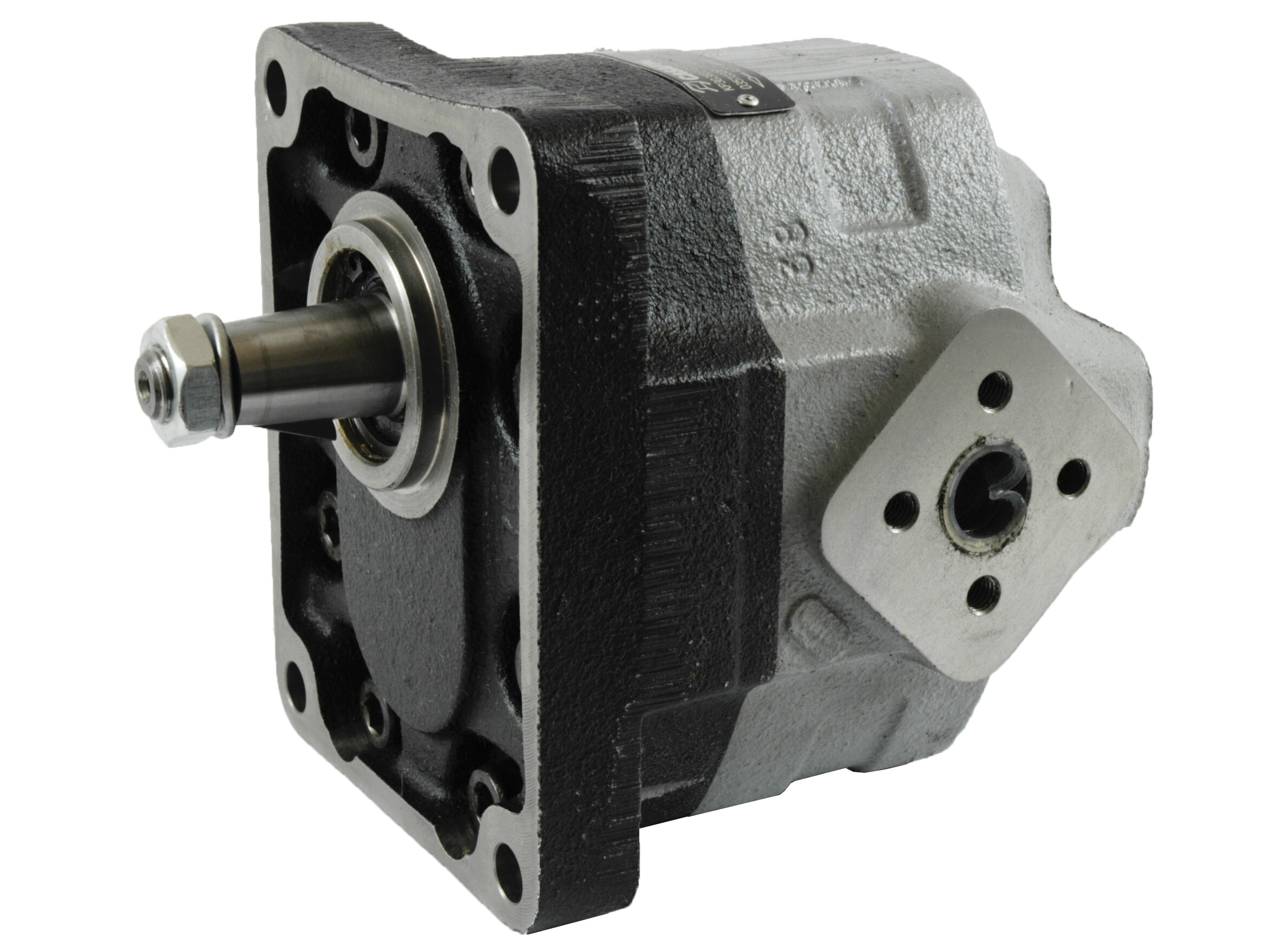

Gear pump, cast iron, Casappa KAPPA 30, EU flange, shaft 1:8

VÄLJ VARIANT

Artikelnummer	Beskrivning	Displacement	Pressure continous max.	Rotational speed max.	Rotation direction
03569800	KP30.27D0-83E3-LED/EB-N Kappa pump, Casappa	26.7 cm3	280 bar	3000 rpm	Right (CW)
03570000	KP30.34D0-83E3-LED/EB-N Kappa pump, Casappa	34.56 cm3	260 bar	3000 rpm	Right (CW)
03570500	KP30.43D0-83E3-LED/EB-N Kappa pump, Casappa	43.98 cm3	250 bar	3000 rpm	Right (CW)

Brand Name

Casappa

Contamination level max.

19/17/14 - ISO 4406

Material

Cast iron

Mounting flange

EU51 - 128x98

Number of mounting holes

Oil viscocity recommended

12 - 100

Port inlet

EU51

Port outlet

EU40

Pump group

Recess

51,0

Rotation direction

Right (CW)

Rotational speed max.

3000

Shaft cone

1:8

Shaft keyway

4,0

Shaft type

Tapered
