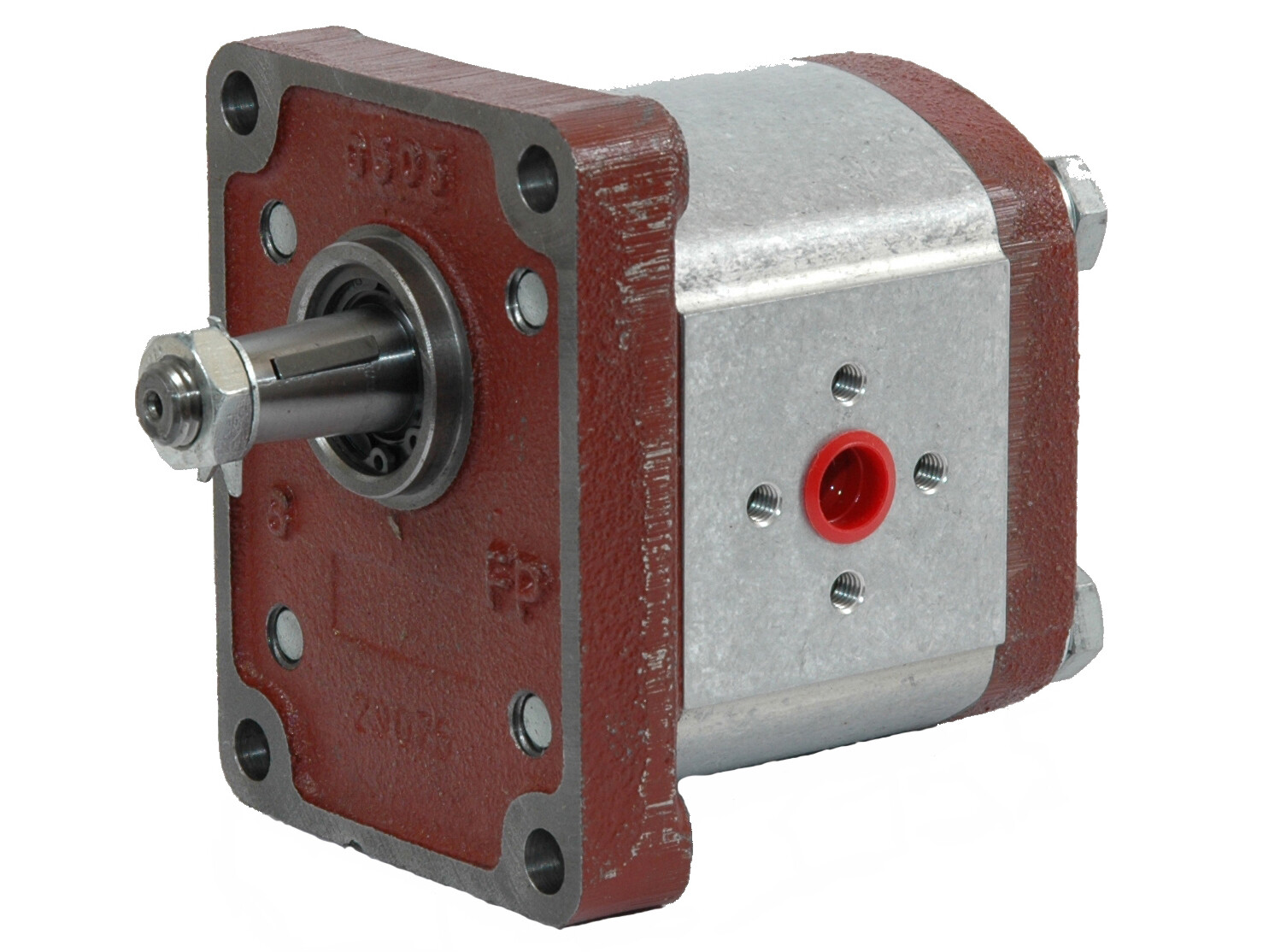

Gear pump gr.2 - Galtech 2SPG, EU flange, shaft 1:8

Gear pump gr.2 - Galtech 2SPG, EU flange, shaft 1:8

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
2SPG16-S 2SPG16-S-10-N Hydraulic pump, Galtech alu 16.5 cm3 230 bar 3500 rpm Right (CW)
2SPG22-S 2SPG22-S-10-N Hydraulic pump, Galtech steel 22.5 cm3 190 bar 2800 rpm Left (CCW)
Brand Name
Walvoil
Contamination level max.
20/18/15 - ISO 4406
Mounting flange
EU37 - 96x72
Number of mounting holes
4
Oil viscocity recommended
15 - 92
Port inlet
EU40
Port outlet
EU30
Pump group
2
Recess
37,0
Shaft cone
1:8
Shaft keyway
3,2
Shaft type
Tapered
Torque input
9.8
