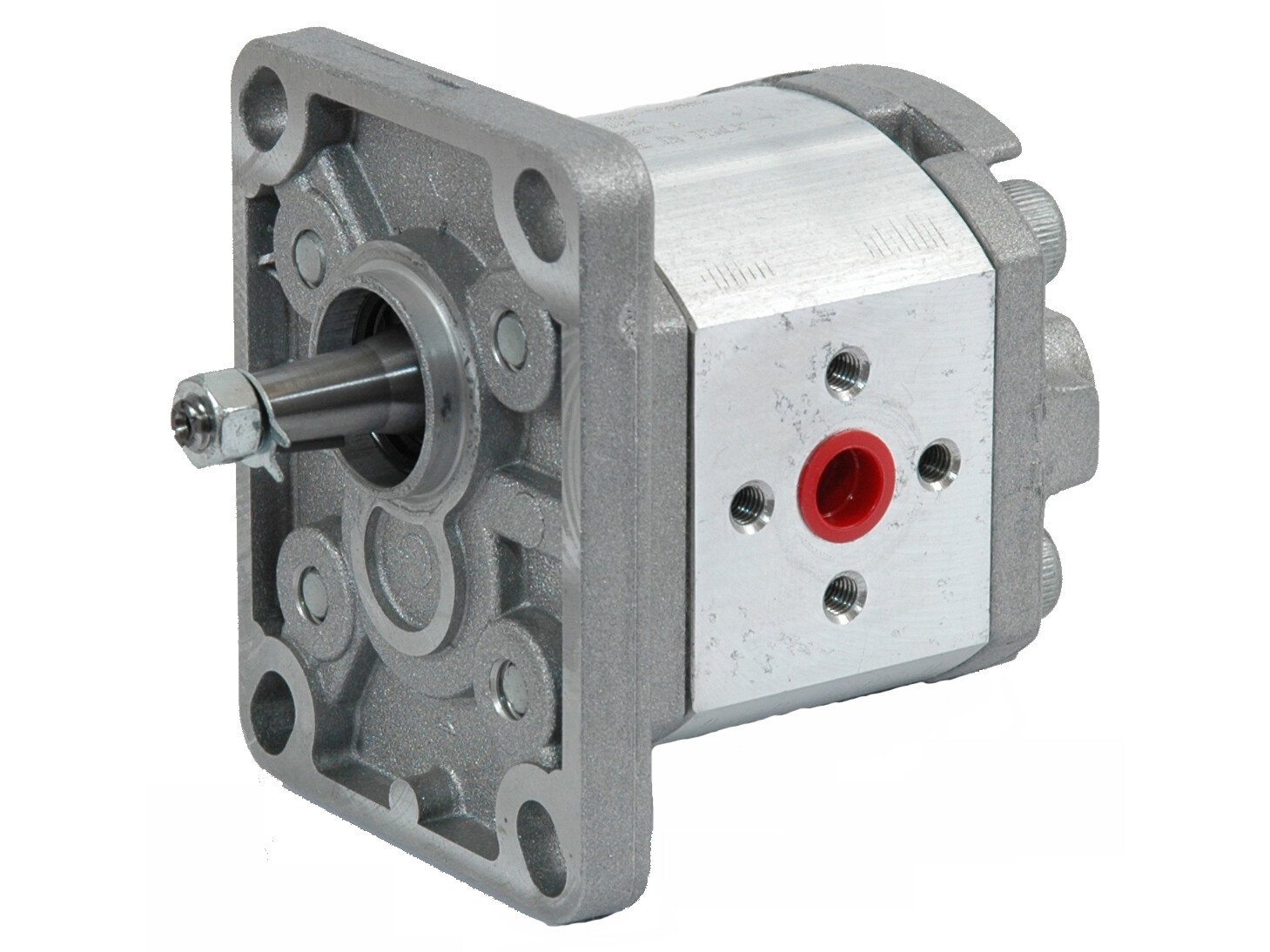

Gear pump gr.1 - Galtech 1SPA, EU flange, shaft 1:8

Gear pump gr.1 - Galtech 1SPA, EU flange, shaft 1:8

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Pressure continous max. Rotational speed max. Rotation direction
1GP10010006 Pump 1SP-A-009-D-EUR-B-N-10-0-T 0.89 cm3 260 bar 4000 rpm Right (CW)
1GP10010093 Pump 1SP-A-020-D-EUR-B-N-10-0-T 2 cm3 260 bar 4000 rpm Right (CW)
1GP10010131 Pump 1SP-A-025-D-EUR-B-N-10-0-T 2.5 cm3 260 bar 4000 rpm Right (CW)
1GP10010172 Pump 1SP-A-032-D-EUR-B-N-10-0-T 3.2 cm3 260 bar 4000 rpm Right (CW)
1GP10010245 Pump 1SP-A-042-D-EUR-B-N-10-0-T 4.2 cm3 250 bar 4000 rpm Right (CW)
1GP10010280 Pump 1SP-A-050-D-EUR-B-N-10-0-T 5 cm3 250 bar 4000 rpm Right (CW)
1GP10010318 Pump 1SP-A-063-D-EUR-B-N-10-0-T 6.3 cm3 170 bar 4000 rpm Right (CW)
1GP10010357 Pump 1SP-A-078-D-EUR-B-N-10-0-T 7.76 cm3 170 bar 4000 rpm Right (CW)
1GP10010380 Pump 1SP-A-098-D-EUR-B-N-10-0-T 9.78 cm3 150 bar 4000 rpm Right (CW)
1SPA1.2-D 1SPA1,2-D-10-NN Hydraulic pump, Galtech alu 1.2 cm3 240 bar 6000 rpm Right (CW)
1SPA2.5-D 1SPA2,5-D-10-NN Hydraulic pump, Galtech alu 2.5 cm3 220 bar 5000 rpm Right (CW)
Brand Name
Walvoil
Mounting flange
EU25 - 72x52
Number of mounting holes
4
Oil viscocity recommended
15 - 92
Pump group
1
Recess
25,0
Rotation direction
Right (CW)
Shaft cone
1:8
Shaft keyway
2,4
Shaft type
Tapered
