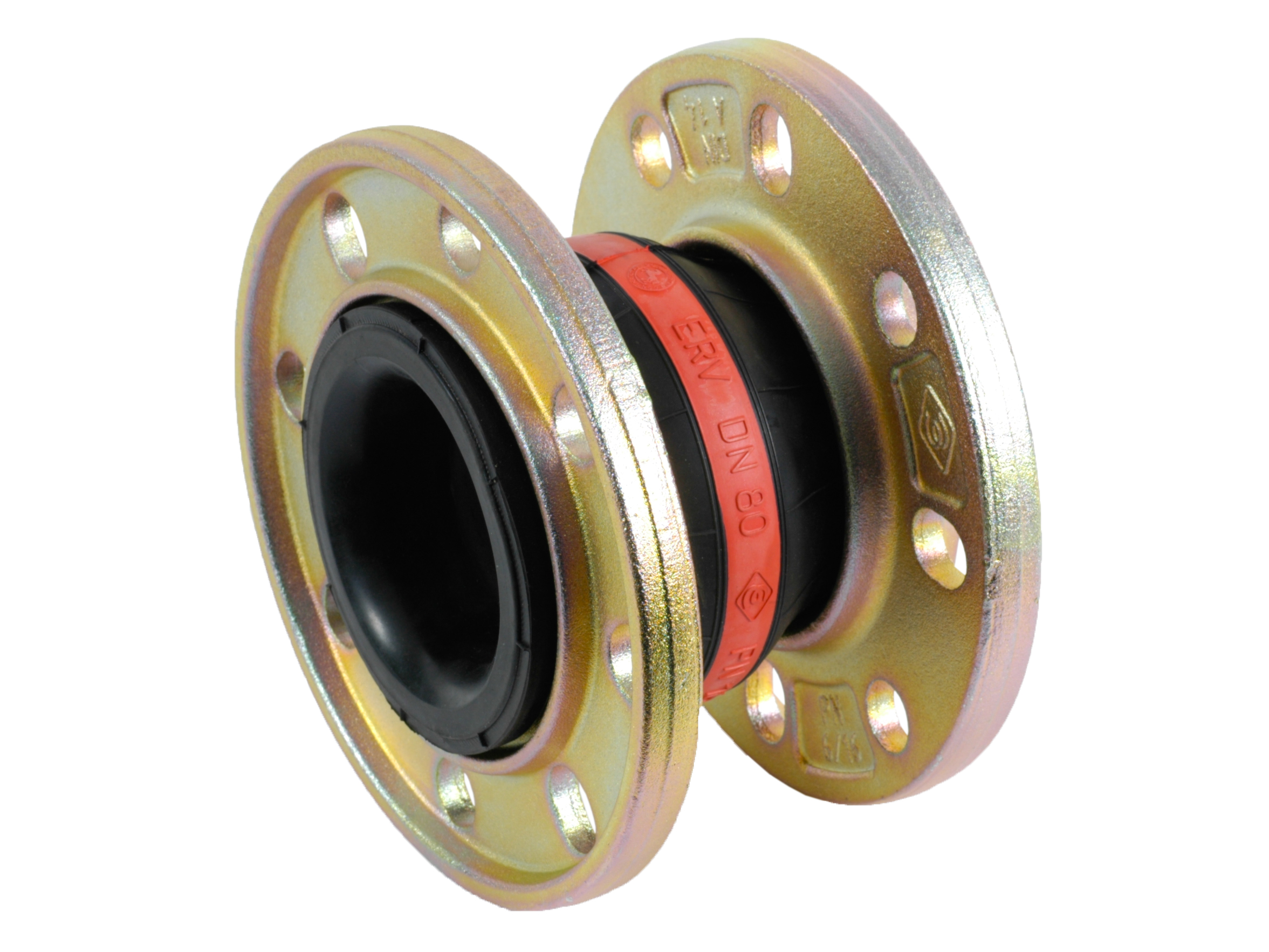

Rubber compensators Elaflex ERV-R

Rubber compensators Elaflex ERV-R

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter flange Size Diameter Bolt hole
0402040025 Elaflex pipe connection type Rotring. 115 mm 25 mm 14,0 mm
0402040032 Elaflex pipe connection type Rotring. 140 mm 32 mm 18,0 mm
0402040040 Elaflex pipe connection type Rotring. 150 mm 40 mm 18,0 mm
0402040050 Elaflex pipe connection type Rotring. 165 mm 50 mm 18,0 mm
0402040065 Elaflex pipe connection type Rotring ERV-R 65.16 185 mm 65 mm 18,0 mm
0402040080 Elaflex pipe connection type Rotring ERV-R 80.16 200 mm 80 mm 18,0 mm
0402040100 Elaflex pipe connection type Rotring. 220 mm 100 mm 18,0 mm
0402040125 Elaflex pipe connection type Rotring. 250 mm 125 mm 18,0 mm
0402040150 Elaflex pipe connection type Rotring. 285 mm 150 mm 22,0 mm
0402040200 Elaflex pipe connection type Rotring. 340 mm 200 mm 22,0 mm
0402040250 Elaflex pipe connection type Rotring. 395 mm 250 mm 22,0 mm
0402040300 Elaflex pipe connection type Rotring. 445 mm 300 mm 22,0 mm
Brand Name
Elaflex
Temperature intermittent max.
+120
Temperature max.
+100
Temperature min.
-40
Total length
130
