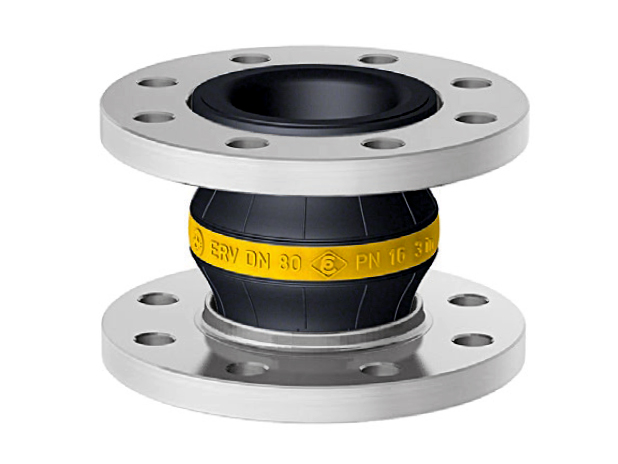

Rubber compensators Elaflex ERV-G

Rubber compensators Elaflex ERV-G

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter flange Size Diameter Bolt hole
0402020025 Elaflex pipe connection type gelbring ERV-G 25.16 115 mm 25 mm 14,0 mm
0402020032 Elaflex pipe connection type gelbring ERV-G 32.16 140 mm 32 mm 18,0 mm
0402020040 Elaflex pipe connection type Gelbring. 150 mm 40 mm 18,0 mm
0402020050 Elaflex pipe connection type Gelbring. 165 mm 50 mm 18,0 mm
0402020065 Elaflex pipe connection type Gelbring. 185 mm 65 mm 18,0 mm
0402020080 Elaflex pipe connection type gelbring ERV-G 80.16 200 mm 80 mm 18,0 mm
0402020100 Elaflex pipe connection type Gelbring ERV-G 100.16 220 mm 100 mm 18,0 mm
0402020125 Elaflex pipe connection type Gelbring ERV-G 125.16 250 mm 125 mm 18,0 mm
0402020150 Elaflex pipe connection type Gelbring. 285 mm 150 mm 22,0 mm
0402020200 Elaflex pipe connection type Gelbring. 340 mm 200 mm 22,0 mm
0402020250 Elaflex pipe connection type ¤ Gelbring. 395 mm 250 mm 22,0 mm
0402020300 Elaflex pipe connection type Gelbring. 445 mm 300 mm 22,0 mm
0402027041 Elaflex pipe connection type Gelbring. With stainl. flange 150 mm 40 mm 18,0 mm
Brand Name
Elaflex
Temperature intermittent max.
+100
Temperature max.
+90
Temperature min.
-20
Total length
130
