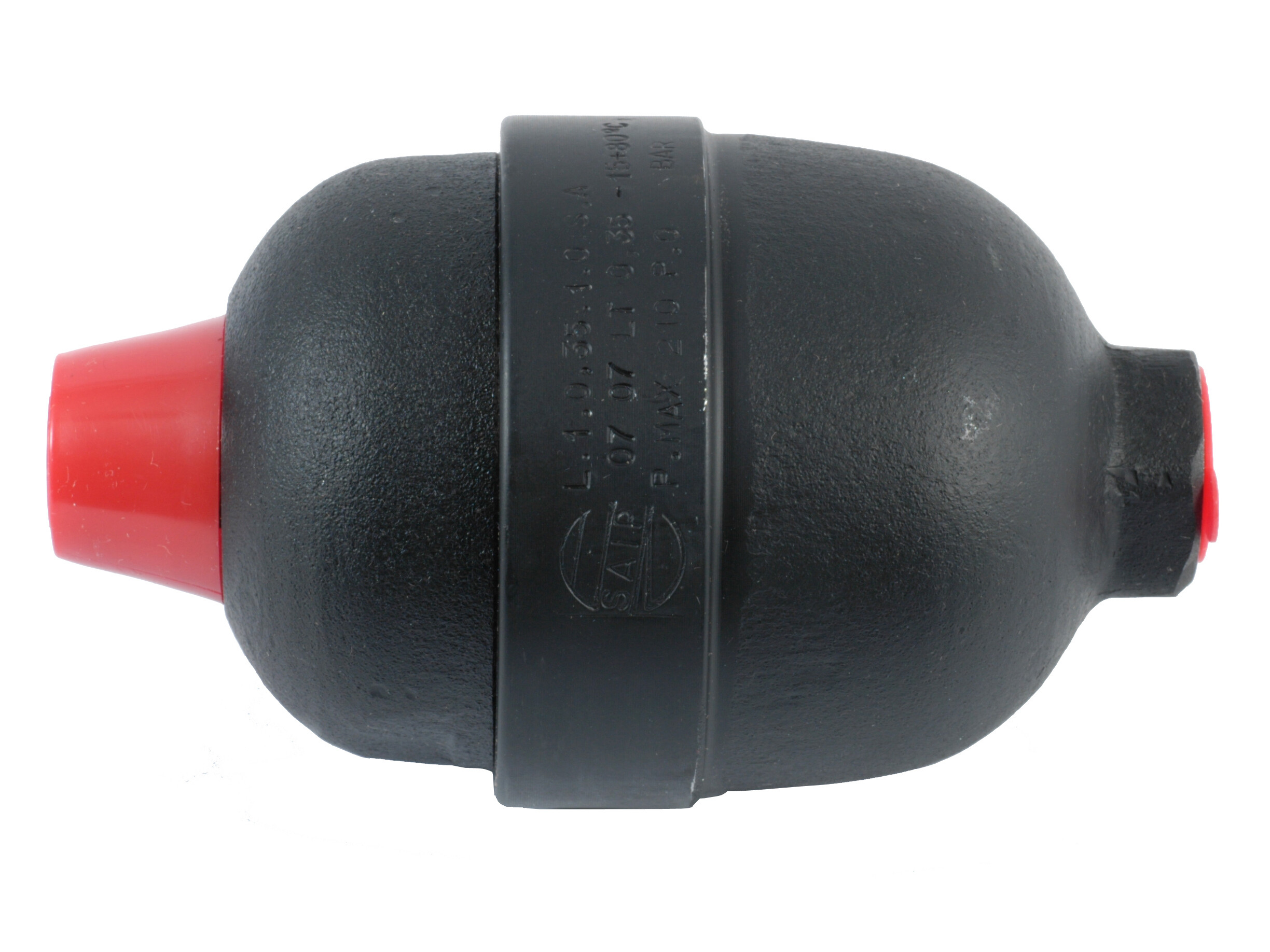

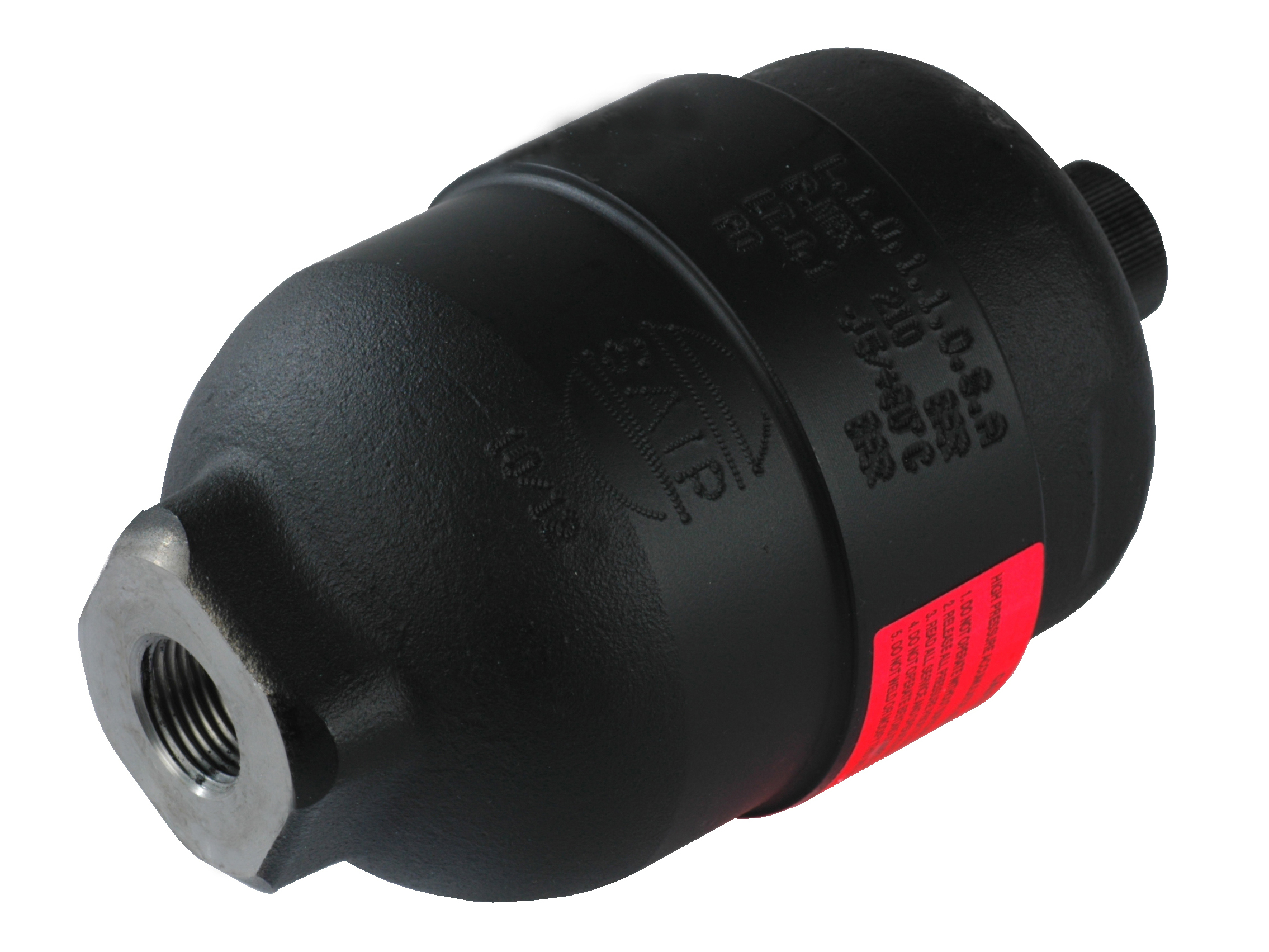

Membrane accumulator type L

Diaphragm accumulator with replaceable diaphragm and 5/8" UNF gas connection. Operating pressure up to 210 bar and pressure differential ratio up to 6:1. Suitable for both industrial and mobile hydraulic systems. Available in volumes from 0.1 to 0.35 liters.

SELECT VARIANT
Partnumber Description Volume Pressure max. Pressure difference ratio max. Diameter
L0.1 Saip accumulator 6:1 210 bar Replaceable diaphragm, M18x1, 0.1 ltr 210 bar 6:1 77 mm
L0.35 Saip accumulator 6:1 210 bar Replaceable diaphragm, M18x1, 0.35 ltr 210 bar 6:1 100 mm
Brand Name
Saip

Gas valve
M18x1,5

Material
Carbon steel

Precharge pressure
2

Pressure difference ratio max.
6:1

Pressure max.
210

Separating Element
NBR

Temperature max.
+150

Temperature min.
-40

Test Standards
EN13445-3 + PED

Thread
5/8-18

Type
Membrane

Diaphragm accumulator with replaceable diaphragm and 5/8" UNF gas connection. Operating pressure up to 210 bar and pressure differential ratio up to 6:1. Suitable for both industrial and mobile hydraulic systems. Available in volumes from 0.1 to 0.35 liters.
