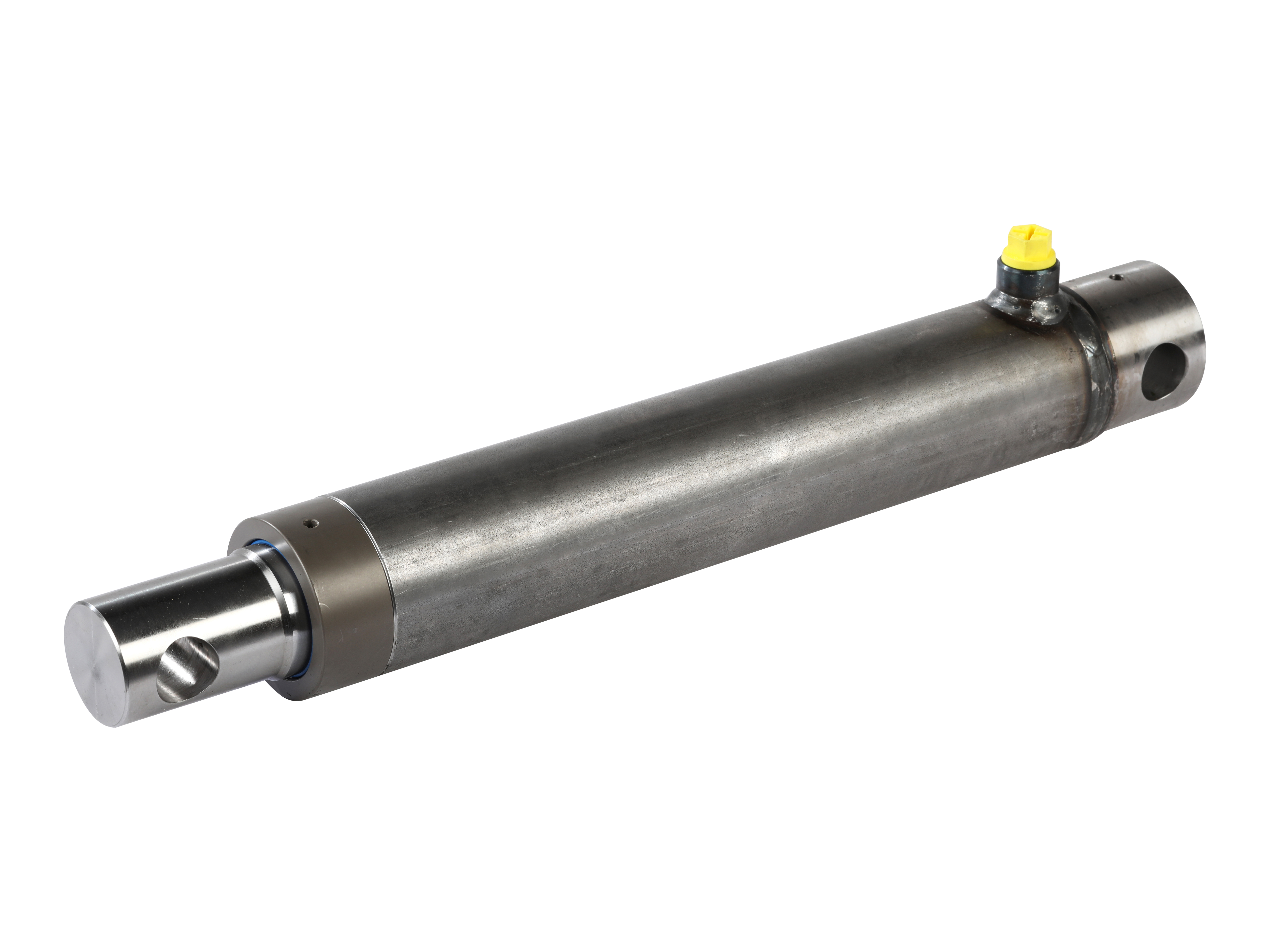

HFRT single acting cylinder

HFRT single acting cylinder

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter inner cylinder Diameter outer Diameter rod Diameter eye
HFRT125100 Single acting cylinder Ø25x100 30 mm 40 mm 25 mm 14.1 mm
HFRT125150 Single acting cylinder Ø25x150 30 mm 40 mm 25 mm 14.1 mm
HFRT125200 Single acting cylinder Ø25x200 30 mm 40 mm 25 mm 14.1 mm
HFRT125250 Single acting cylinder Ø25x250 30 mm 40 mm 25 mm 14.1 mm
HFRT230200 Single acting cylinder Ø30x200 40 mm 50 mm 30 mm 16.2 mm
HFRT230300 Single acting cylinder Ø30x300 40 mm 50 mm 30 mm 16.2 mm
HFRT230350 Single acting cylinder Ø30x350 40 mm 50 mm 30 mm 16.2 mm
HFRT230400 Single acting cylinder Ø30x400 40 mm 50 mm 30 mm 16.2 mm
HFRT230550 Single acting cylinder Ø30x550 40 mm 50 mm 30 mm 16.2 mm
HFRT340250 Single acting cylinder Ø40x250 50 mm 60 mm 40 mm 23.1 mm
HFRT340300 Single acting cylinder Ø40x300 50 mm 60 mm 40 mm 23.1 mm
HFRT340400 Single acting cylinder Ø40x400 50 mm 60 mm 40 mm 23.1 mm
HFRT450300 Single acting cylinder Ø50x300 60 mm 70 mm 50 mm 25.5 mm
HFRT450400 Single acting cylinder Ø50x400 60 mm 70 mm 50 mm 25.5 mm
HFRT450550 Single acting cylinder Ø25x100 60 mm 70 mm 50 mm 25.5 mm
HFRT560200 Single acting cylinder Ø60x200 70 mm 80 mm 60 mm 25.25 mm
HFRT560300 Single acting cylinder Ø60x300 70 mm 80 mm 60 mm 25.25 mm
HFRT560400 Single acting cylinder Ø60x400 70 mm 80 mm 60 mm 25.25 mm
HFRT560700 Single acting cylinder Ø60x700 70 mm 80 mm 60 mm 25.25 mm
Brand Name
Contarini Leopold
Dimension E
G 3/8
Pressure max.
210
Surface treatment
Uncoated
