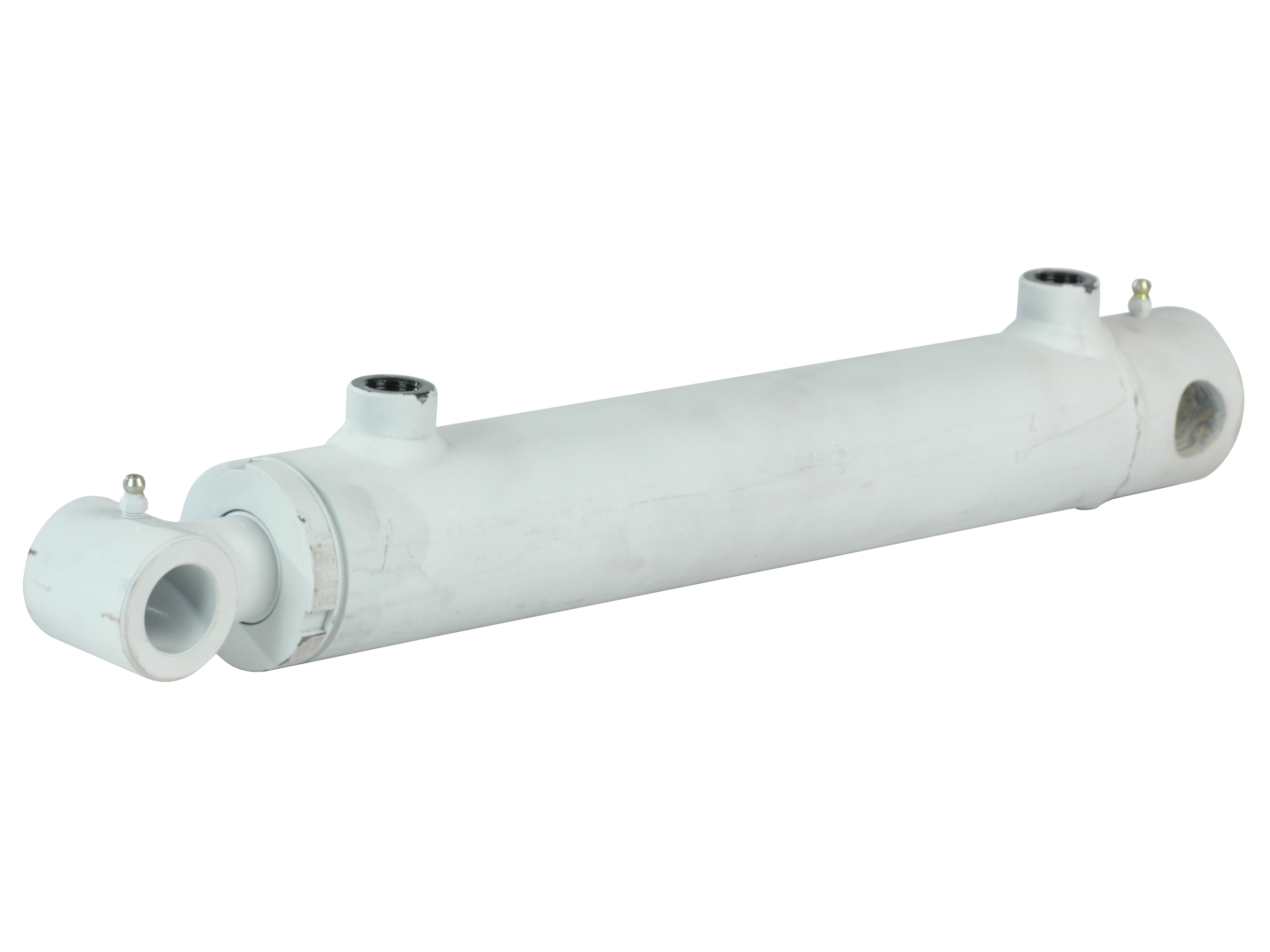

D-ST Cylinder

D35/70x600 double acting cylinder bush D30,4mm, BSP 3/8''

D40/80x400 double acting cylinder bush D30,4mm, BSP 3/8''

D40/80x500 double acting cylinder bush D30,4mm, BSP 3/8''

D40/80x600 double acting cylinder bush D30,4mm, BSP 3/8''

D40/80x700 double acting cylinder bush D30,4mm, BSP 3/8''

D40/80x800 double acting cylinder bush D30,4mm, BSP 3/8''

D50/80x900 double acting cylinder bush D30,4mm, BSP 3/8''

SELECT VARIANT

Partnumber	Description	Pressure max.	Diameter inner cylinder	Stroke
D3570600ST	D35/70x600 double acting cylinder bush D30,4mm, BSP 3/8''	250 bar	70 mm	600 mm
D4080400ST	D40/80x400 double acting cylinder bush D30,4mm, BSP 3/8''	250 bar	80 mm	400 mm
D4080500ST	D40/80x500 double acting cylinder bush D30,4mm, BSP 3/8''	250 bar	80 mm	500 mm
D4080600ST	D40/80x600 double acting cylinder bush D30,4mm, BSP 3/8''	250 bar	80 mm	600 mm
D4080700ST	D40/80x700 double acting cylinder bush D30,4mm, BSP 3/8''	250 bar	80 mm	700 mm
D4080800ST	D40/80x800 double acting cylinder bush D30,4mm, BSP 3/8''	250 bar	80 mm	800 mm
D5080900ST	D50/80x900 double acting cylinder bush D30,4mm, BSP 3/8''	250 bar	80 mm	900 mm

Diameter eye

30.4

Dimension H

30.4

Dimension L

Dimension M

Dimension N

30.4

Pressure max.

250

Thread

G 3/8
