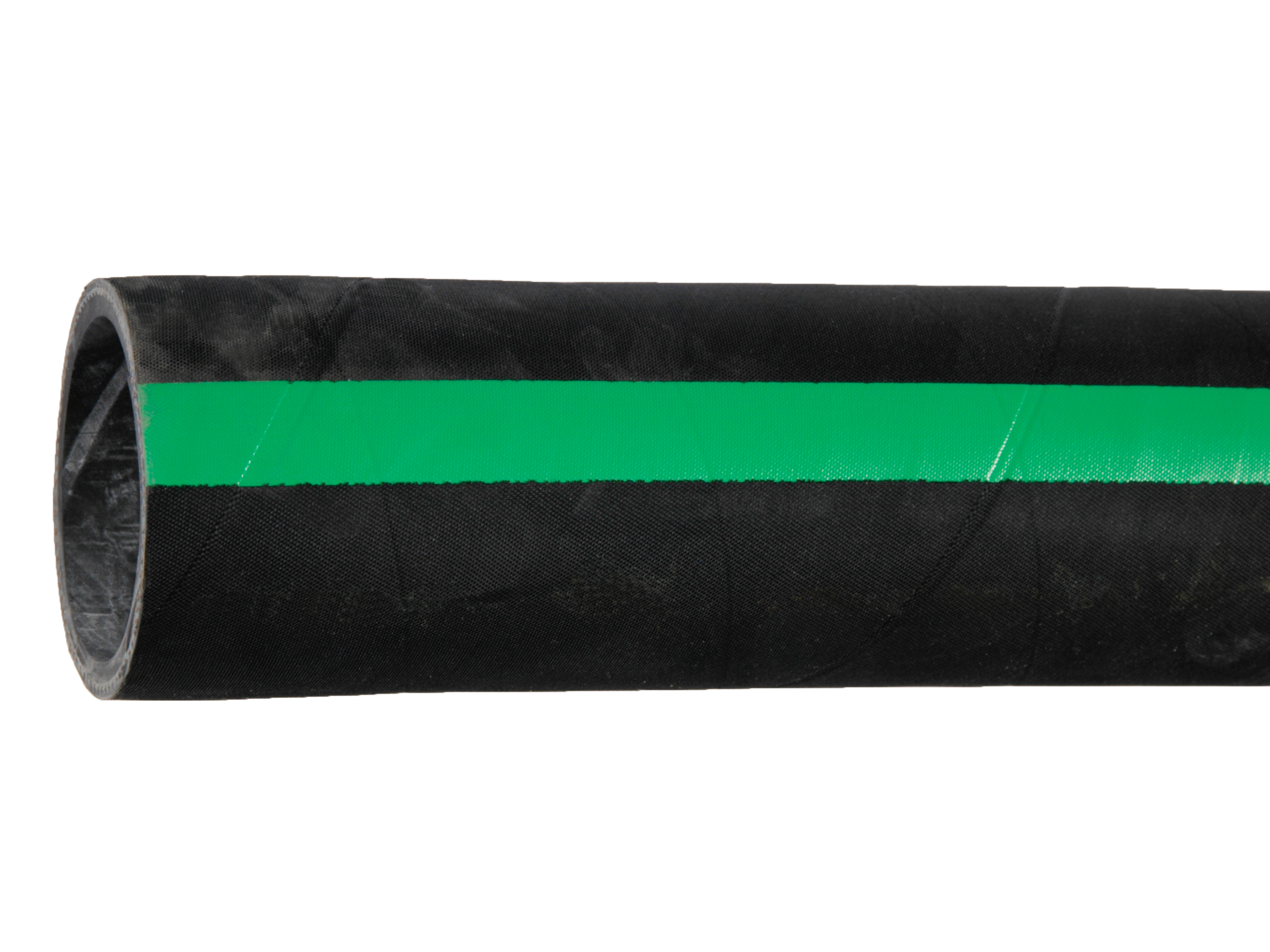

0114124 - Green stripe cooler hose

0114124 - Green stripe cooler hose

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Bend radius Diameter outer Diameter inner
0114124010 Green Stripe cooler hose Dim. 3/8" (10mm) LGD=1MTR 60 mm 18 mm 10 mm
0114124013 Green Stripe cooler hose Dim. 1/2" (13mm) LGD=1MTR 80 mm 21 mm 13 mm
0114124015 Green Stripe cooler hose Dim. 5/8" (16mm) LGD=1MTR 100 mm 24 mm 16 mm
0114124019 Green Stripe cooler hose Dim. 3/4" (19mm) LGD=1MTR 120 mm 27 mm 19 mm
0114124022 Green Stripe cooler hose Dim. 7/8" (22mm) LGD=1MTR 135 mm 30 mm 22 mm
0114124025 Green Stripe cooler hose Dim. 1" (25mm) LGD=1MTR 150 mm 33 mm 25 mm
0114124028 Green Stripe cooler hose Dim. 1.1/8" (28mm) LGD=1MTR 170 mm 38 mm 28 mm
0114124030 Green Stripe cooler hose Dim. 1.3/16" (30mm) LGD=1MTR 180 mm 40 mm 30 mm
0114124032 Green Stripe cooler hose Dim. 1.1/4" (32mm) LGD=1MTR 195 mm 42 mm 32 mm
0114124035 Green Stripe cooler hose Dim. 1.3/8" (35mm) LGD=1MTR 210 mm 45 mm 35 mm
0114124038 Green Stripe cooler hose Dim. 1.1/2" (38mm) LGD=1MTR 240 mm 48 mm 38 mm
0114124040 Green Stripe cooler hose Dim. 1.9/16" (40mm) LGD=1MTR 240 mm 50 mm 40 mm
0114124042 Green Stripe cooler hose Dim. 1.5/8" (42mm) LGD=1MTR 255 mm 52 mm 42 mm
0114124045 Green Stripe cooler hose Dim. 1.3/4" (45mm) LGD=1MTR 270 mm 55 mm 45 mm
0114124050 Green Stripe cooler hose Dim. 2" (51mm) LGD=1MTR 300 mm 61 mm 51 mm
0114124054 Green Stripe cooler hose Dim. 2.3/16" (55mm) LGD=1MTR 350 mm 65 mm 55 mm
0114124057 Green Stripe cooler hose Dim. 2.1/4" (57mm) LGD=1MTR 360 mm 67 mm 57 mm
0114124060 Green Stripe cooler hose Dim. 2.3/8" (60mm) LGD=1MTR 380 mm 70 mm 60 mm
0114124063 Para Flex material hose Dim. 2 (51x66mm) 400 mm 73.5 mm 63 mm
0114124070 Green Stripe cooler hose Dim. 2.3/4" (70mm) LGD=1MTR 450 mm 80 mm 70 mm
0114124075 Green Stripe cooler hose Dim. 3" (75mm) LGD=1MTR 480 mm 86 mm 76 mm
0114124090 Green Stripe cooler hose Dim. 3 1/2" (90mm) LGD=1MTR 600 mm 100 mm 90 mm
