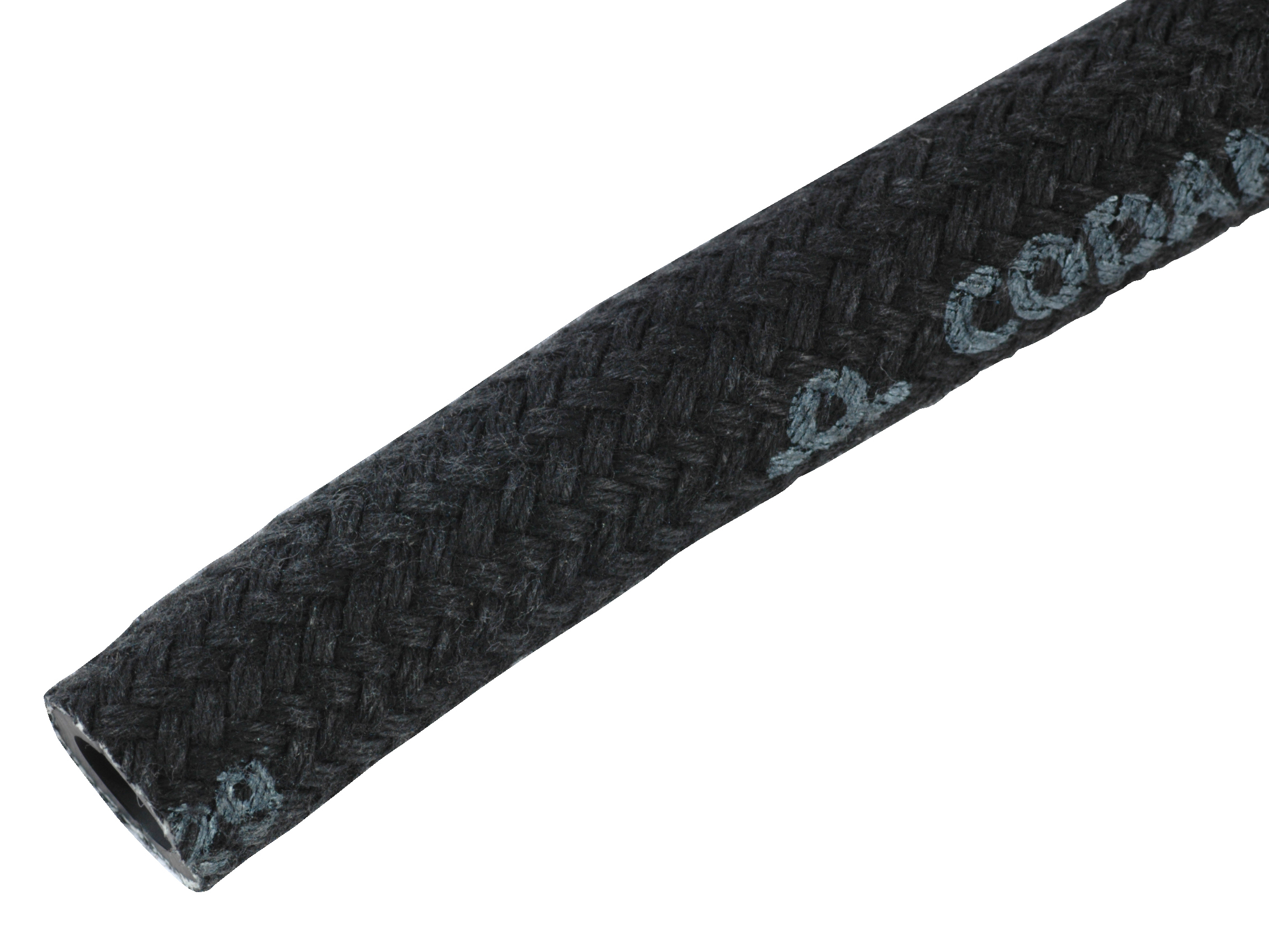

0112030 - Fuel hose with textile braid B

SELECT VARIANT
Partnumber Description Pressure max. Pressure burst min. Bend radius Diameter inner
0112030003 Fuel hose type B with textile briad on the outside. 13 bar 50 bar 20 mm 3.5 mm
0112030004 Fuel hose type B with textile briad on the outside. 11 bar 45 bar 20 mm 4.5 mm
0112030005 Fuel hose type B with textile briad on the outside. 10 bar 42 bar 20 mm 5 mm
0112030006 Fuel hose type B with textile briad on the outside. 10 bar 39 bar 20 mm 6 mm
0112030007 Fuel hose type B with textile briad on the outside. 9 bar 35 bar 30 mm 7.5 mm
0112030008 Fuel hose type B with textile briad on the outside. 8 bar 32 bar 30 mm 8 mm
0112030009 Fuel hose type B with textile briad on the outside. 6 bar 23 bar 40 mm 9 mm
0112030010 Fuel hose type B with textile briad on the outside. 6 bar 23 bar 40 mm 10 mm
0112030011 Fuel hose type B with textile briad on the outside. 5 bar 20 bar 40 mm 11 mm
Area of use
Diesel, Gasoline, Oil

Brand Name
Hydraspecma

Standard DIN
DIN 73379 B

Temperature max.
+100

Temperature min.
-30
