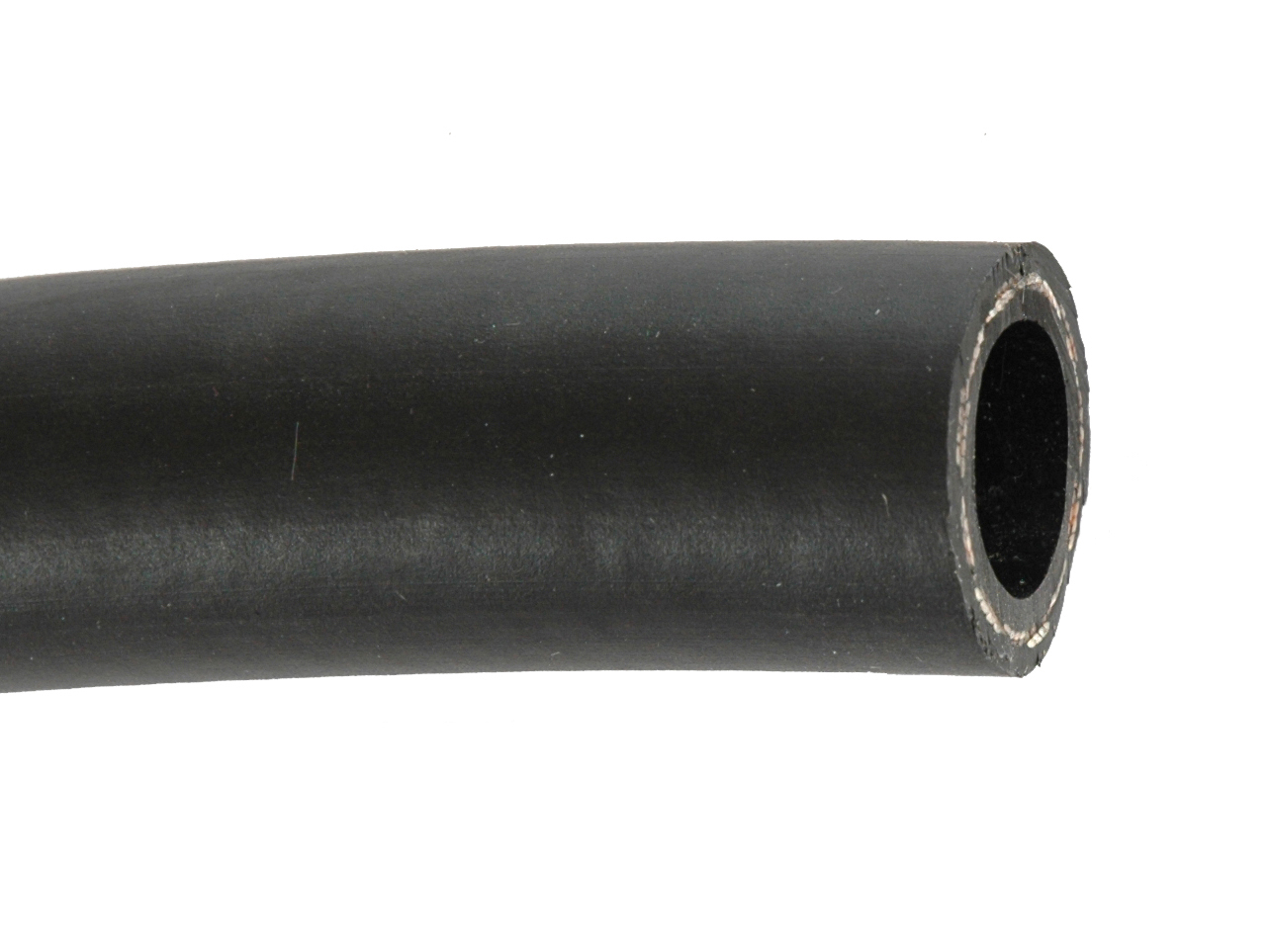

OLN - Low-pressure hose with textile reinforcement

Nw 2 hose with textile braid 04x10mm

Nw 3 hose with textile braid 05x11mm

Nw 4 hose with textile braid 06x12mm

Nw 6 hose with textile braid 08x14mm

Nw 8 hose with textile braid 9,5x15,5mm

Nw 10 hose with textile braid 12x19mm

SELECT VARIANT

Partnumber	Description	Diameter inner	Pressure max.	Pressure burst min.
OLN02	Nw 2 hose with textile braid 04x10mm	4 mm	70 bar	280 bar
OLN03	Nw 3 hose with textile braid 05x11mm	5 mm	70 bar	275 bar
OLN04	Nw 4 hose with textile braid 06x12mm	6 mm	55 bar	220 bar
OLN06	Nw 6 hose with textile braid 08x14mm	8 mm	40 bar	160 bar
OLN08	Nw 8 hose with textile braid 9,5x15,5mm	9.5 mm	35 bar	140 bar
OLN10	Nw 10 hose with textile braid 12x19mm	12 mm	45 bar	180 bar

Brand Name

Hydraspecma

Cover

Field of application

Air, Olie, Water

Material

NBR

Temperature intermittent max.

+140

Temperature max.

+125

Temperature min.

-40

Tube

NBR (Nitrile)
