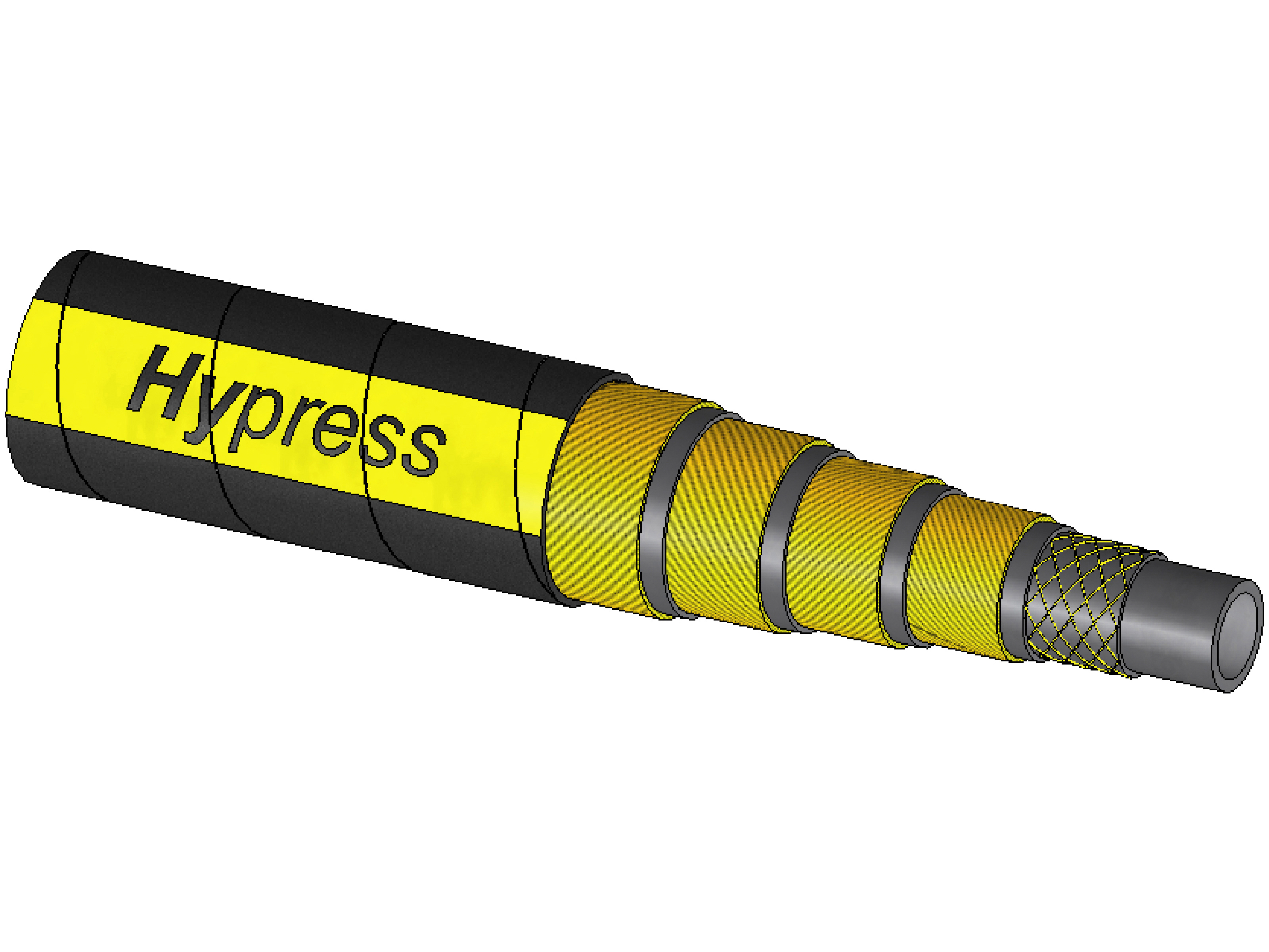

TFD4SH hydraulic hoses

TFD4SH hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
TFD4SH16 1" Hydraulic hose TFD - 385 bar - 4SH 1 " 385 bar TFD4SH 220 mm
TFD4SH20 1.1/4"" Hydraulic hose TFD - 350 bar - 4SH 1.1/4 " 350 bar TFD4SH 400 mm
TFD4SH24 1.1/2" Hydraulic hose TFD - 300 bar - 4SH 1.1/2 " 300 bar TFD4SH 560 mm
TFD4SH32 2" Hydraulic hose TFD - 250 bar - 4SH 2 " 250 bar TFD4SH 700 mm
Brand Name
I.M.M Hydraulics
Cover
Synthetic rubber
Flameresistant
Yes
Hose type
TFD4SH
Hoseapprovals
ABS, BV, CCS, DNV, GL, KR, LLOYD, MED, MSHA, NKK
Reinforcement
4 layer steel wire braid
Standard EN
EN 856 4SH
Standard ISO
ISO 3862 4SH
Temperature intermittent max.
+120
Temperature max.
+100
Temperature min.
-40
Tube
Synthetic rubber
