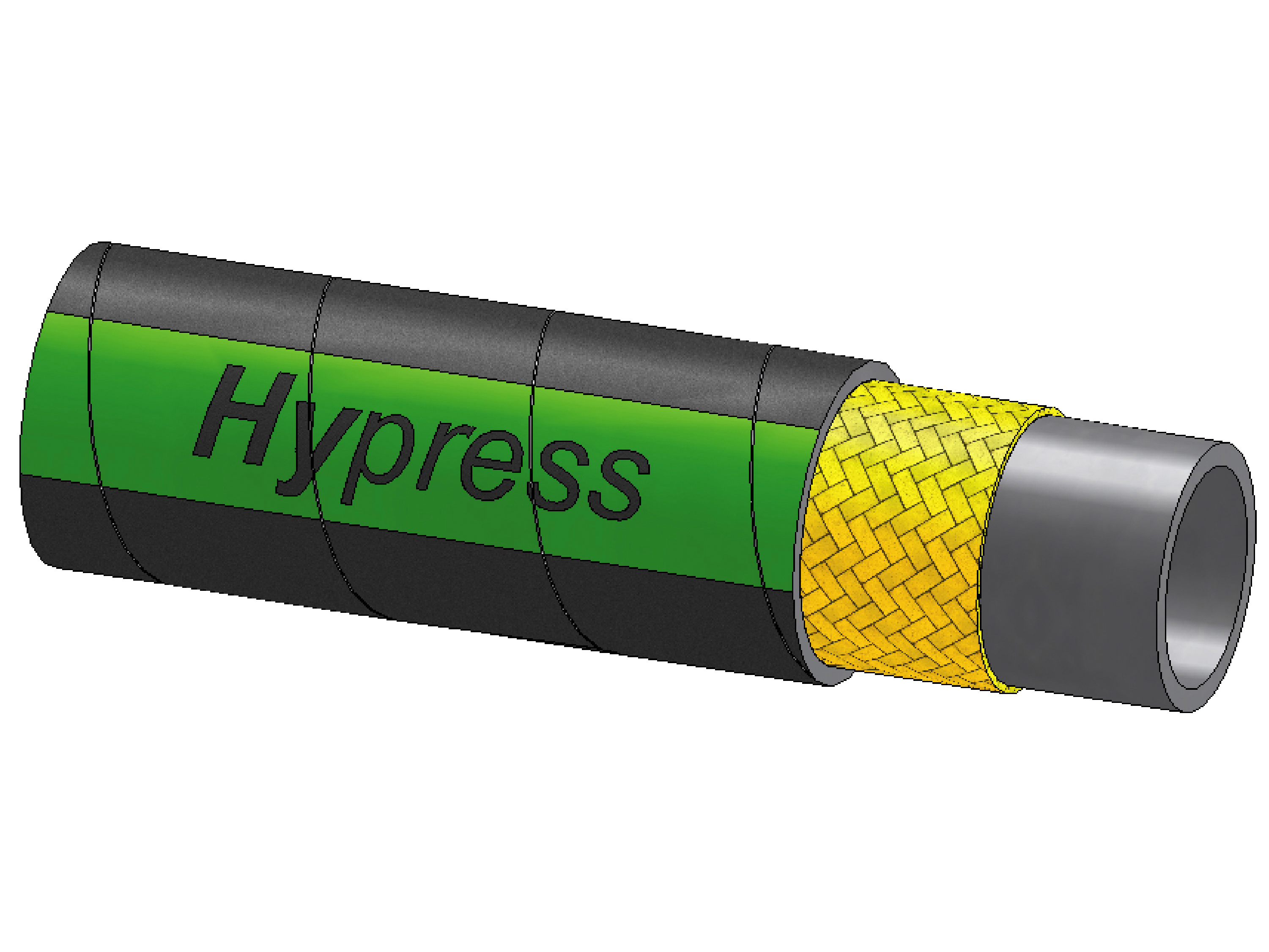

TFE1SC hydraulic hoses

SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
TFE1SC06 3/8" Hydraulic hose TFE - 180 bar - 1SC 3/8 " 180 bar 1SC 90 mm
TFE1SC08 1/2" Hydraulic hose TFE - 160 bar - 1SC 1/2 " 160 bar 1SC 130 mm
Area of use
Diesel, Grease, Oil, Water

Brand Name
I.M.M Hydraulics

Cover
Synthetic rubber

Hose type
1SC

Hoseapprovals
LLOYD

REACH compliant
Yes

Reinforcement
1 layer steel wire braid

RoHs compliant
Yes

Standard EN
EN 857 1SC

Standard ISO
ISO 11237 1SC

Temperature intermittent max.
+120

Temperature max.
+100

Temperature min.
-40

Tube
Synthetic rubber
