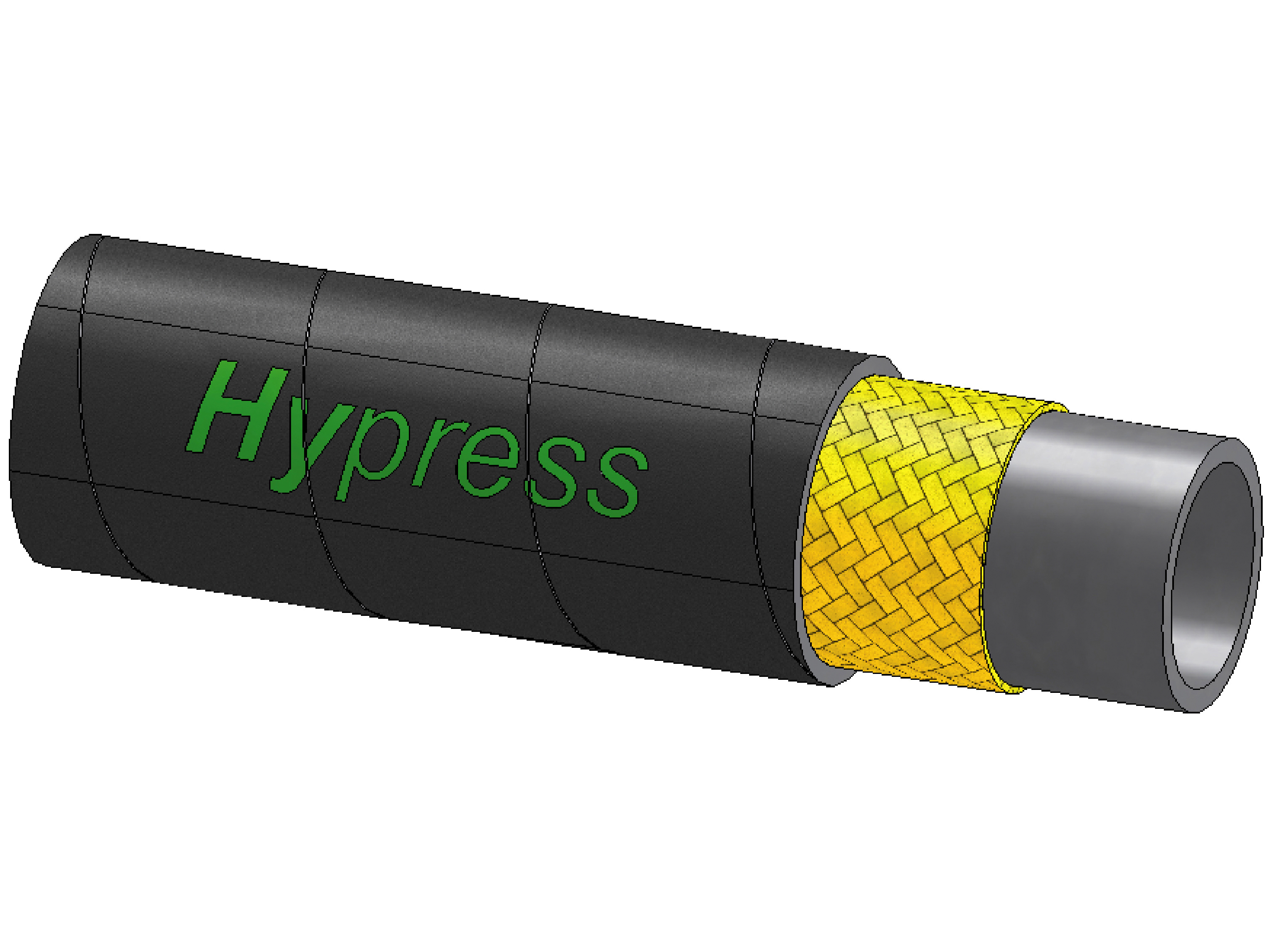

TFD1SN hydraulic hoses

TFD1SN hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
TFD1SN24 1.1/2" Hydraulic hose TFD - 50 bar - 1SN 1.1/2 " 50 bar 1SN 500 mm
TFD1SN32 2" Hydraulic hose TFD - 40 bar - 1SN 2 " 40 bar 1SN 630 mm
Area of use
Diesel, Grease, Oil, Water
Brand Name
I.M.M Hydraulics
Cover
Synthetic rubber
Hose type
1SN
Reinforcement
1 layer steel wire braid
Standard DIN
DIN 20022
Standard EN
EN 853 1SN
Standard ISO
ISO 1436
Standard SAE
SAE 100R1AT
Temperature intermittent max.
+120
Temperature max.
+100
Temperature min.
-40
Tube
Synthetic rubber
