Closing plug M10x1 WD 1.4571
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VSCH10/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Volz

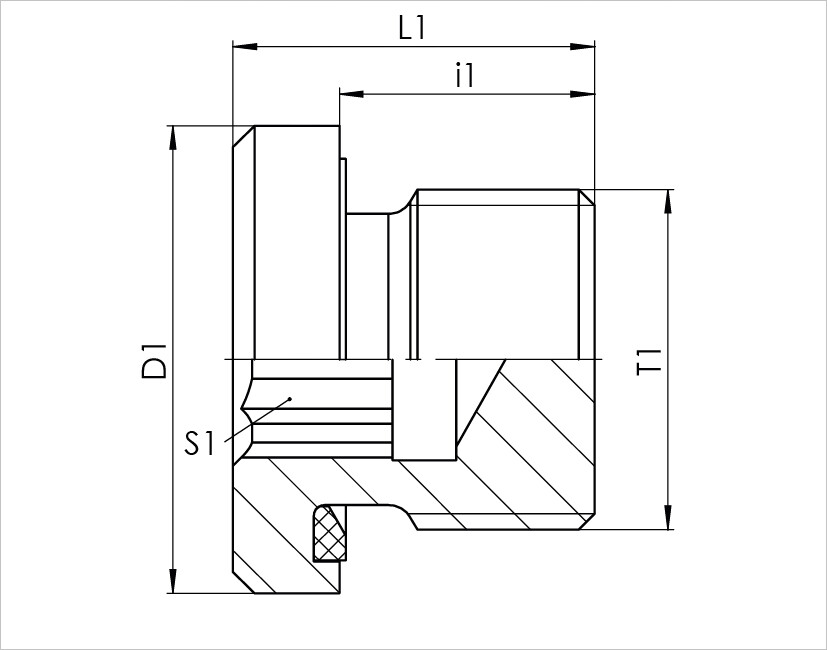

Dimension D1
14 mm
Dimension L1
12 mm
Dimension S1
5 mm
Dimension i
8 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
VSCH M10x1 WD
Pressure max.
400 bar
Sealing material
FKM/FPM (Viton®)
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread outer metric
M10x1
Pakke str.
0 pcs
Stregkode
5704295361833
Brutto vægt
0,01 Kg
Netto vægt
0,01 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
