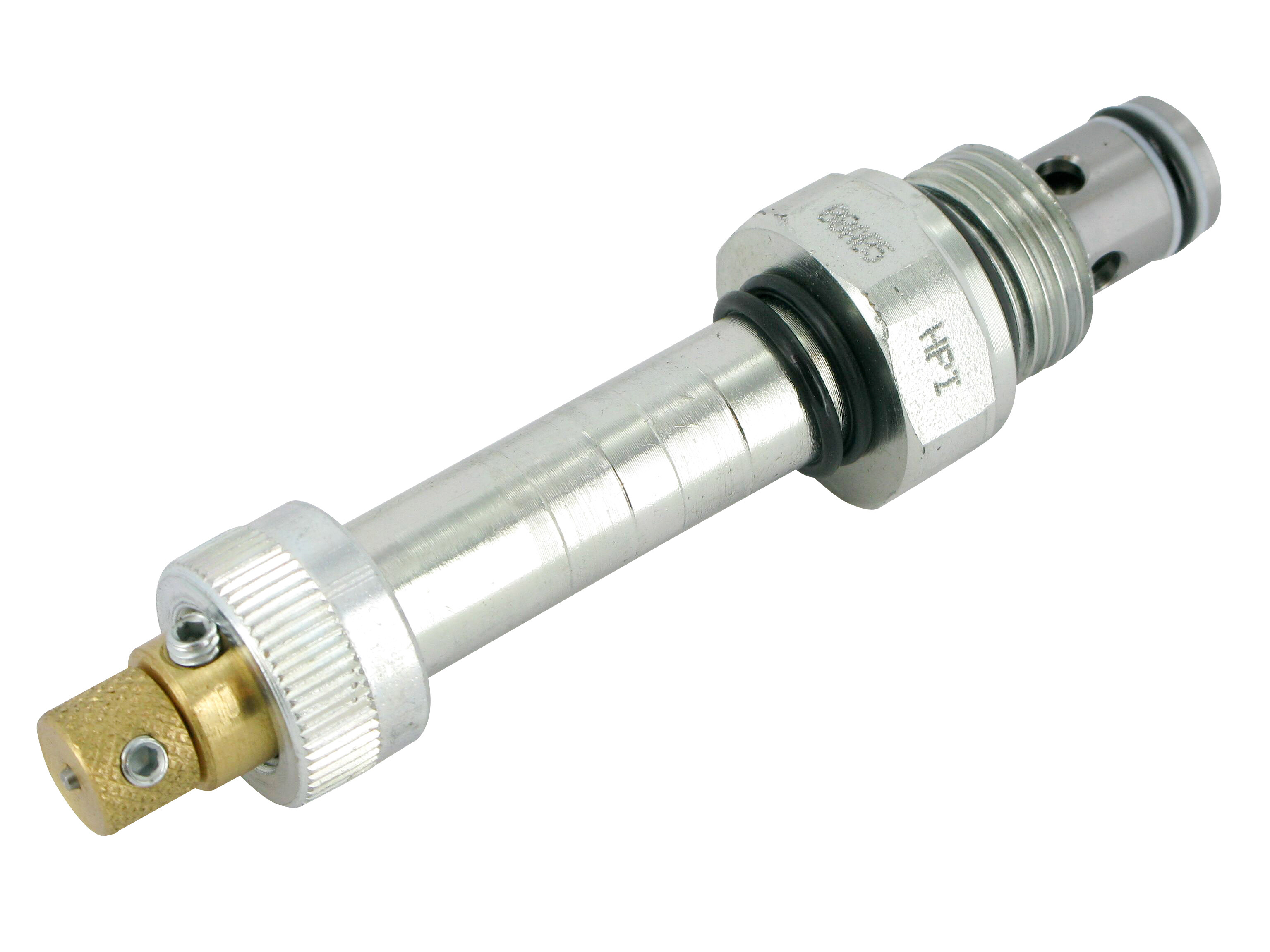

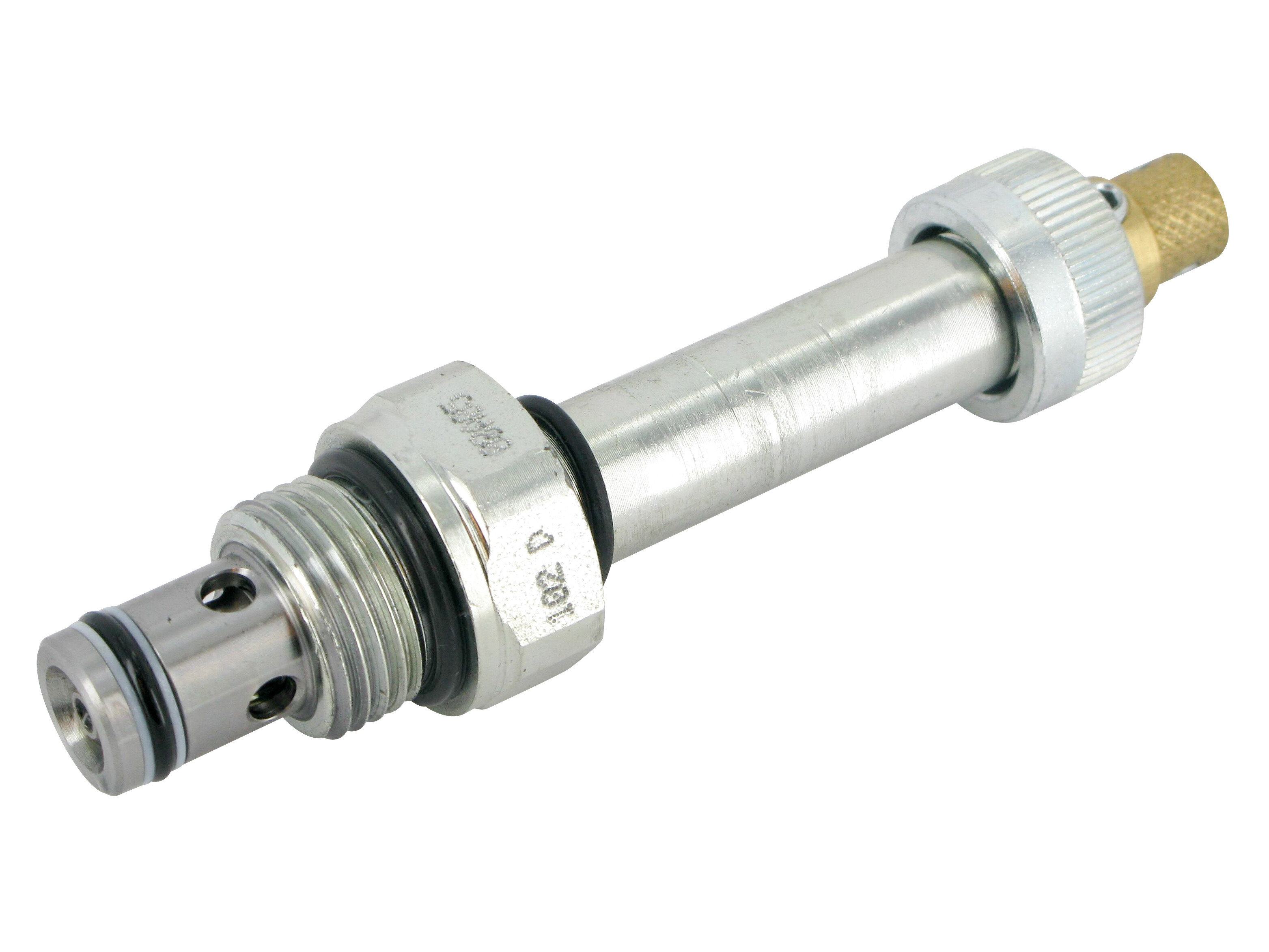

CED08-A05-00-ON VNF 2/2 valve HPI cav. 3/4"-16
CED08-A05-00-ON VNF 2/2 valve HPI cav. 3/4"-16
Partnumber:
T301035
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Manual override, Solenoid
Brand Name
Jtekt-HPI
Cavity
SAE J475 2w
Contamination level max.
-/16/13 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
18 lpm
Manual operated
Yes
Model code
CED08-A05-00-ON
Number of ways/positions
2/2
Oil viscocity recommended
8 - 450 cSt
Pressure max.
300 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
20 Nm
Valve type
NC - Normally closed
Package size
0 pcs
Barcode
5704334138129
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
FRA
Intrastat code
84136020
CED08-A05-00-ON VNF 2/2 valve HPI cav. 3/4"-16
