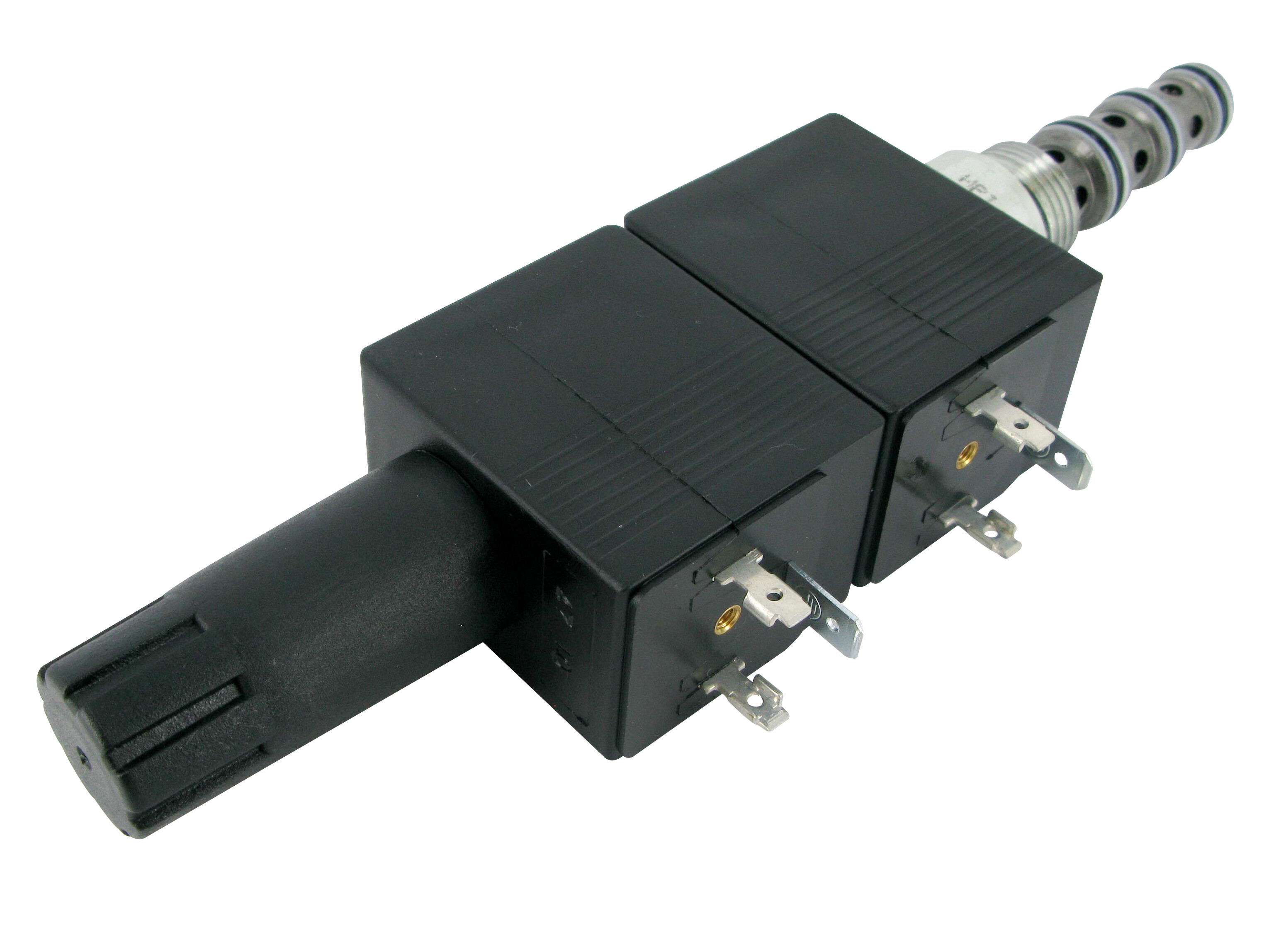

CED08E75B8ADN 1G 4/3 valve incl. 2x24vdc solenoid T10125

CED08E75B8ADN 1G 4/3 valve incl. 2x24vdc solenoid T10125

CED08E75B8ADN 1G 4/3 valve incl. 2x24vdc solenoid T10125

CED08E75B8ADN 1G 4/3 valve incl. 2x24vdc solenoid T10125

CED08E75B8ADN 1G 4/3 valve incl. 2x24vdc solenoid T101256 P-A-B-T closed, man. override

Partnumber:

T300756B8A

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Activation

Solenoid

Brand Name

Jtekt-HPI

Cavity

SAE J475 4w

Contamination level max.

-/16/13 - ISO 4406

Filter built-in

No

Flow rate nominal LMin

12 lpm

Manual operated

No

Number of ways/positions

4/3

Oil viscocity recommended

8 - 450 cSt

Pressure max.

300 bar

Sealing material

NBR

Temperature max.

+100 °C

Temperature min.

-40 °C

Torque tightening

20 Nm

Package size

0 pcs

Barcode

5704334234746

Gross weight

0,58 Kg

Net weight

0,58 Kg

Country of origin

FRA

Intrastat code

84136020

Product information

CED08E75B8ADN 1G 4/3 valve incl. 2x24vdc solenoid T101256 P-A-B-T closed, man. override
