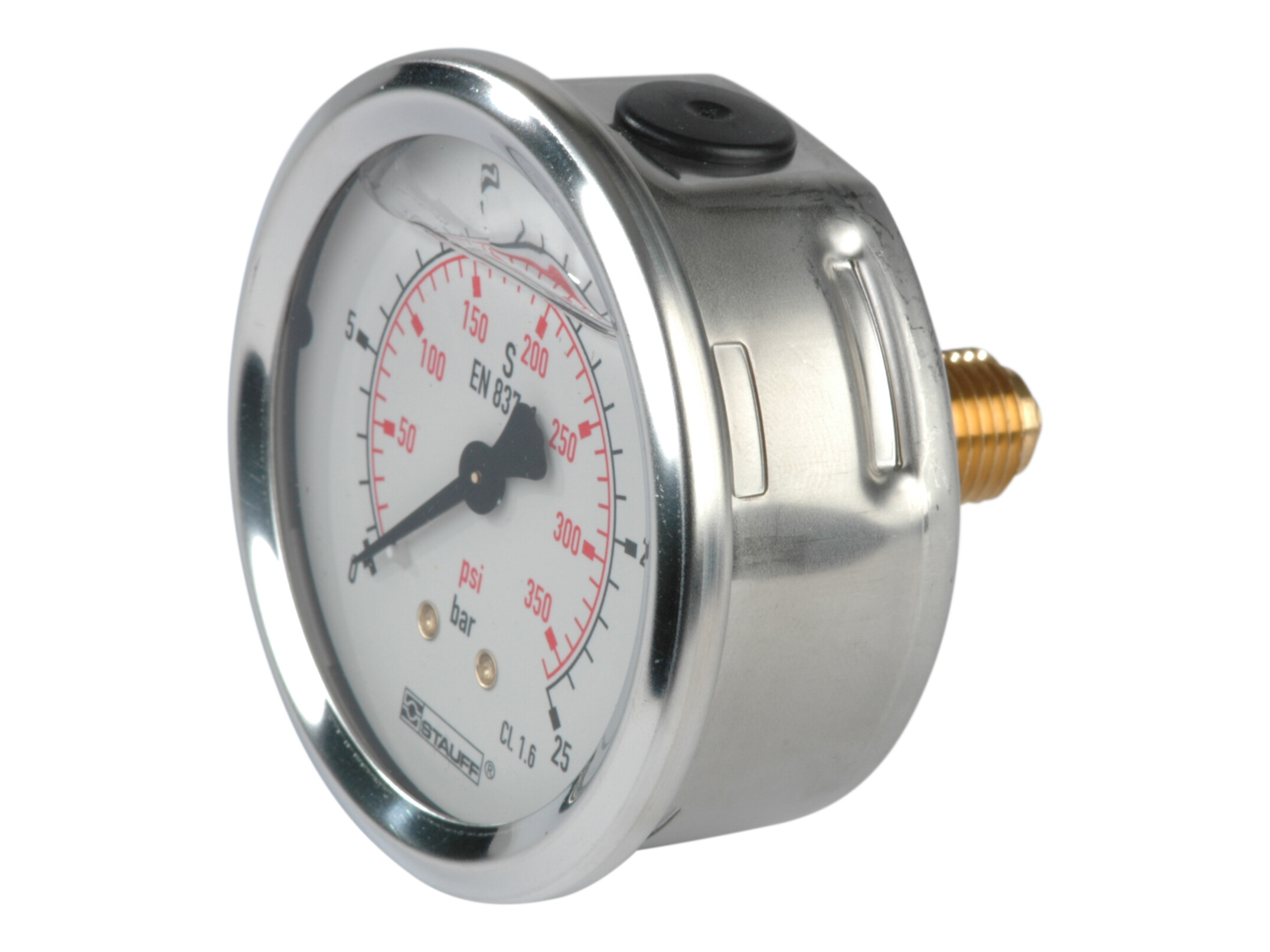

1/4" pressure gauge. Rear mount. Scale 0-25 bar

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.

Varenummer:
SPG063-025RB

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Mounting kit ø63 pressure gauge
Varenummer: SPG063-U
Diameter
63 mm

Gevind
G 1/4 BSP

Glastype
Acrylic glass

Materiale
Stainless steel

Materialekvalitet
1.4301 / AISI304

Model kode
SPG-063-00025-01-P-B04

Mærke navn
Stauff

Portplacering
Rear

Temperatur maks.
+60 °C

Temperatur min.
-20 °C

Trykindstilling maks.
25 bar

Trykindstilling min.
0 bar

Trykmåling nøjagtighed
±1,6% FS
Pakke str.
0 pcs

Stregkode
5704295677910

Brutto vægt
0,23 Kg

Netto vægt
0,23 Kg

Oprindelsesland
DEU

Intrastat varekode
90262040

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
