Weld plate - DIN 3 Heavy - Stainless

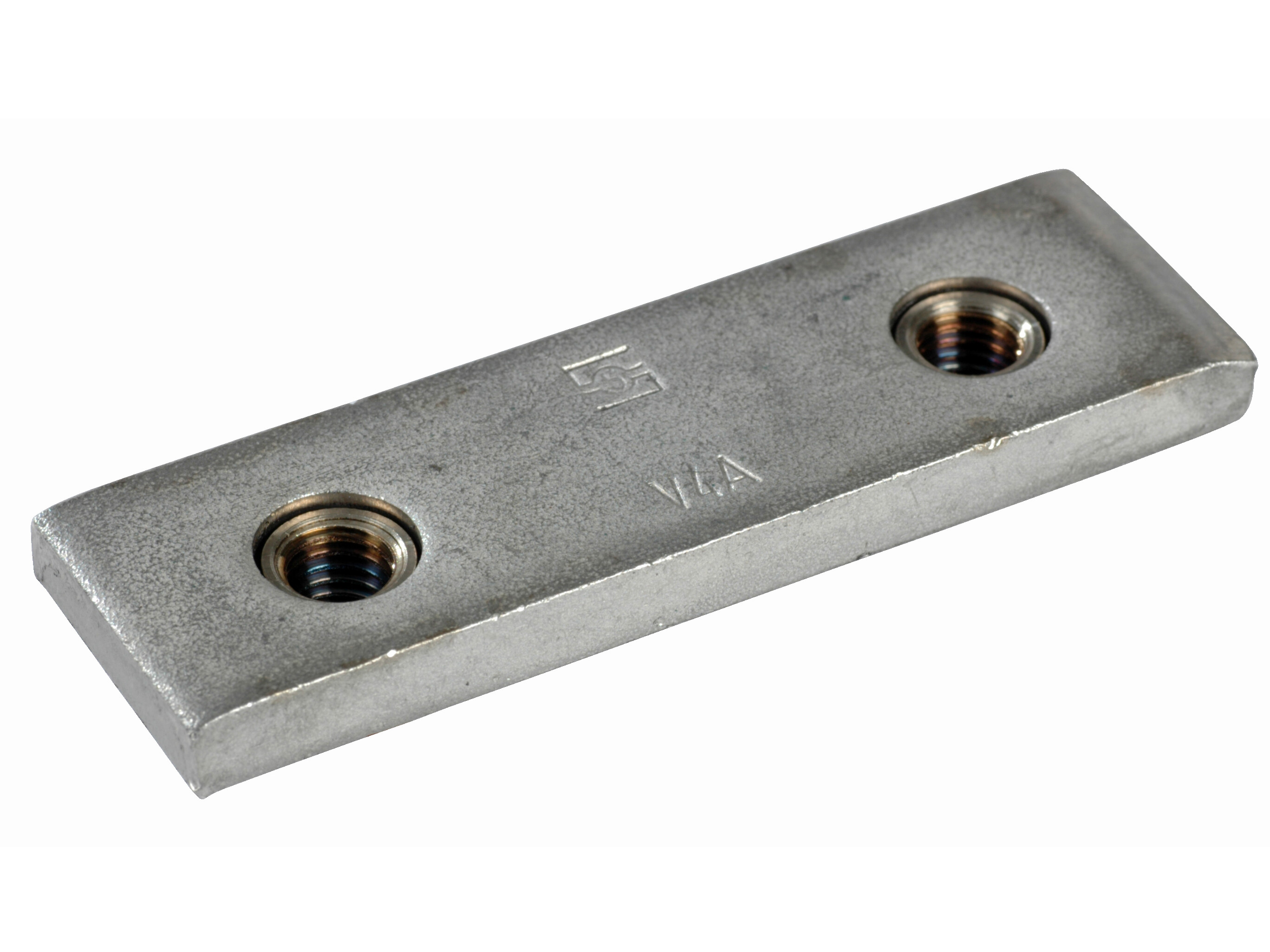

Weld plate for mounting a single heavy-series pipe clamp to a structure by welding. The plate provides a defined clamp base with a threaded mounting point and a centred clearance hole, supporting stable pipe and hose routing in hydraulic installations.
Designed for DIN size 3 heavy series according to DIN 3015 Part 2. The metric thread and plate dimensions are key selection points to match the clamp group and the intended mounting layout.
Typical Applications
- Weld-on mounting base for single pipe clamps in hydraulic pipe and hose installations
- Securing and guiding hydraulic lines on frames, brackets, and machine structures
Partnumber:
SP5S/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
B
30 mm
Brand Name
Stauff
D1
18 mm
DIN size
3
G
M10
Group Stauff
5S
H
8 mm
L1
100 mm
L2
60 mm
Length
100 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
SPAL-5S-W5
Number of clamps
1
S
8 mm
Standard DIN
DIN 3015 part 2
Width
30 mm
Package size
0 pcs
Barcode
5704295369907
Gross weight
0,20 Kg
Net weight
0,20 Kg
Country of origin
DEU
Intrastat code
39259010
Weld plate for mounting a single heavy-series pipe clamp to a structure by welding. The plate provides a defined clamp base with a threaded mounting point and a centred clearance hole, supporting stable pipe and hose routing in hydraulic installations.
Designed for DIN size 3 heavy series according to DIN 3015 Part 2. The metric thread and plate dimensions are key selection points to match the clamp group and the intended mounting layout.
Typical Applications
- Weld-on mounting base for single pipe clamps in hydraulic pipe and hose installations
- Securing and guiding hydraulic lines on frames, brackets, and machine structures
