Weld plate - DIN 2 Twin - Stainless

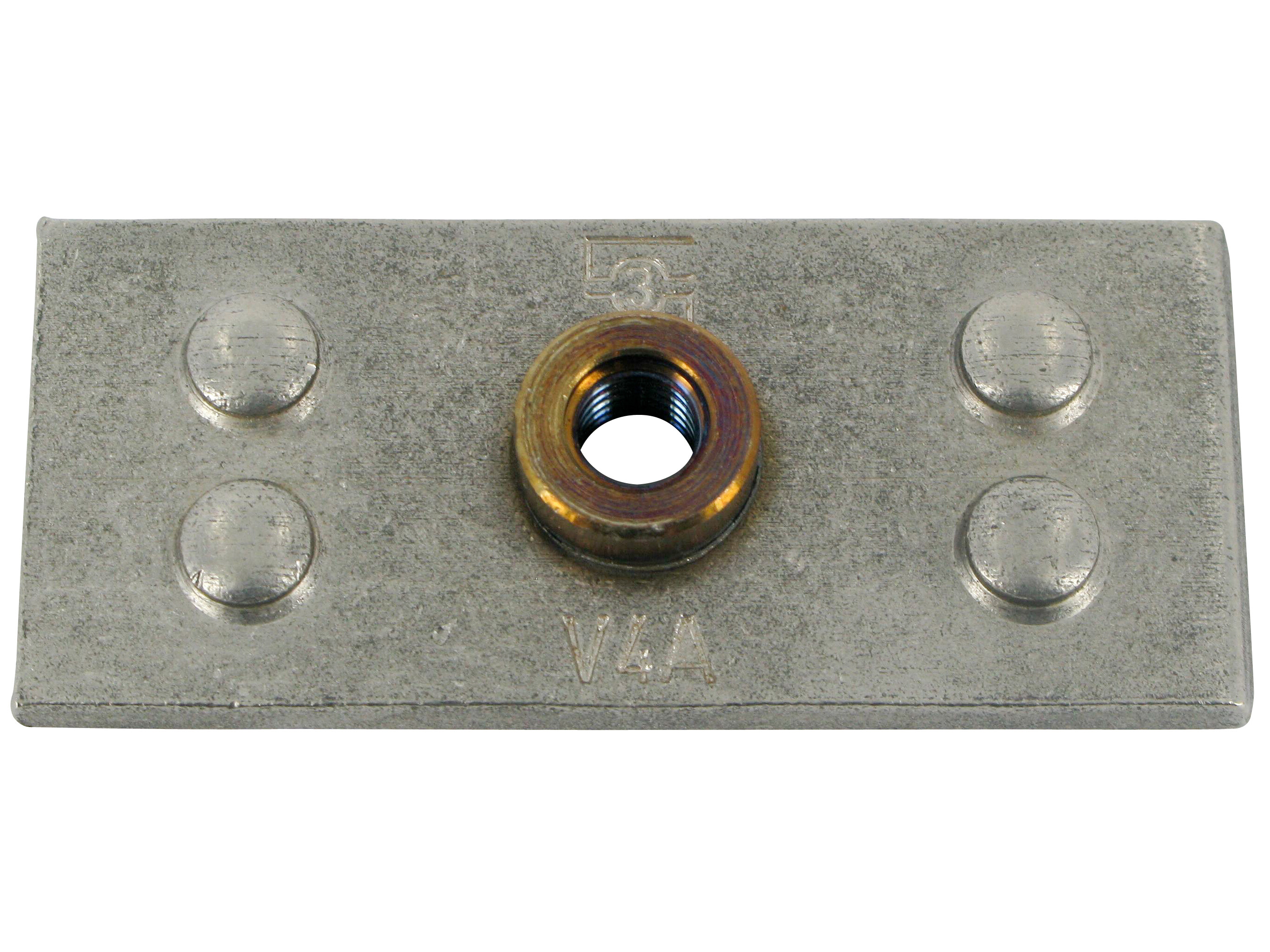

Weld plate for mounting a twin pipe clamp arrangement according to DIN 3015 Part 3. The plate is welded to the structure and provides a fixed threaded connection point for the clamp assembly.
Supplied in stainless steel material quality 1.4571 / AISI316Ti with an M8 thread. The plate dimensions define the welding footprint and the alignment of the clamp mounting point.
Typical Applications
- Weld-on mounting point for DIN 3015 Part 3 twin pipe clamp assemblies
- Pipe, tube and hose routing where a rigid, welded clamp base is required
Artikelnummer:
SP2D/71
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Antal rörhållare
1
B
30 mm
Bredd
30 mm
D
14 mm
DIN storlek
2
G
M8
Grupp Stauff
2D
Gänga
M8
H
6 mm
L
55 mm
Längd
55 mm
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
SP-2D-M-W5
Märke namn
Stauff
S
5 mm
Standard DIN
DIN 3015 part 3
Tillverkningsmaterial
Stainless steel
Pakke str.
0 pcs
Stregkode
5704295323336
Brutto vægt
0,04 Kg
Netto vægt
0,04 Kg
Oprindelsesland
DEU
Intrastat varekode
39259010
Weld plate for mounting a twin pipe clamp arrangement according to DIN 3015 Part 3. The plate is welded to the structure and provides a fixed threaded connection point for the clamp assembly.
Supplied in stainless steel material quality 1.4571 / AISI316Ti with an M8 thread. The plate dimensions define the welding footprint and the alignment of the clamp mounting point.
Typical Applications
- Weld-on mounting point for DIN 3015 Part 3 twin pipe clamp assemblies
- Pipe, tube and hose routing where a rigid, welded clamp base is required
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
