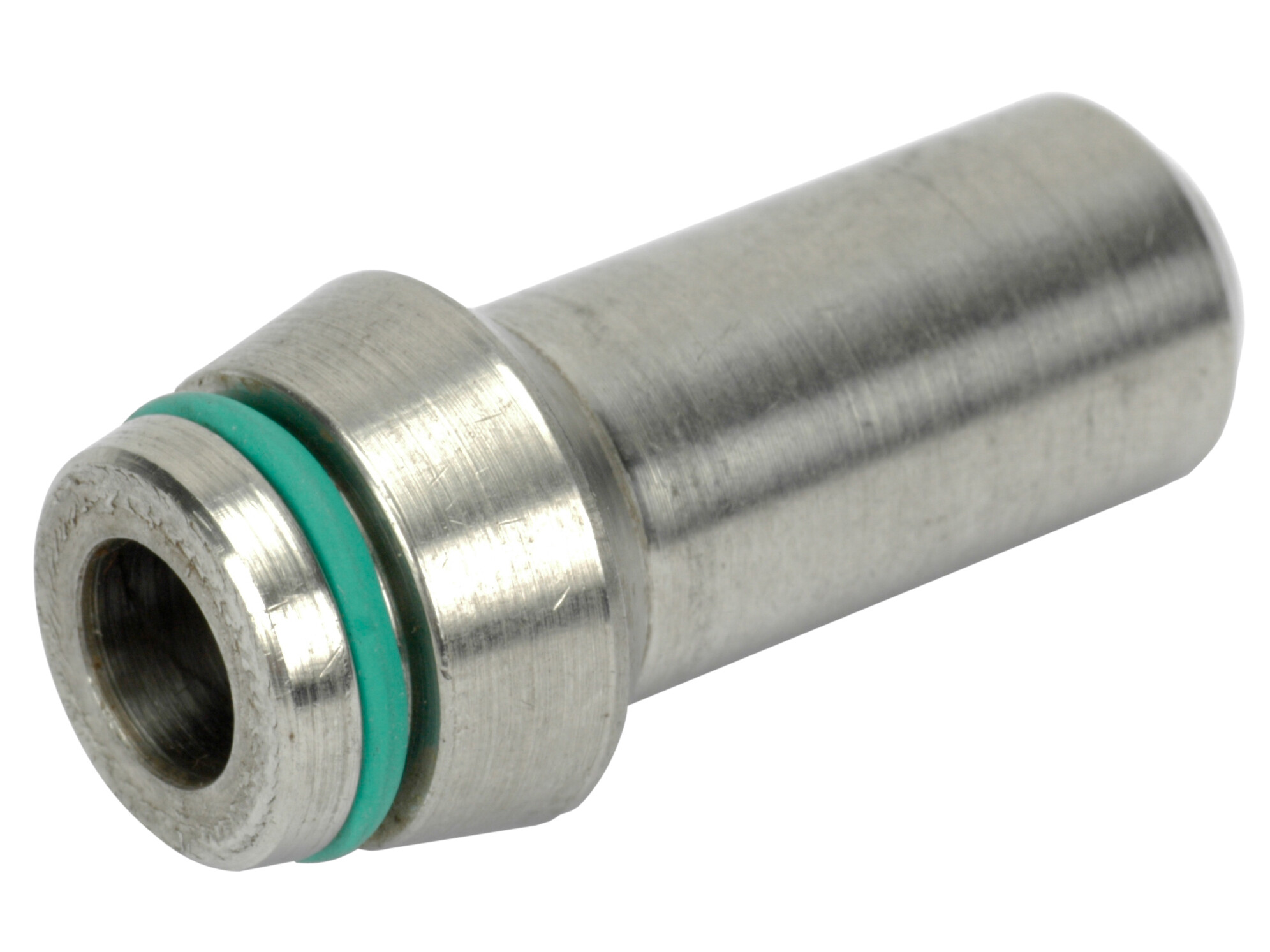

Welding stud fitting - ø20 x 2mm - AISI316
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
SNO20-2/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
Volz
Diameter pipe
20 mm
Dimension D1
20 mm
Dimension D2
16 mm
Dimension L1
44.5 mm
Dimension L2
47.5 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
SKA 20 S x 2
Pressure max.
242 bar
Safety factor
2.5
Sealing material
FKM/FPM (Viton®)
Temperature max.
+200 °C
Temperature min.
-25 °C
Förpackningsstorlek
0 pcs
Streckkod
5704295373980
Bruttovikt
0,07 Kg
Nettovikt
0,07 Kg
Ursprungsland
DEU
Intrastat artikelkod
73072910
Temperature/Pressure reductions:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
