Insert 1/4" - 1/4" BSP nut Japanese
Long elbow insert with nut and BSP female thread. Japanese type.
Connection: BSP female thread in nut, with 30° cone face.
Sealing: Metal against metal (cone).
Partnumber:
P0404NP45
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
I.M.M Hydraulics

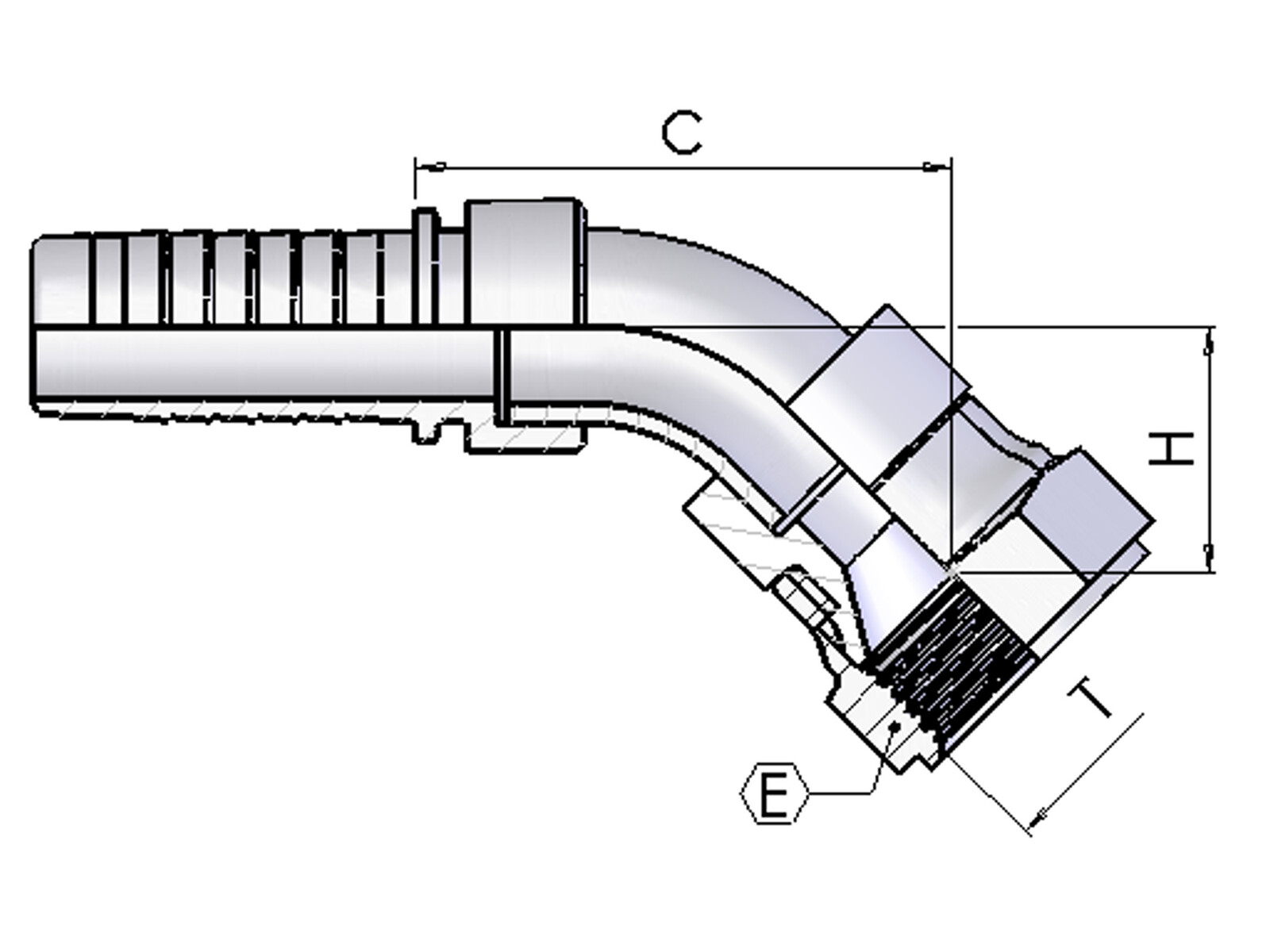

Dimension C
44 mm
Dimension E
19 mm
Dimension H
18 mm
Dimension T
G 1/4 "JIS-G
Hose coupling type
For separate ferrule
Hose size
1/4 "
Material
Steel
Model code
1030S-04-04
Surface treatment
Electro-galvanized / White chromatized
Thread
1/4 "JIS/G
Torque tightening
25 Nm
Package size
0 pcs
Barcode
5704295895406
Gross weight
0,04 Kg
Net weight
0,04 Kg
Country of origin
ITA
Intrastat code
73269098
Long elbow insert with nut and BSP female thread. Japanese type.
Connection: BSP female thread in nut, with 30° cone face.
Sealing: Metal against metal (cone).
