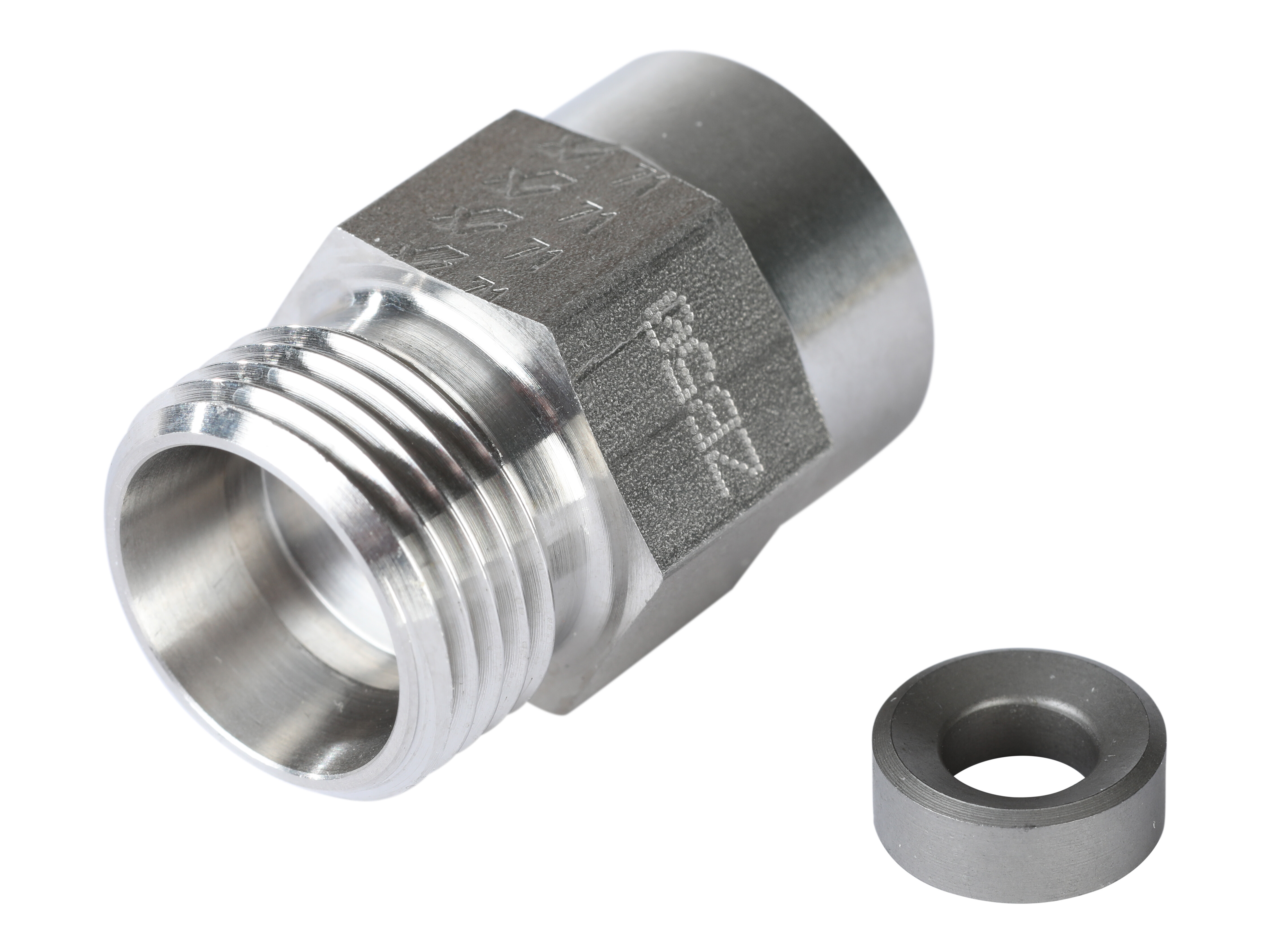

Pressure gauge fitting - ø12L x 1/4" BSP female - AISI316
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
Varenummer:
O12LX/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
D1
12 mm
D2
3,5 mm
Diameter rør
12 mm
Gevind T2
M18x1,5 mm
Gevind indvendig
G 1/4 BSP
Gevind indvendig metrisk
M18x1,5 MM
Gevind udvendig metrisk
M18x1,5
L1
38 mm
L2
30 mm
L3
23 mm
L4
14,5 mm
L5
4,5 mm
Materiale
Acid-resistant steel
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XMAV 12 LR 1/4
Mærke navn
Volz
Overfladebehandling
Uncoated
PN
315 bar
S1
19 mm
S2
22 mm
Serie
L
Sikkerhedsfaktor
4
T1
G 1/4 BSP
T2
M18x1,5
Temperatur maks.
+400 °C
Temperatur min.
-60 °C
Thread T1
G 1/4 BSP
Tryk maks.
315 bar
Vinkel
0 °
d1
12 mm
d2
3,5 mm
Package size
0 pcs
Barcode
5704295771519
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
