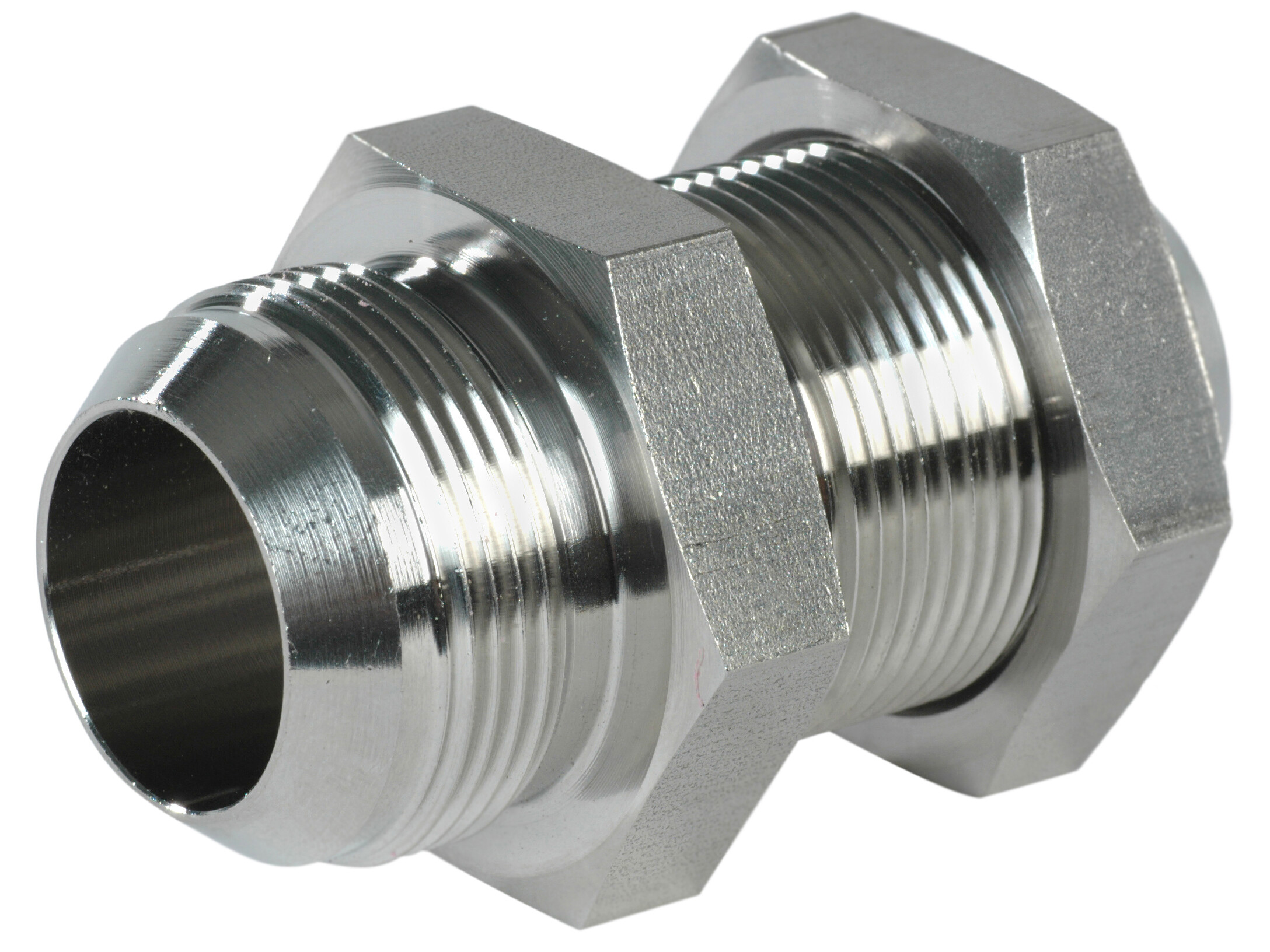

Adaptor AISI316
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
MUP-16/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Hydraspecma
Diameter pipe
16 mm

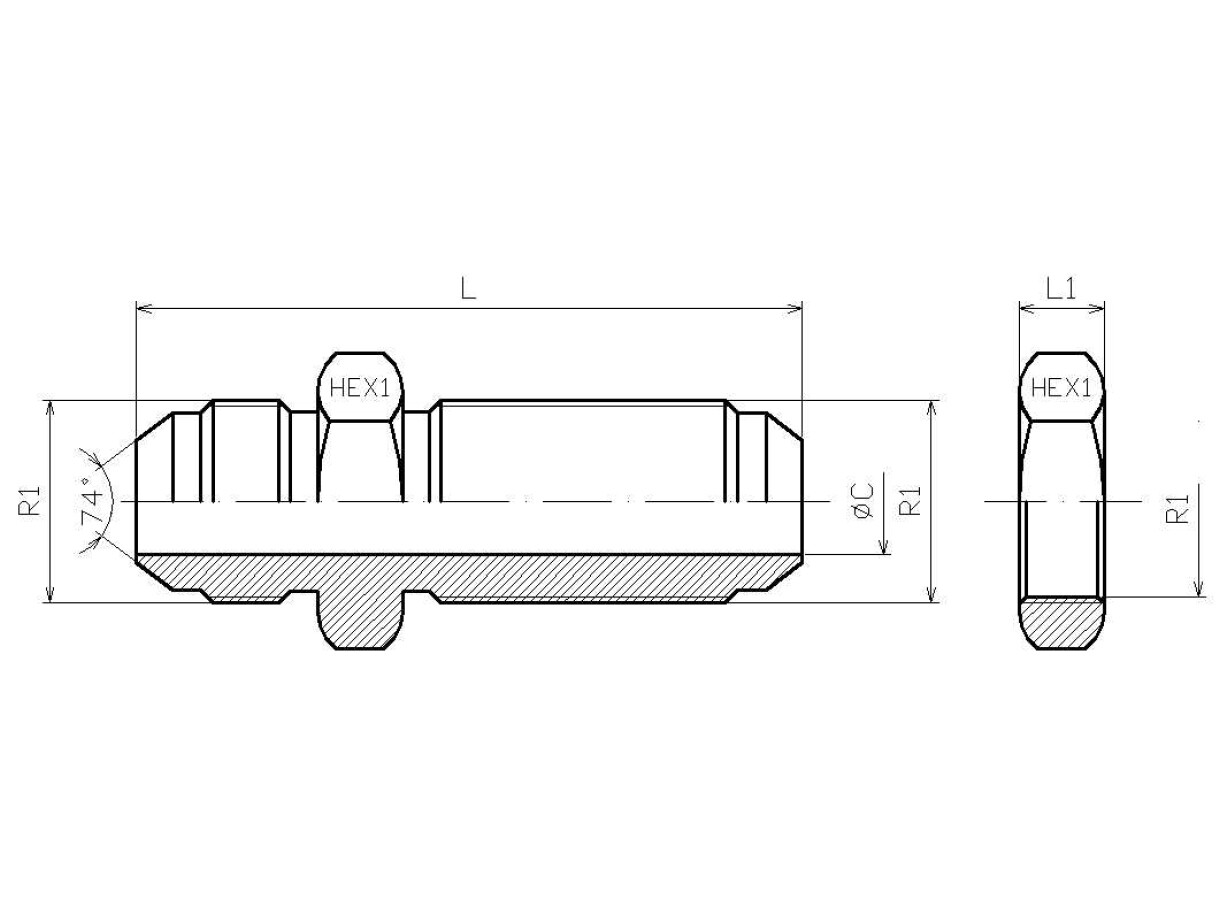

Dimension C
12 mm
Dimension L
69 mm
Dimension L1
9 mm
Material
Acid-resistant steel
Material quality
1.4404 / AISI316L
Pressure max.
600 bar
Thread outer
7/8-14 JIC
Pakke str.
0 pcs
Stregkode
5704295452111
Brutto vægt
0,18 Kg
Netto vægt
0,18 Kg
Oprindelsesland
ESP
Intrastat varekode
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
