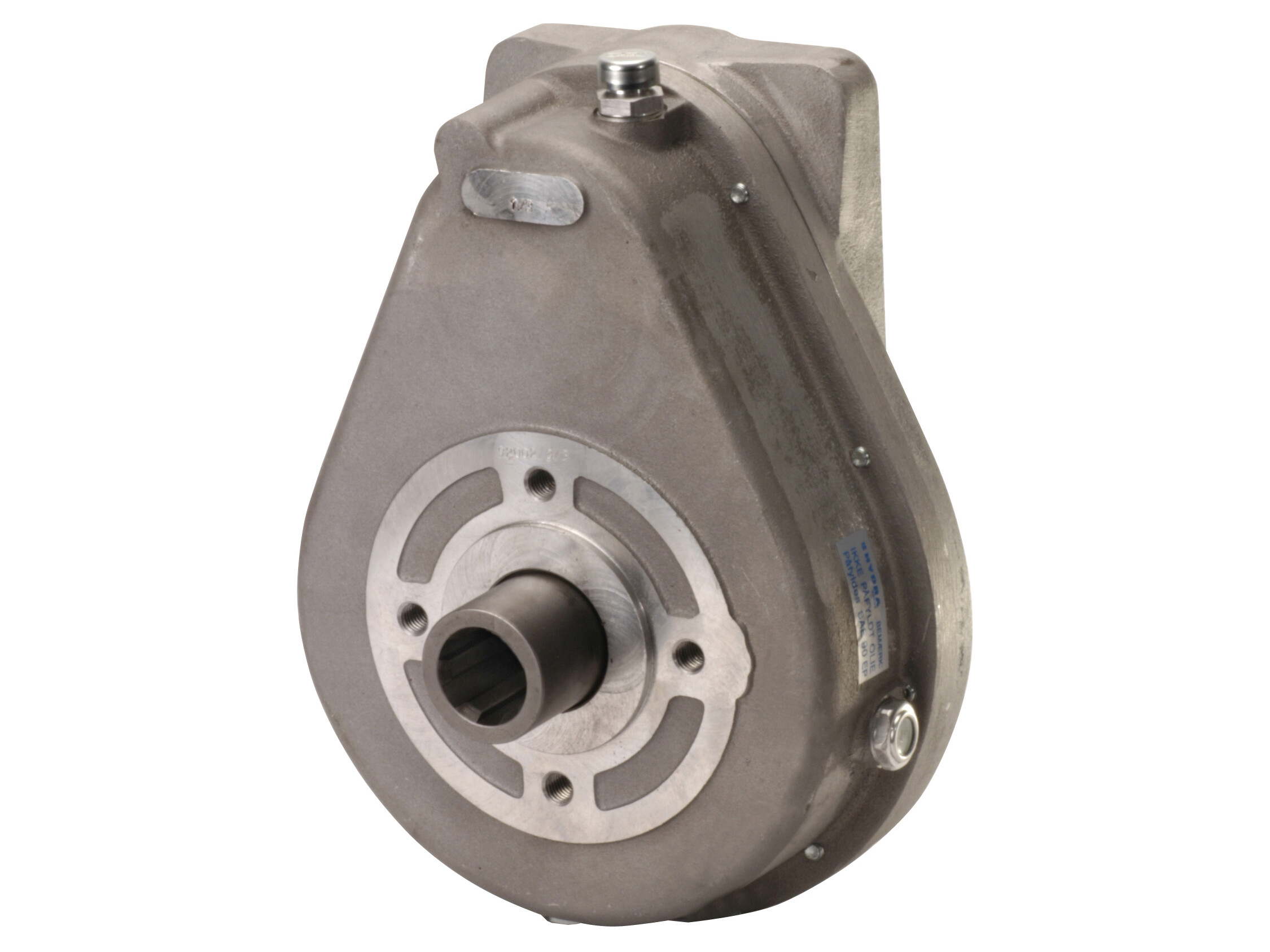

OB RCM gear for gr.3 (1:3,1)

Borelli speed-up gears with female connection for pto-shaft, 1.3/8"- 6 splines.

Spline bushing for gear/pump must be ordered separately.

NB!: The gearboxes are not supplied with gearoil. Gear oil must be filled before bringing the gearbox into use.

Partnumber:

MLT3.5/3-F-3

Package size:

0 pcs

Min. order quantity is:

1 pcs

Spline bushing 20T gr.3 (1:8)

Artikelnummer: 10016L40

Brand Name

Oleodinamica Borelli

Gear ratio

1:3,1

Lock

Oil viscocity recommended

90 cSt

Power max.

40 kW

Pump group

Shaft input

1.3/8" Z6 PTO female

Shaft output

Female spline

Torque input

99 daNm

Förpackningsstorlek

0 pcs

Streckkod

5704295255712

Bruttovikt

13,26 Kg

Nettovikt

13,26 Kg

Ursprungsland

ITA

Intrastat artikelkod

84834029

Borelli speed-up gears with female connection for pto-shaft, 1.3/8"- 6 splines.

Spline bushing for gear/pump must be ordered separately.

NB!: The gearboxes are not supplied with gearoil. Gear oil must be filled before bringing the gearbox into use.
