S220-20-22U adaptor UNF
\ufeff
-

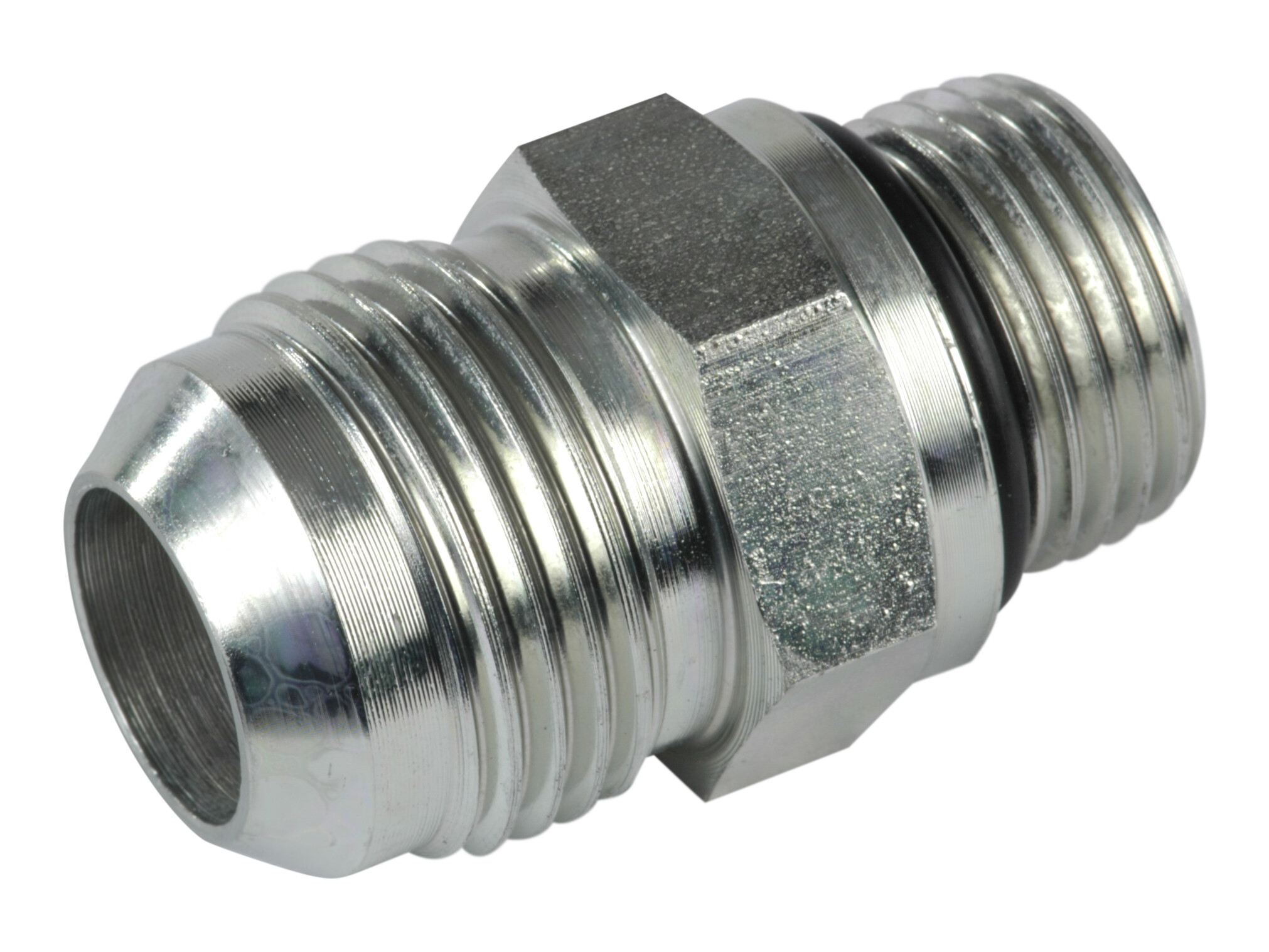

JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
M-20-7/8
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
47 mm
Angle
0 °
B
22 mm
Brand Name
FOR
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
13 mm
Diameter pipe
20 mm
Dimension F
7/8-14 UNF
J
1.1/16-12 JIC
Material
Steel
Model code
A102012/2022
Pressure max.
300 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
Electro-galvanized / White chromatized
T
20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.1/16-12 JIC
Thread outer
7/8-14 UNF
Pakke str.
0 pcs
Stregkode
5704334308874
Brutto vægt
0,15 Kg
Netto vægt
0,15 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
\ufeff
-
JIC 37° male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
