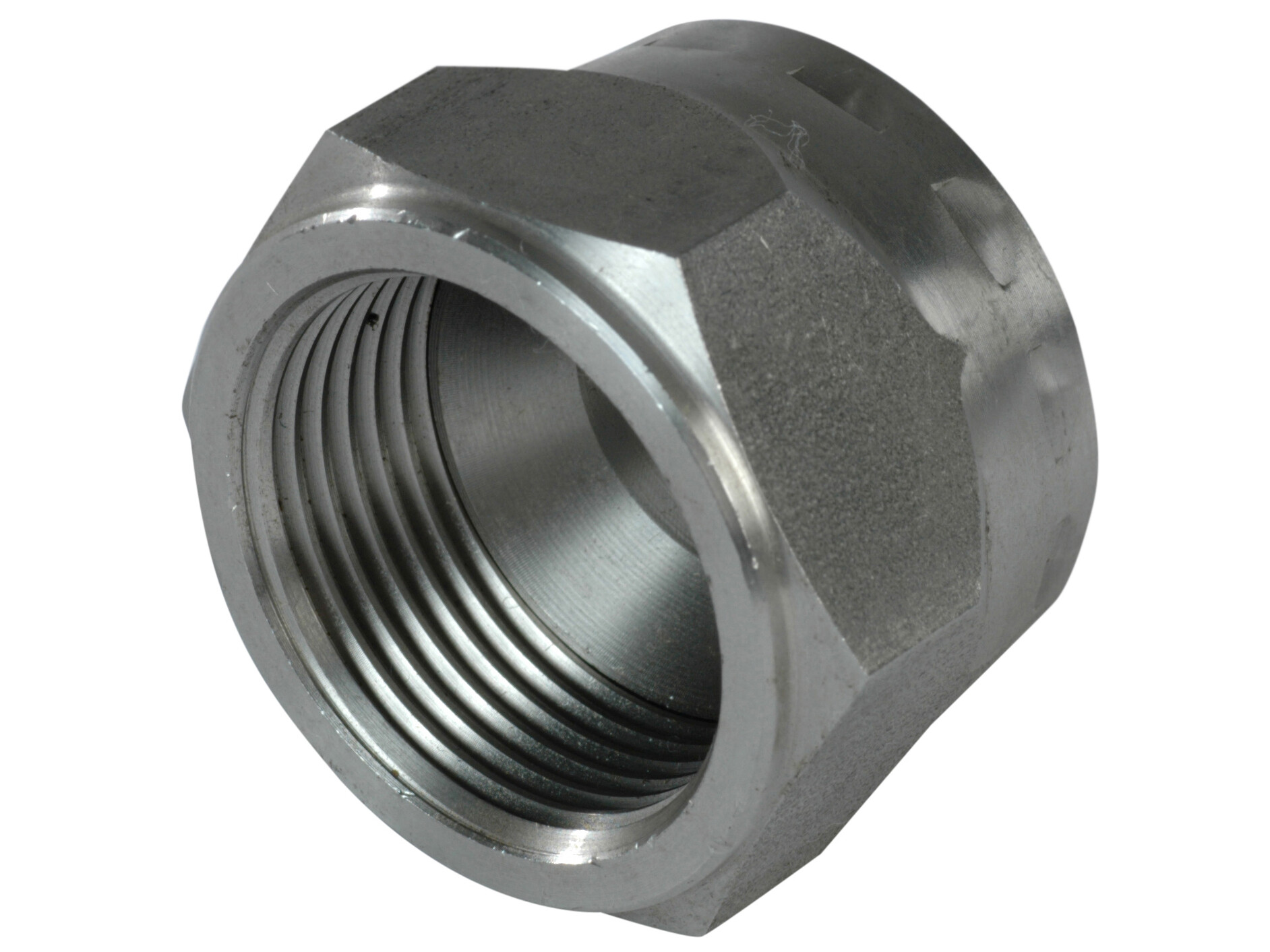

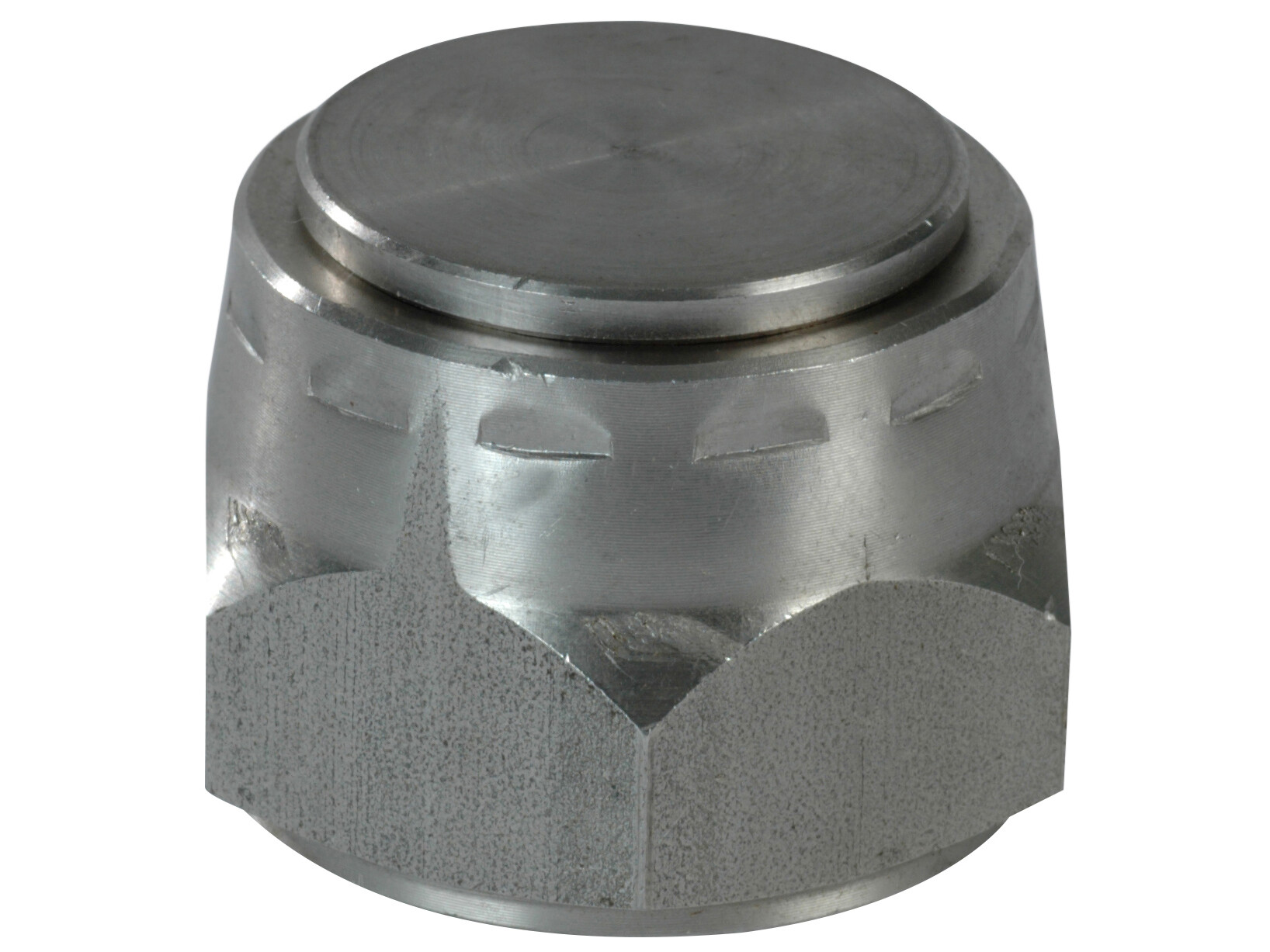

End cap 10mm AISI316

Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.

Varenummer:
JF-10/71

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Back-up ring 10mm AISI316
Varenummer: B-10/71
Nut 10mm AISI316
Varenummer: J-10/71
Brand Name
Hydraspecma

Diameter pipe
10 mm

Material
Stainless steel

Material quality
1.4404 / AISI316L

Pressure max.
700 bar

Thread inner
9/16-18 JIC
Pakke str.
0 pcs

Stregkode
5704295687070

Brutto vægt
0,03 Kg

Netto vægt
0,03 Kg

Oprindelsesland
ESP

Intrastat varekode
73072910

Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
