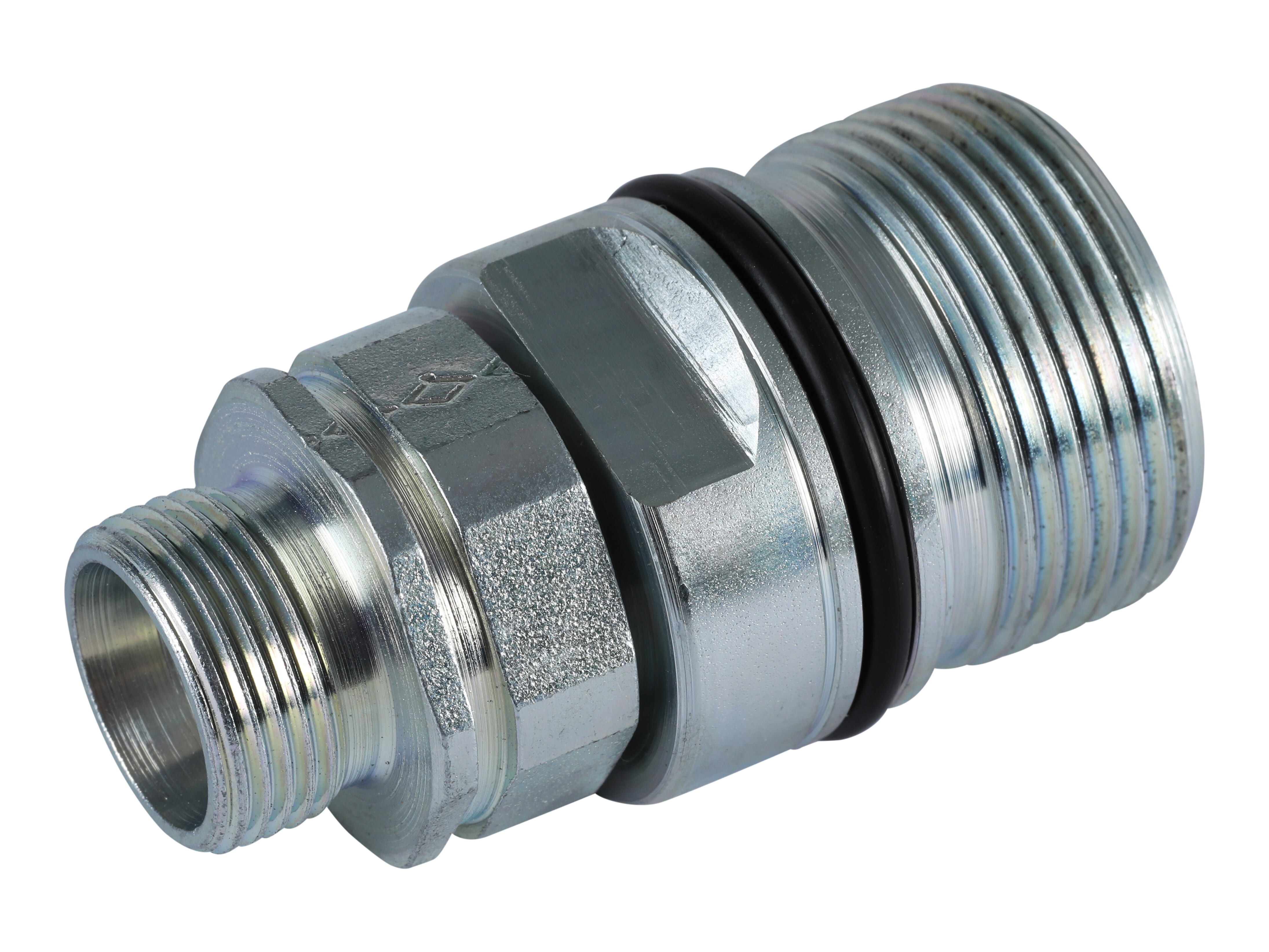

Screw coupling female HS - DN38 - M42x2 (30S)
Standard DIN screw connection is often used for construction machinery.
Can be connected at system pressures up to approx. 50 bar.
Varenummer:
HS25-1-S3042
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
M42x2
Brand Name
Stauff
Connection
Screw
D2
30 mm
Diameter pipe
30 mm
Disconnection
Screw
Field of application
Construction Machinery
Flow rate nominal LMin
220 lpm
ISO size
38
L1
112 mm
L3
20 mm
Material
Steel
Model code
QRC-HS-38-F-30S-BT-W66
Pressure burst min.
1600 bar
Pressure max.
350 bar
Pressurized connection
Male Tip/Female Body up to 33% of the Working Pressure with Tools
SW
55, 65 mm
Sealing material
NBR
Series
S
Size
1.1/2 "
Spillage
52,3 ml
Standard ISO
ISO 14541
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3861
Thread outer metric
M42x2, M70x3
Pakke str.
0 pcs
Stregkode
5704295238326
Brutto vægt
1,56 Kg
Netto vægt
1,56 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Standard DIN screw connection is often used for construction machinery.
Can be connected at system pressures up to approx. 50 bar.
