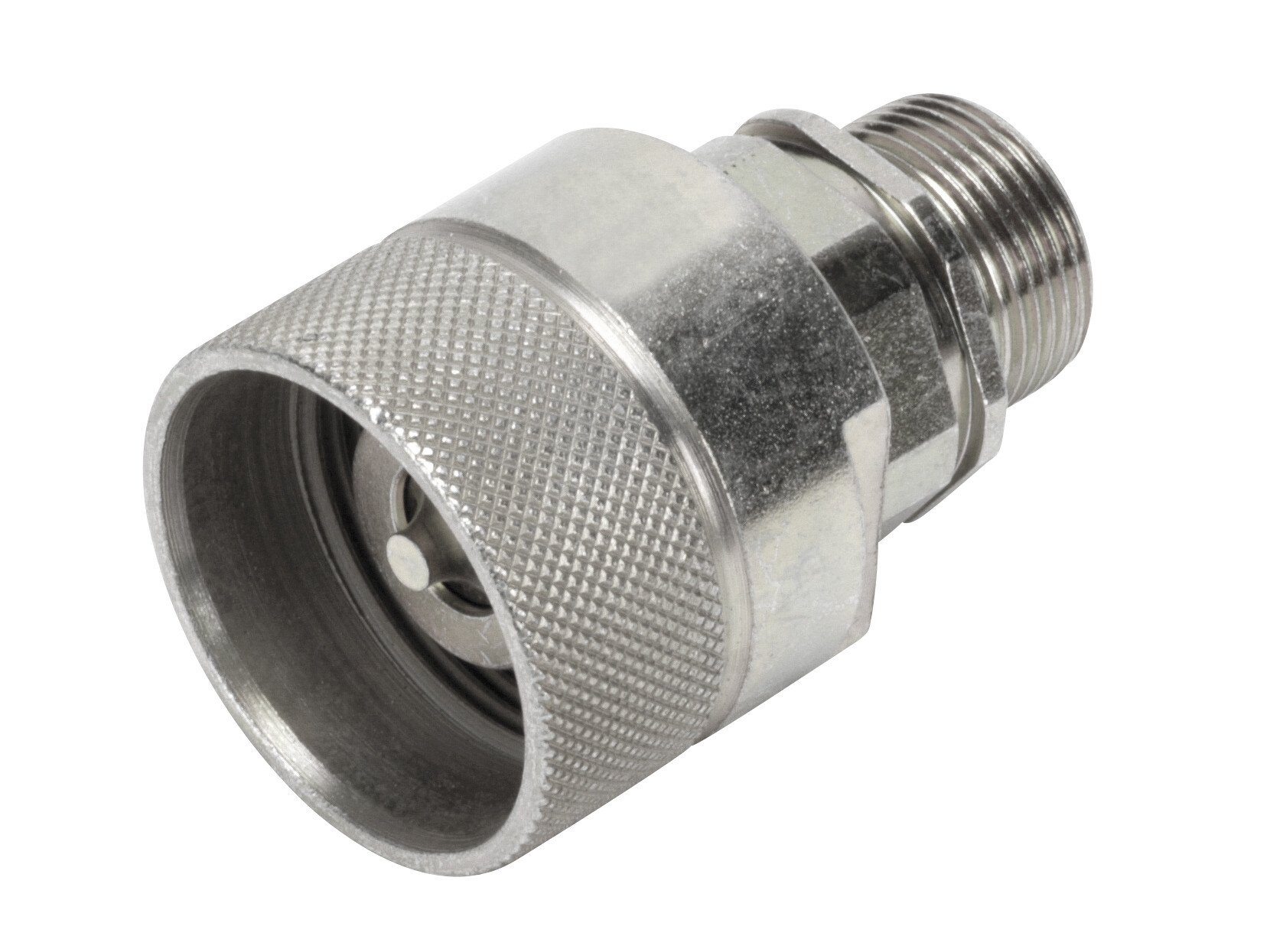

Screw coupling male HS - DN12,5 - M24x1.5 (16S)
Standard DIN-coupling often used on mobile-cranes and within industry.
Can be connected by hand up till an approx. pressure of 50 bar.
Partnumber:
HS10-2-S1624
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
M24x1,5
Brand Name
Stauff
Connection
Screw
D2
16 mm
Diameter pipe
16 mm
Disconnection
Screw
Field of application
Construction Machinery
Flow rate nominal LMin
80 lpm
ISO size
12.5
L2
65 mm
L3
14 mm
Material
Steel
Model code
QRC-HS-12-M-16S-B-W66
Pressure burst min.
1200 bar
Pressure max.
400 bar
Pressurized connection
Male Tip/Female Body up to 33% of the Working Pressure with Tools
SW
30, 36 mm
Sealing material
NBR
Series
S
Size
1/2 "
Spillage
3,1 ml
Standard ISO
ISO 14541
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread DIN standard
DIN 3861
Thread outer metric
M24x1,5
Pakke str.
0 pcs
Stregkode
5704295237466
Brutto vægt
0,26 Kg
Netto vægt
0,26 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
Can be connected by hand up till an approx. pressure of 50 bar.
