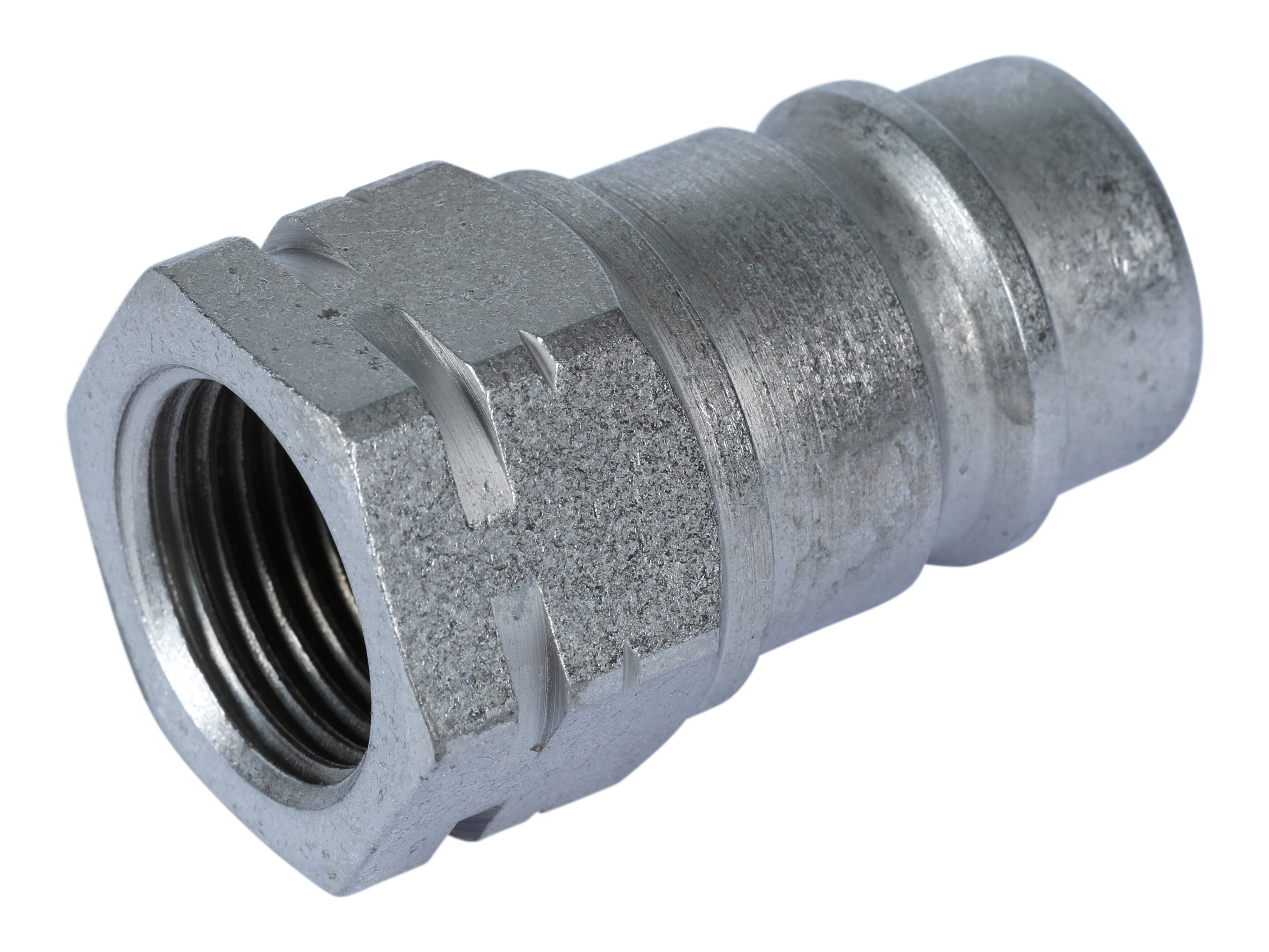

Coupling male HP (ISO-A) - DN12 - 1/2"BSP female
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Partnumber:
HP10-2-IGF08
Package size:
0 pcs
Min. order quantity is:
1 pcs
Dimension C
48 mm
Dimension E
G 1/2 BSP
Dimension H
20.6 mm
Dimension Y
27 mm
Flödeshastighet nominell LMin
100 lpm
Gänga inv.
G 1/2 BSP
ISO storlek
12.5
Modell kod
QRC-HP-12-M-G08-B-W3
Märke namn
Stauff
Packningsmaterial
NBR
Standard ISO
ISO 7241-1-A
Storlek
1/2 "
Temperatur max.
+100 °C
Temperatur min.
-20 °C
Tryck max.
250 bar
Package size
0 pcs
Barcode
5704295235240
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
DEU
Intrastat code
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
