1" Insert - 1.7/16"-12 ORFS female - 90°
Connection: Female SAE flat face O ring swivel.
Sealing: O-ring against metal.
Varenummer:
GS1616FF90
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
90 °
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117

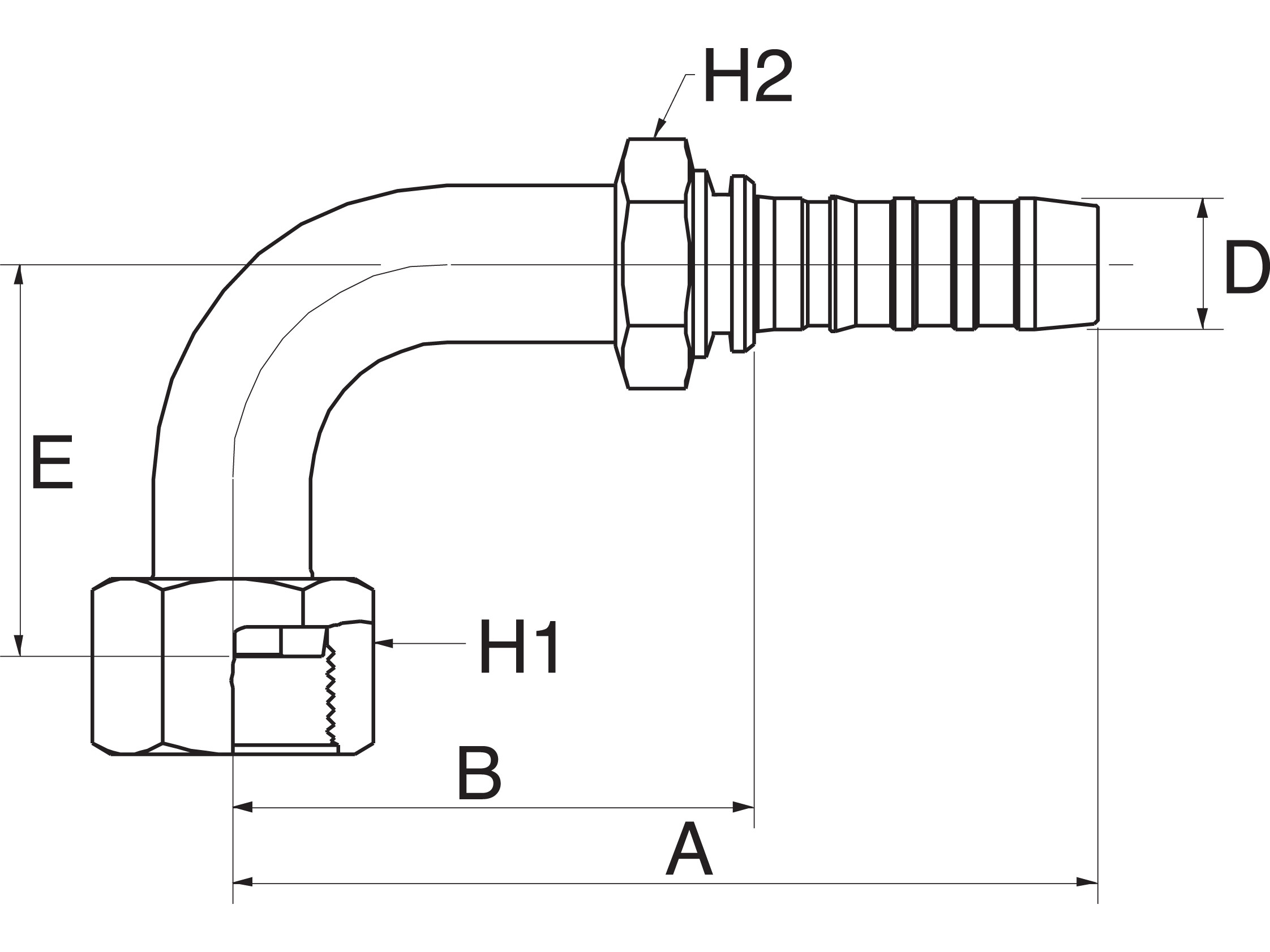

Dimension A
144 mm
Dimension B
87.6 mm
Dimension D
1 "
Dimension E
71 mm
Dimension H1
41 mm
Dimension H2
41 mm
Hose coupling type
For separate ferrule
Hose size
1 "
Material
Steel
Model code
16GS-16FFORX90M
REACH compliant
Yes
RoHs compliant
Yes
Surface treatment
Zinc-plated
Thread
1.7/16-12 ORFS
Torque tightening
125 - 156 Nm
Package size
0 pcs
Barcode
5412571551372
Gross weight
0,67 Kg
Net weight
0,67 Kg
Country of origin
USA
Intrastat code
73269098
Connection: Female SAE flat face O ring swivel.
Sealing: O-ring against metal.
