    • Flange clamp 1" SAE3000 - M12 bolt thread

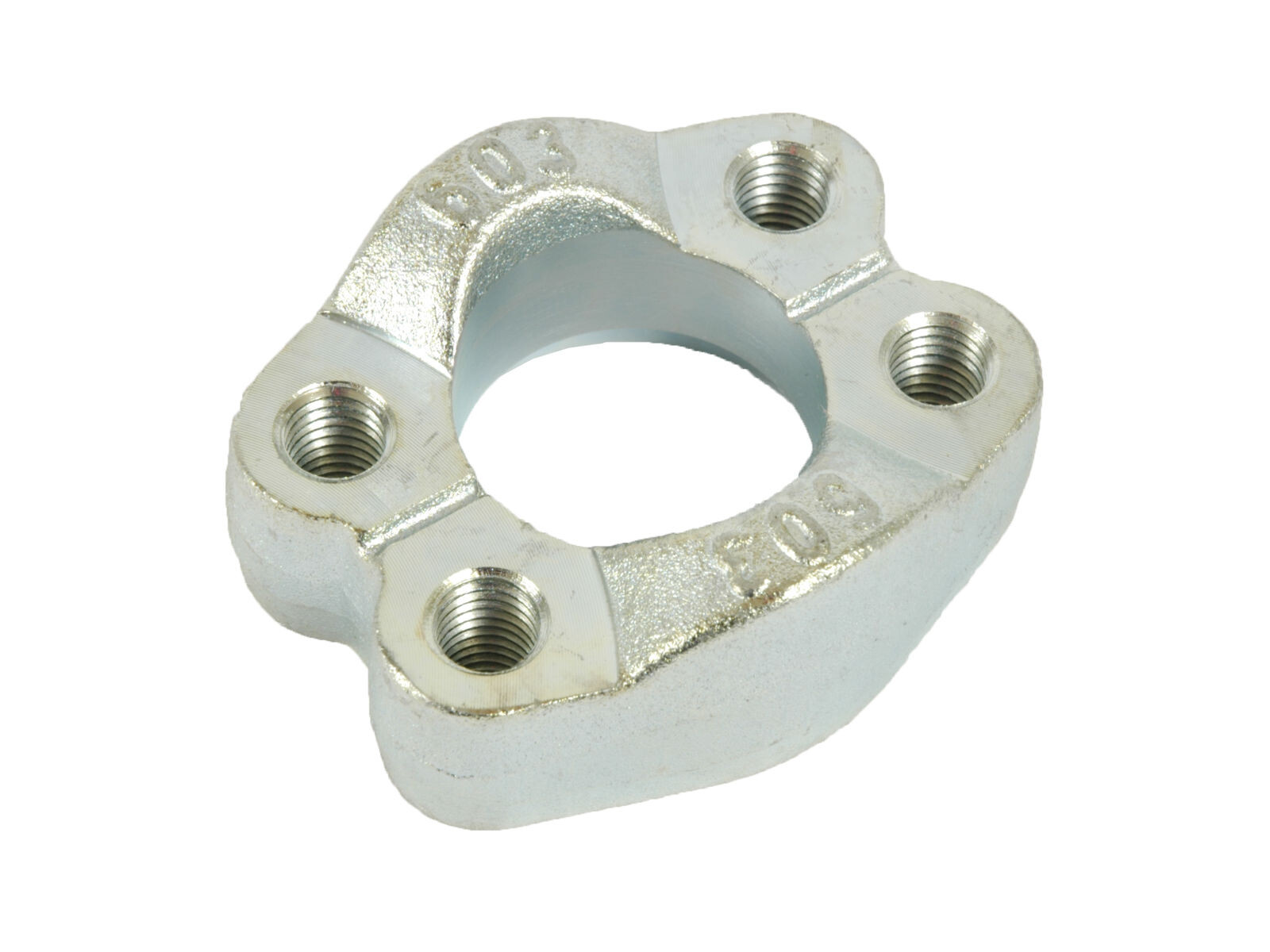

    Flange clamp 1" SAE3000 - M12 bolt thread

    Flange clamp 1" SAE3000 - M12 bolt thread

    Artikelnummer:
    GFSI603
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    O-ring 90S
    Varenummer: 32.93X3.53S
    Brand Name
    Havit
    Corrosion resistance
    480 hours salt spray DIN EN 9227
    Diameter flange
    47.6 mm
    Dimension C
    57.2 mm
    Dimension E
    27.8 mm
    Flange
    1 "
    Flange SAE/DIN
    6000 PSI
    Material
    Steel
    O-ring
    32.93X3.53 mm
    Pressure max.
    420 bar
    Shore
    90
    Standard ISO
    ISO 6162-2
    Standard SAE
    SAE J518 Code 62
    Surface treatment
    Zinc-Nickel plated
    Temperature max.
    +90 °C
    Temperature min.
    -40 °C
    Thread of bolt metric
    M12
    Pakke str.
    0 pcs
    Stregkode
    5704334052364
    Brutto vægt
    2,10 Kg
    Netto vægt
    2,10 Kg
    Oprindelsesland
    DEU
    Intrastat varekode
    73079100

    Flange clamp 1" SAE3000 - M12 bolt thread

    Technical data
