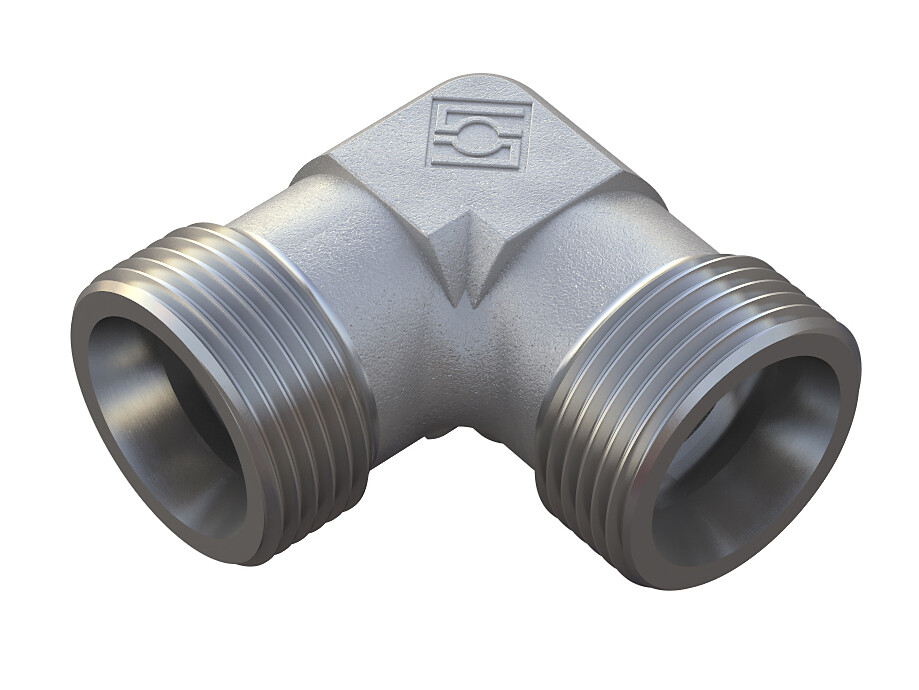

Elbow - 90° - ø8S FI-W-08S-W3
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
FXW08S
Package size:
1 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
8 mm
Dimension D1
8 mm
Dimension D2
5 mm
Dimension L
24 mm
Dimension L1
32 mm
Dimension L2
17 mm
Dimension S1
14 mm
Dimension S2
19 mm
Material
Steel
Model code
FI-W-08S-W3
Pressure max.
800 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer metric
M16x1,5
Package size
1 pcs
Barcode
5704334723424
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Note: Opening 3D files requires a program that supports the file format
